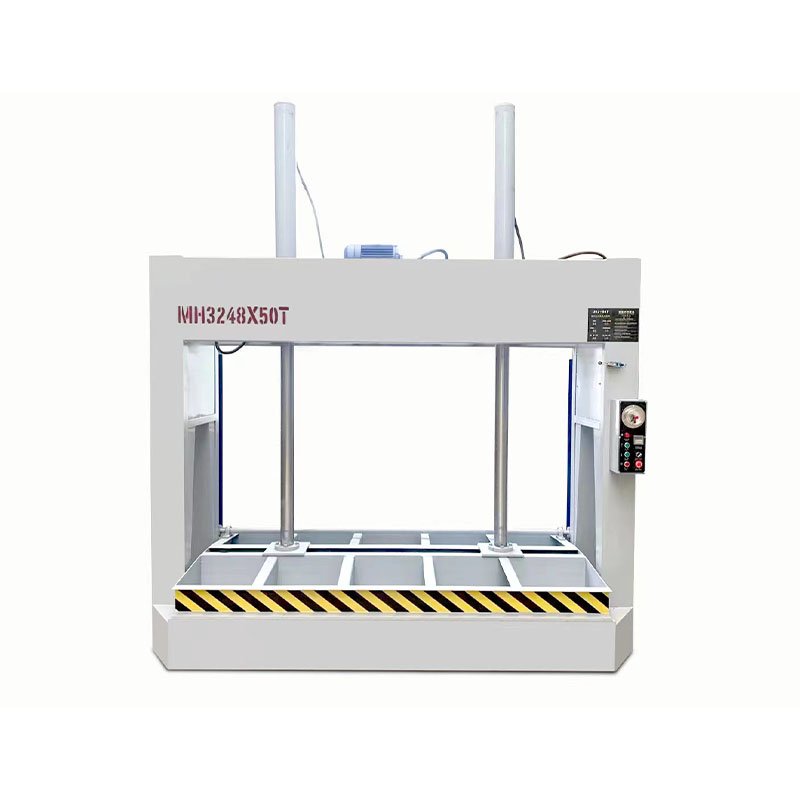

Cold Press Machine wood door press machine
Model: 2500*1250*1000mm
Platen size：2500*1250
Maximum pressure: 50T
Effective power：4kw
Installation stroke: 1300mm
Upper and lower table: 14, 12~13 after gantry milling
Overall dimension: 2910*1250*2400mm
Net weight: about 1700kg
Different models can be customized
Inquire now
+
Inquiry
Product Details
Two cylinder 50T cold press
| Mesa | 1.25*2.5m | 1.25*2.5m | 1.25*2.5m |
| Storke | 1m | 1.3m | 1.5m |
| Dimensions | 1.25*2.95*2.25m | 1.25*2.95*2.55m | 1.25*2.95*2.75m |
| Motor Power | 4kw/5.5kw | 4kw/5.5kw | 4kw/5.5kw |
| Maximum platen thickness | 0.98m | 1.28m | 1.48m |
| Weight | 1.9t | 2t | 2.1t |
Two cylinder 50T cold press
| Mesa | 1.25*3m | 1.25*3m | 1.25*3m |
| Storke | 1m | 1.3m | 1.5m |
| Dimensions | 1.25*3.45*2.25m | 1.25*3.45*2.55m | 1.25*3.45*2.75m |
| Motor Power | 4kw/5.5kw | 4kw/5.5kw | 4kw/5.5kw |
| Maximum platen thickness | 0.98m | 1.28m | 1.48m |
| Weight | 2.4t | 2.5t | 2.6t |
