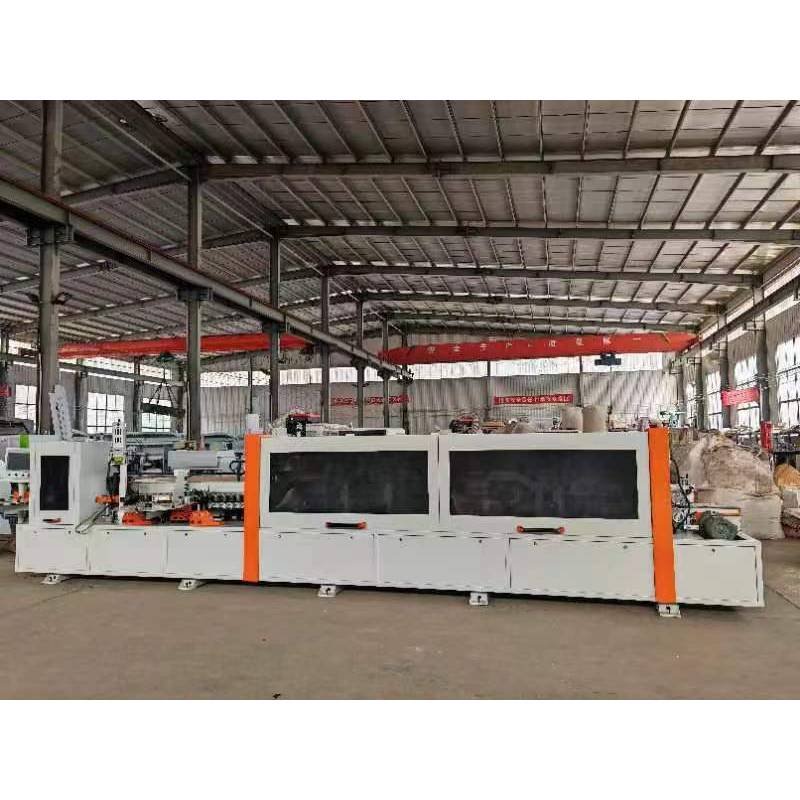

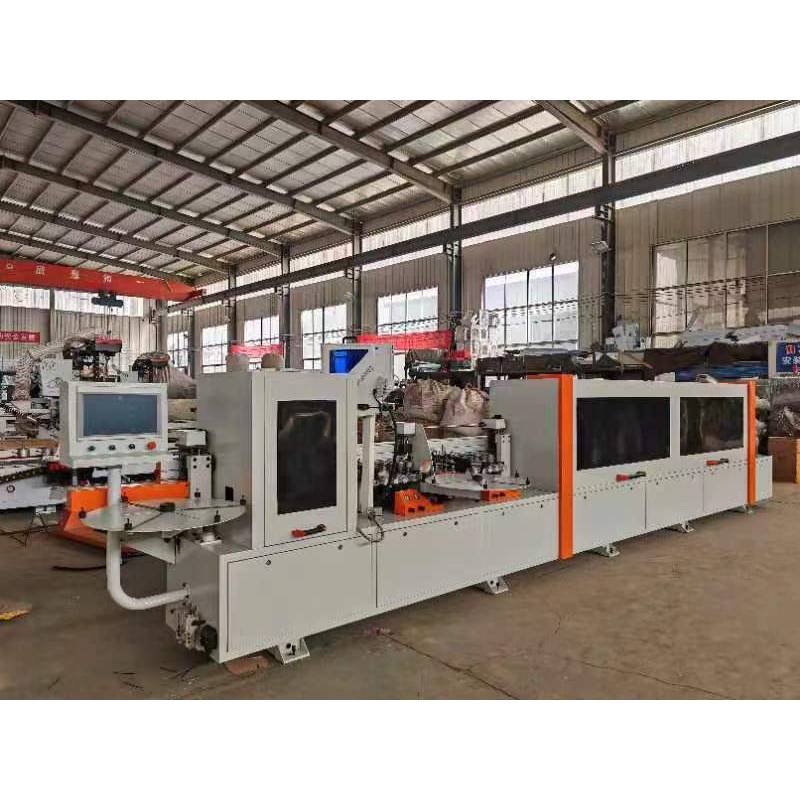

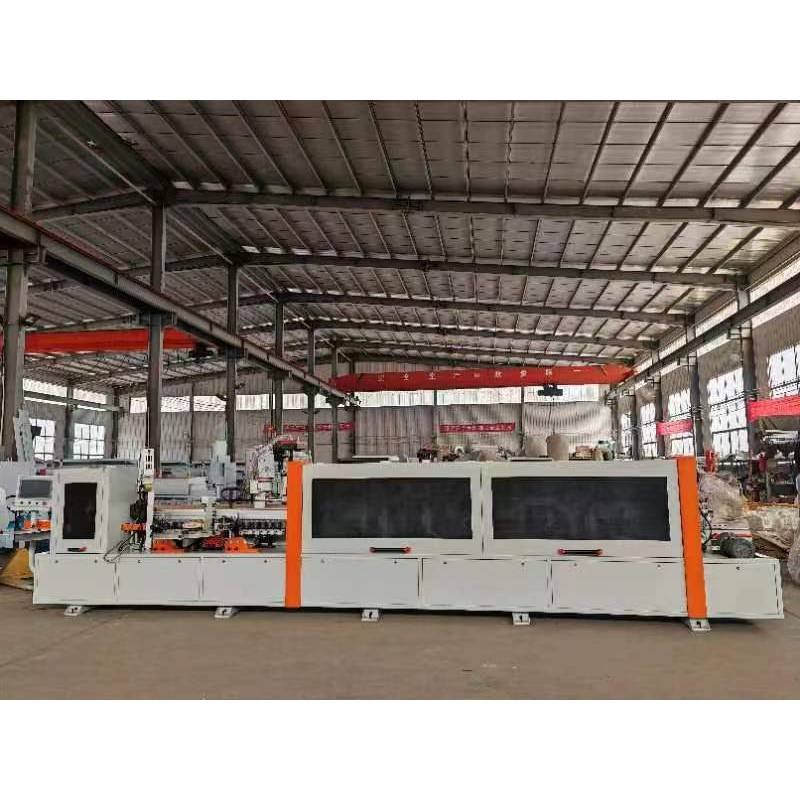

LW-398 Automatic double glue pot high-speed edge banding machine

Product Highlights:

Double-set glue pots, , 8 functions, With pre-milling and corner rounding.

Suitable industry:

It is suitable for panel furniture decoration customization, high-gloss board, PET skin-feeling board and other cabinet door edge banding, and cabinet body edge banding.

Applicable materials:

wood based panel, solid wood, PVC board, etc.

share:

Inquire now
+
Inquiry
Product Details

LW-398

functions: Pre-milling, Double underplaced glue pot, End cutting, Rough trimming, Fine trimming, Corner Rounding, Scraping, cleaning, and Polishing.


Machine type:

LW-398

Glue box heating power:

1.5kw*2

Dimension:

9000*900*1550mm

Glue box transmission power:

0.37kw

Weight:

2.35t

Plate preheating power:

0.25kw

Total power:

19.7kw

Conveyer motor power:

3.7kw

Voltage:

380V  50Hz.

Pre-milling motor power:

1.8kw*2(12000r/min

Air pressure:

0.7-0.9MPa

Endcutting motor power:

0.37kw*2(12000r/min)

Sheet Length:

≥80mm

Rough trimming motor power:

0.75kw*2(18000r/min)

Sheet Width:

≥40mm

Fine trimming motor power:

0.75kw*2(18000r/min)

Sheet Thickness:

12-55mm

Corner Rounding motor power:

0.3kw*2(18000r/min)

Edge Band Thickness:

0.4-3mm

Polishing motor power:

0.18kw*2

Feed Rate:

18/20/22m/min
