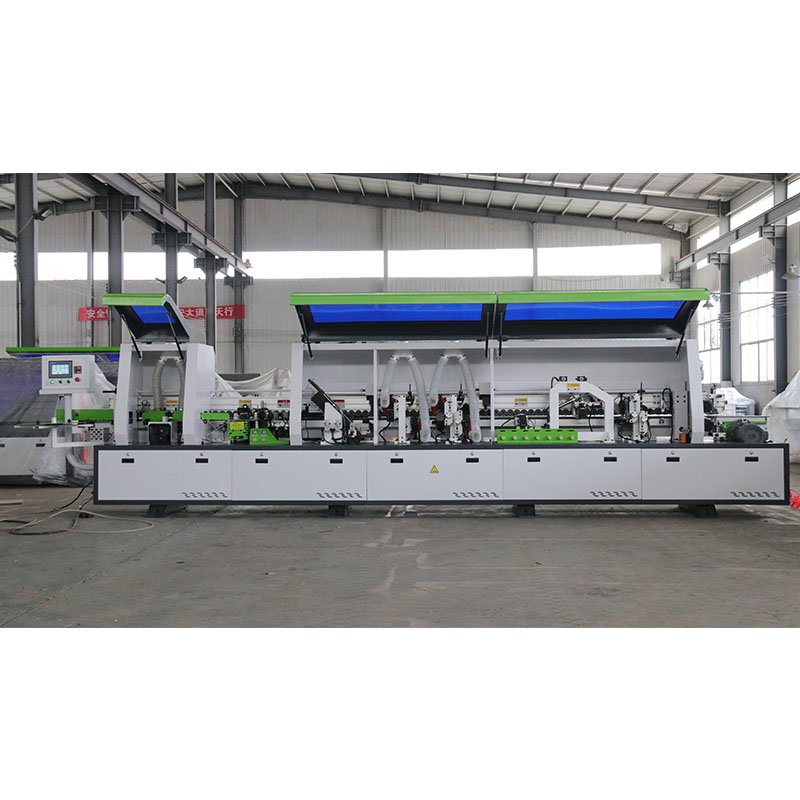

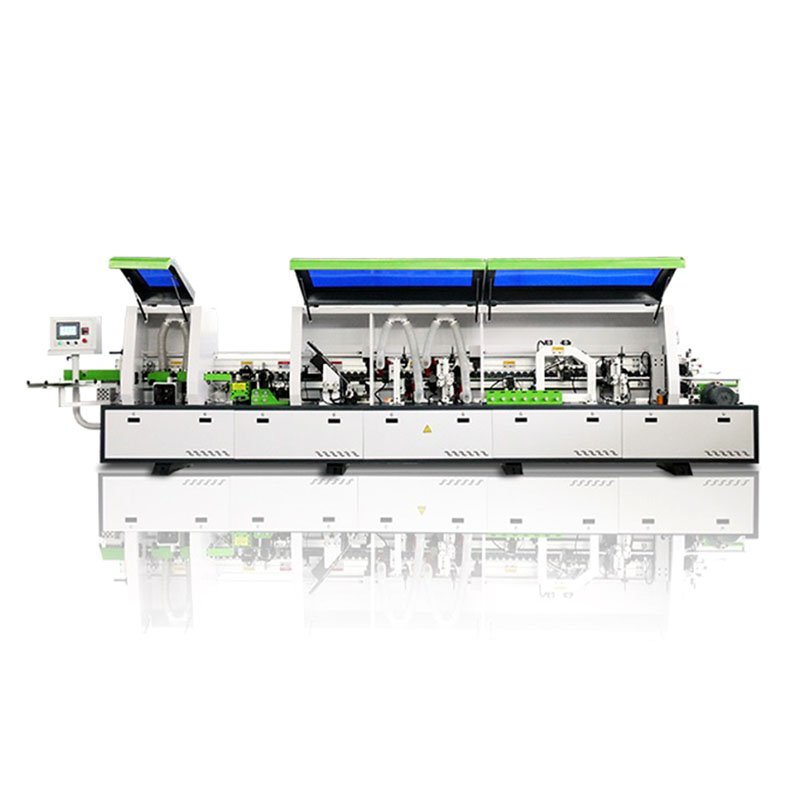

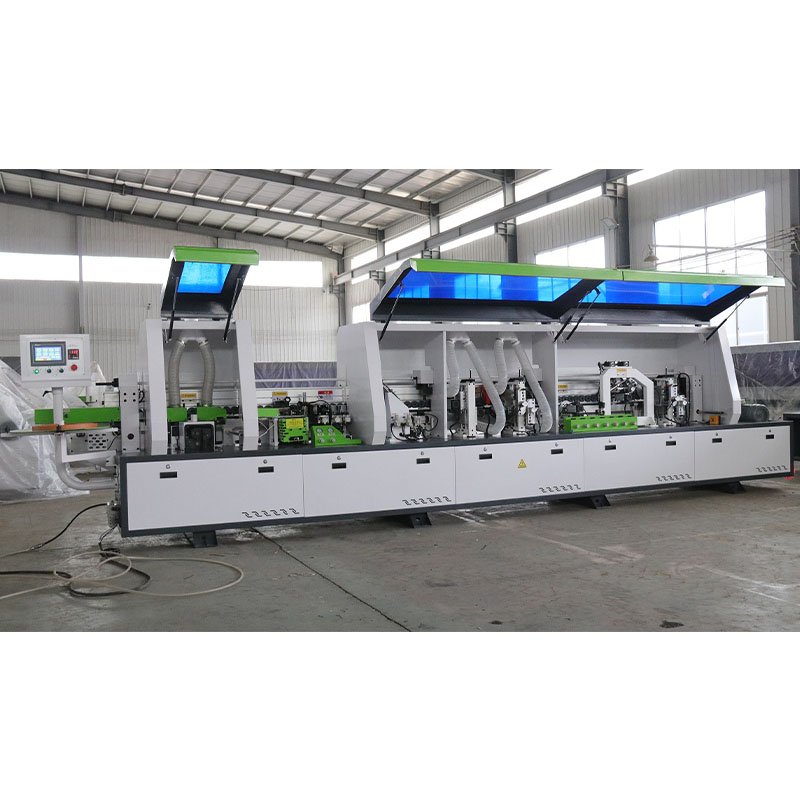

LW-388YJ Light-Duty Automatic edge banding machine

8 functions automatic edge banding machine,

functions: pre milling, glueing, end cutting, rough trimming, fine trimming, corner rounding, scraping, polishing.


share:

Inquire now
+
Inquiry
Product Details

LW-388YJ

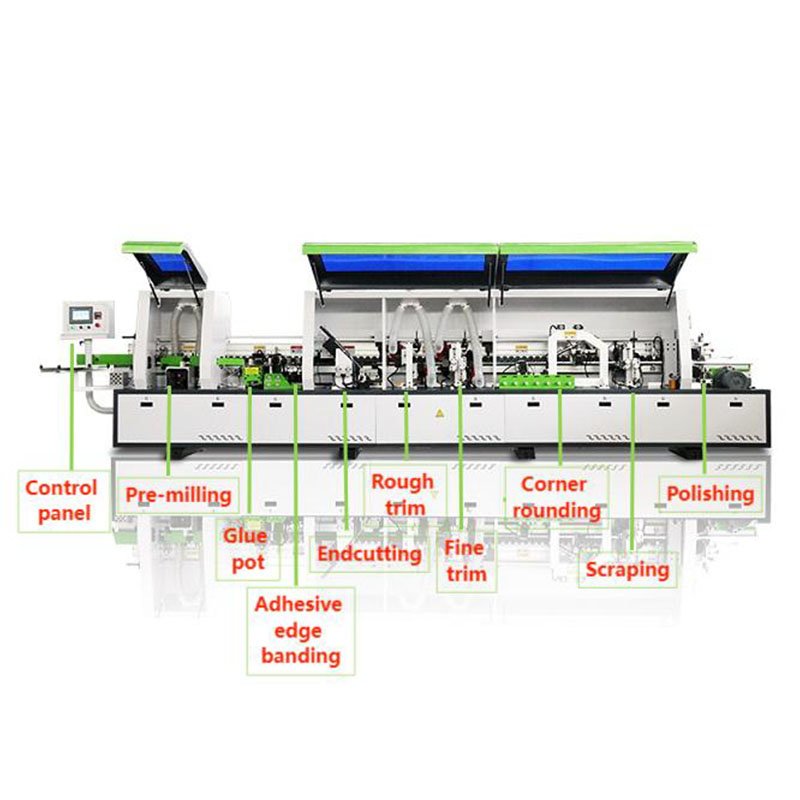

8 functions: Pre-milling, Lower glue pot, End cutting, Rough trimming, Fine trimming, Corner Rounding, Scraping and Polishing.


Machine type:

LW-388YJ

Glue box heating power:

1.5kw

Dimension:

6700*1000*1650mm

Glue box transmission power:

0.37kw

Weight:

1.9t

Plate preheating power:

0.25kw

Total power:

16.3kw

Conveyer motor power:

2.2kw

Voltage:

380V  50Hz.

Pre-milling motor power:

1.8kw*2(12000r/min

Air pressure:

0.7-0.9MPa

Endcutting motor power:

0.37kw*2(12000r/min)

Sheet Length:

≥80mm

Rough trimming motor power:

0.75kw*2(18000r/min)

Sheet Width:

≥40mm

Fine trimming motor power:

0.75kw*2(18000r/min)

Sheet Thickness:

12-55mm

Corner Rounding motor power:

0.3kw*2(18000r/min)

Edge Band Thickness:

0.4-3mm

Polishing motor power:

0.18kw*2

Feed Rate:

18/20/22m/min
