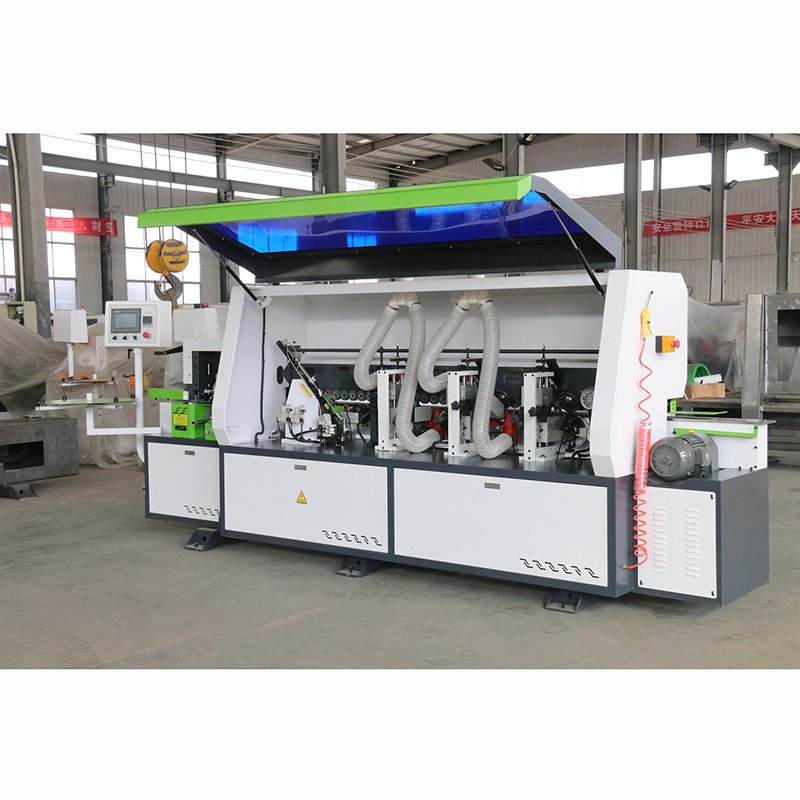

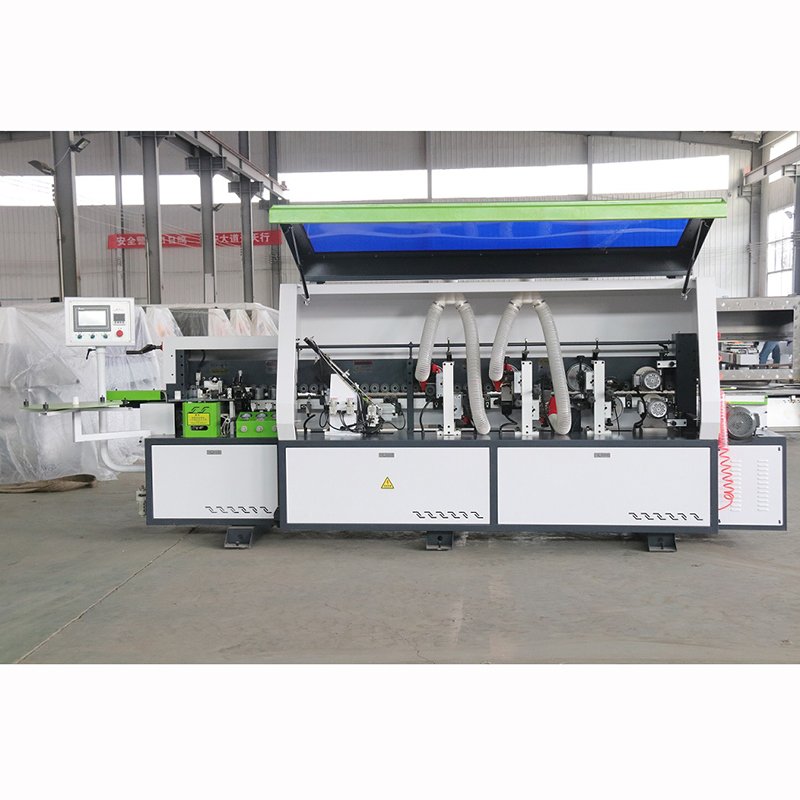

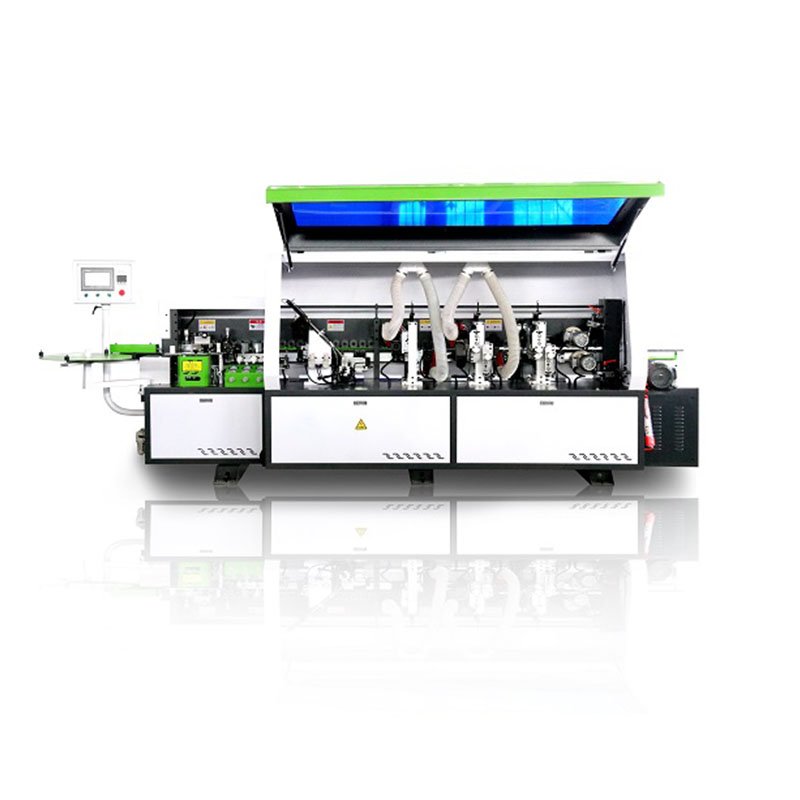

LW-368 Light-Duty Automatic edge banding machine

Product Highlights:

It is mainly used for cabinet edge banding, which can deal with thicker edge banding. (Economical and practical)

Suitable industry:

Suitable for board furniture decoration customization of all kinds of cabinet board sealing edge.

Applicable materials:

Particle board, fiber board, multi-layer board, ecological board, oak board, finger joint board, straw board, solid wood board, PVC board, etc.

share:

Inquire now
+
Inquiry
Product Details

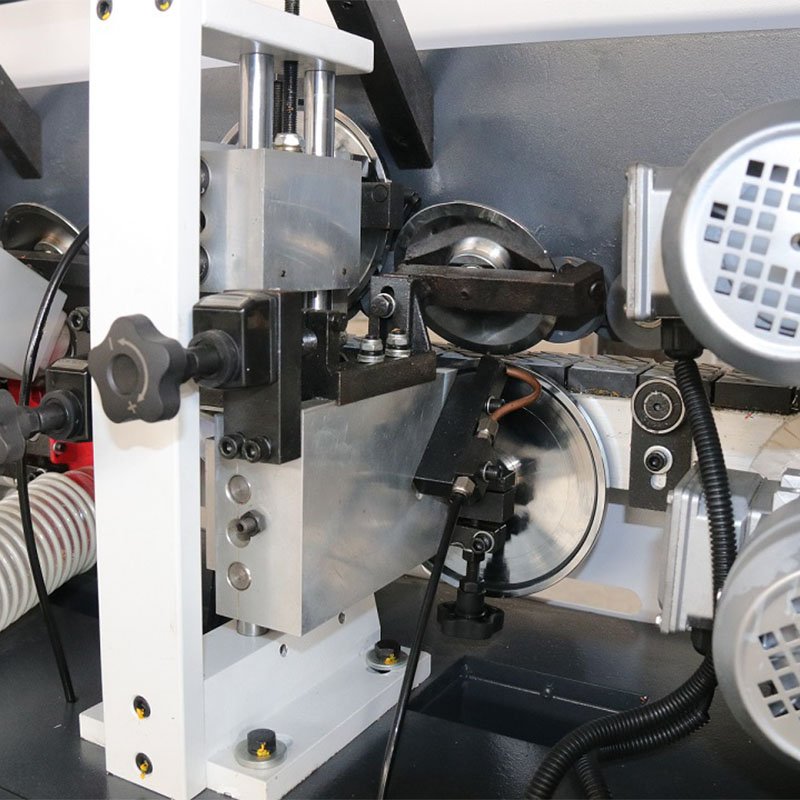

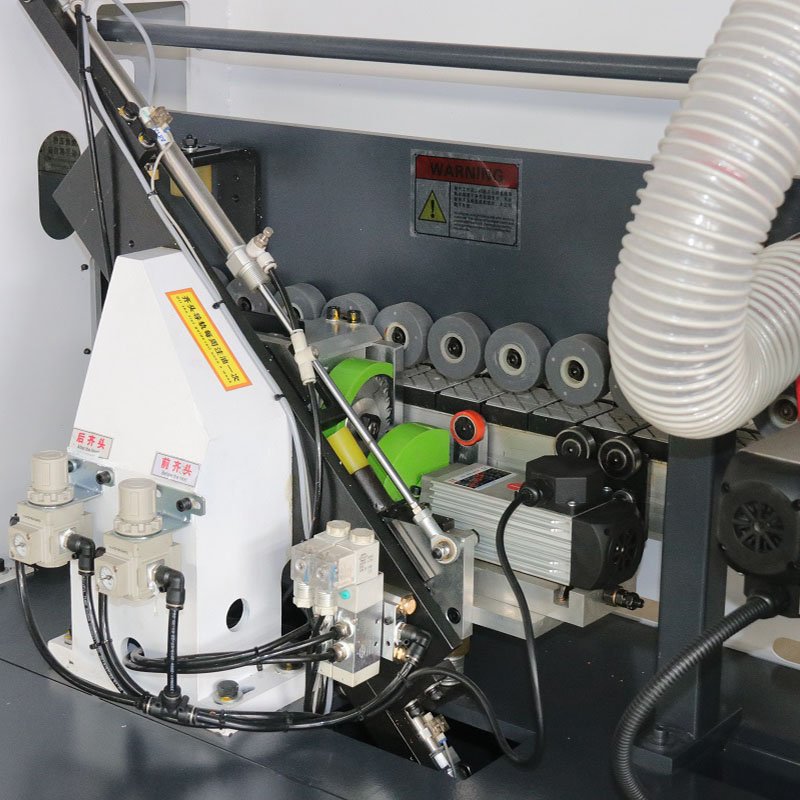

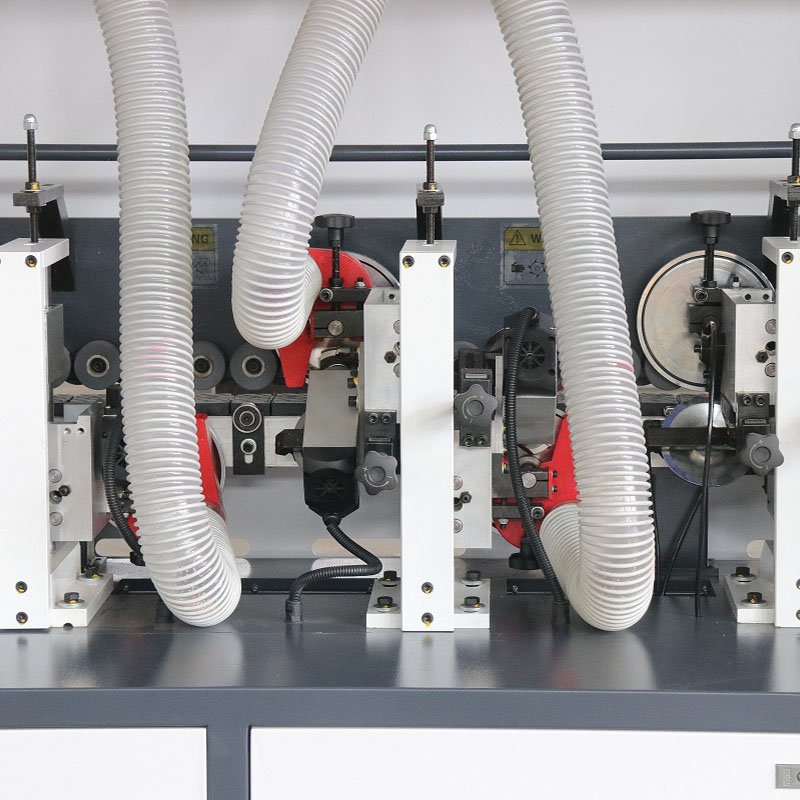

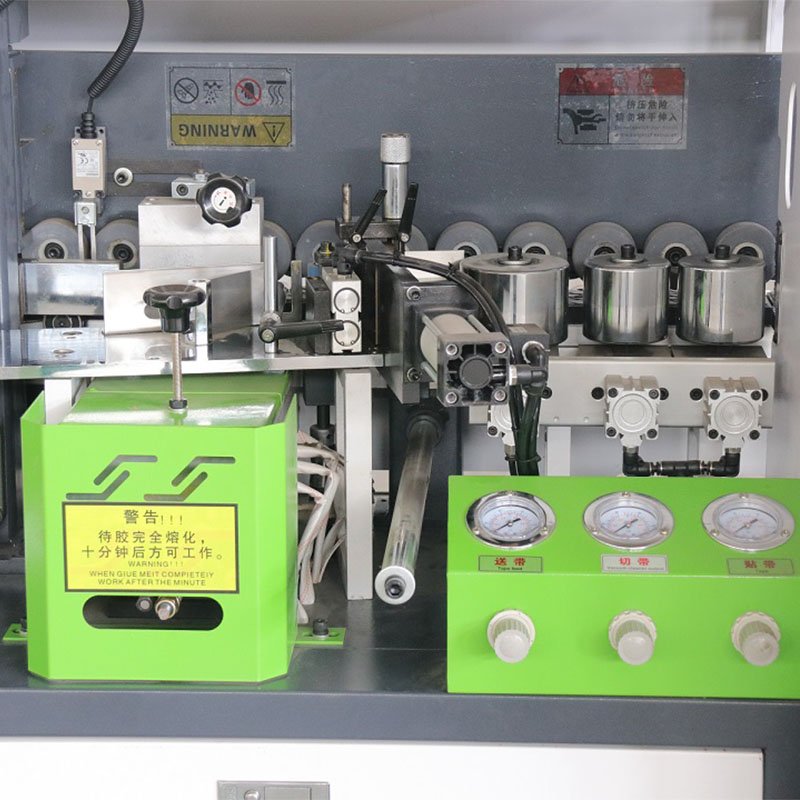

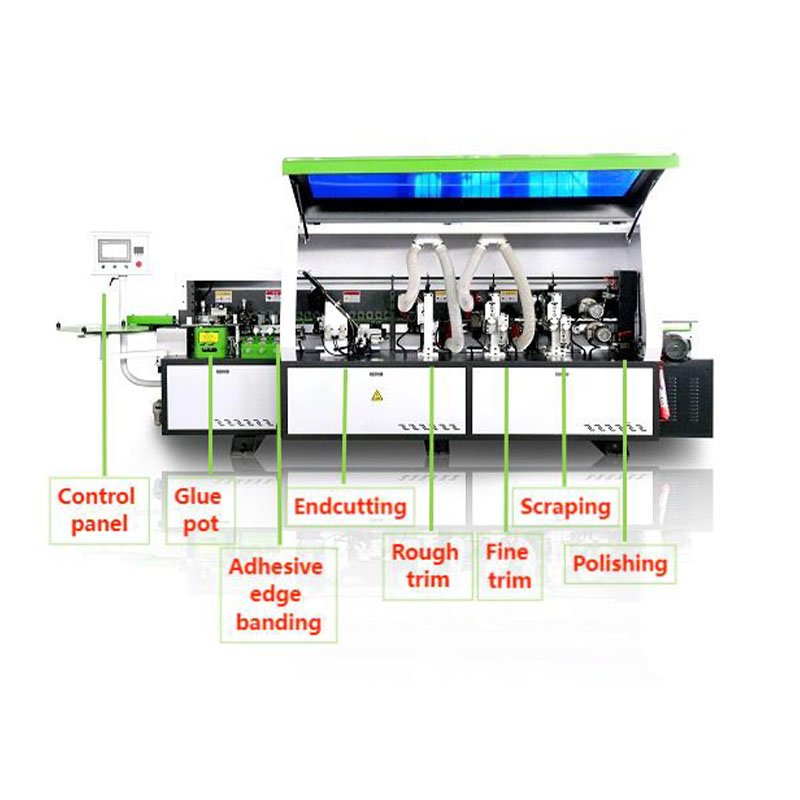

LW-368 automatic double-trimming edge banding machine: underplaced glue pot, Endcutting, Rough trimming, Fine trimming, Scraping and Polishing.

it use small parts, cheap price.


Machine type:

LW-368

Glue box heating power:

1.5kw

Dimension:

4200*900*1550mm

Glue box transmission power:

0.37kw

Weight:

800kg

Plate preheating power:

0.25kw

Total power:

10.72kw

Conveyer motor power:

1.5kw

Voltage:

380V  50Hz.

Endcutting motor power:

0.37kw*2(12000r/min)

Air pressure:

0.6-0.8MPa

Rough trimming motor power:

0.75kw*2(18000r/min)

Sheet Length:

≥80mm

Fine trimming motor power:

0.75kw*2(18000r/min)

Sheet Width:

≥40mm

Polishing motor power:

0.18kw*2

Sheet Thickness:

12-55mm



Edge Band Thickness:

0.4-3mm


Feed Rate:

16m/min
