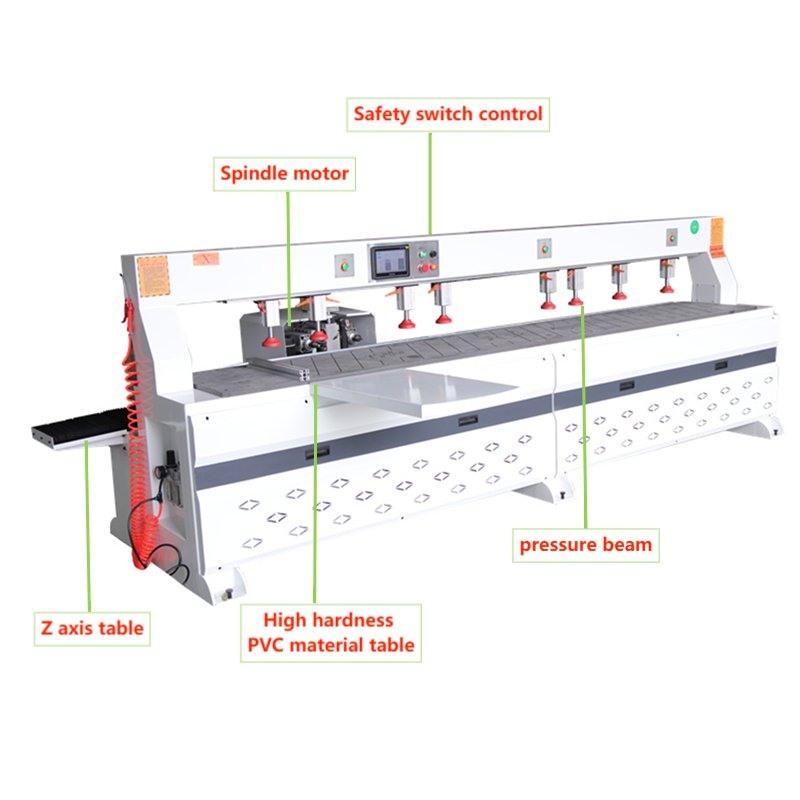

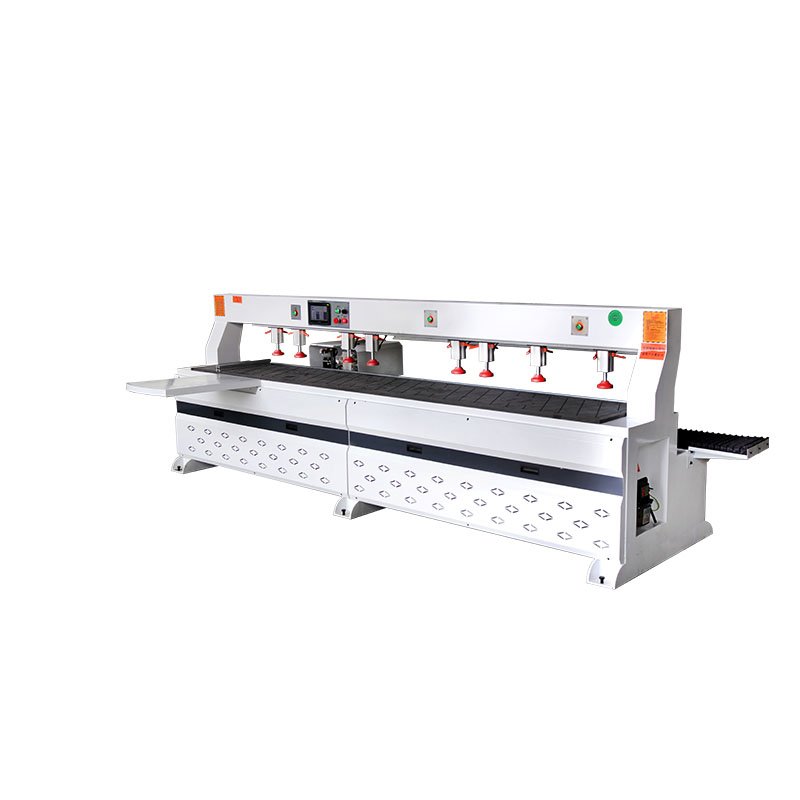

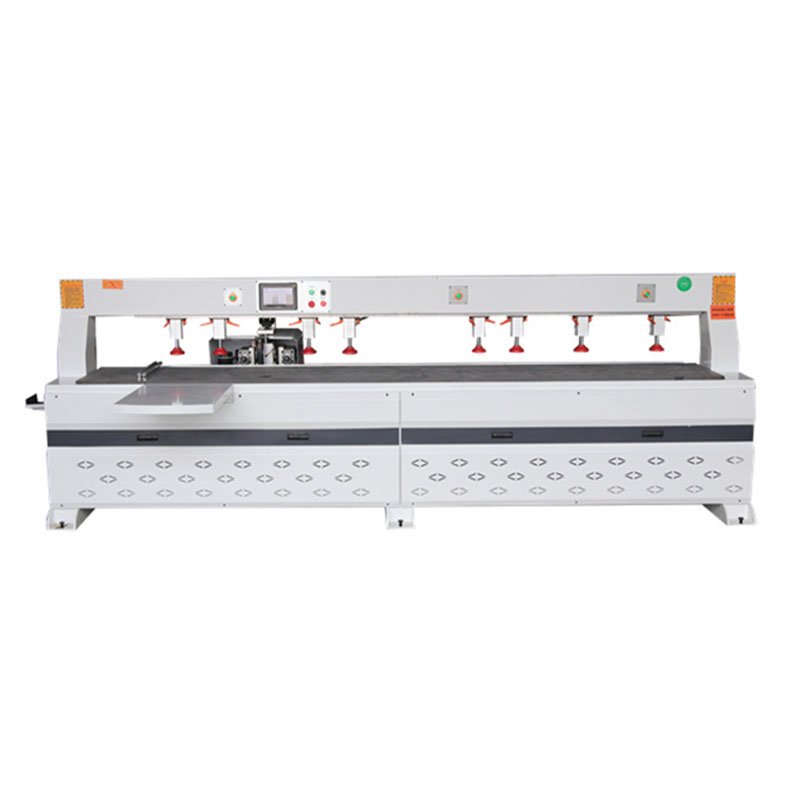

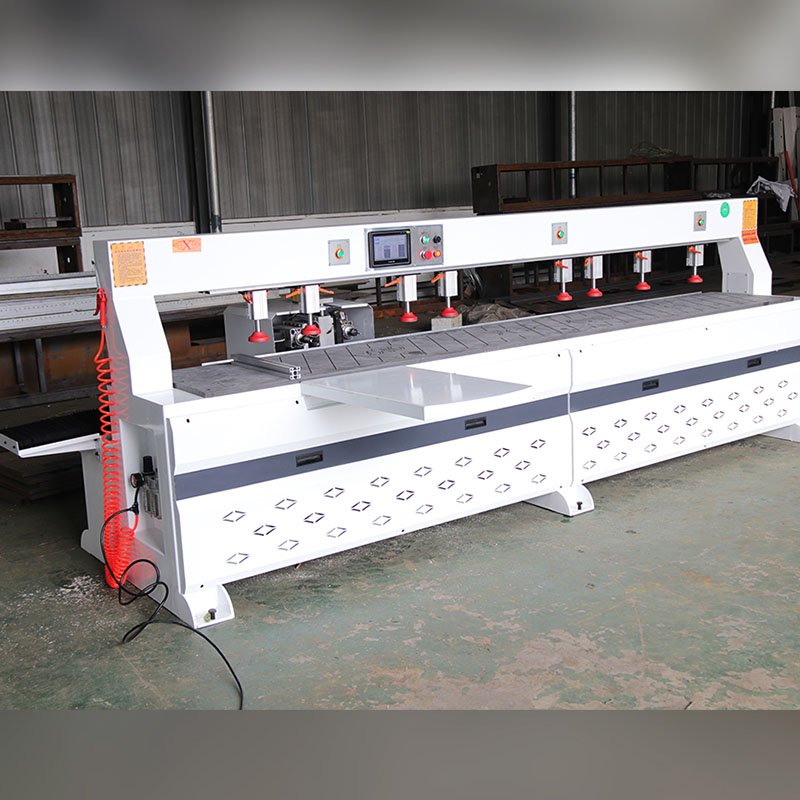

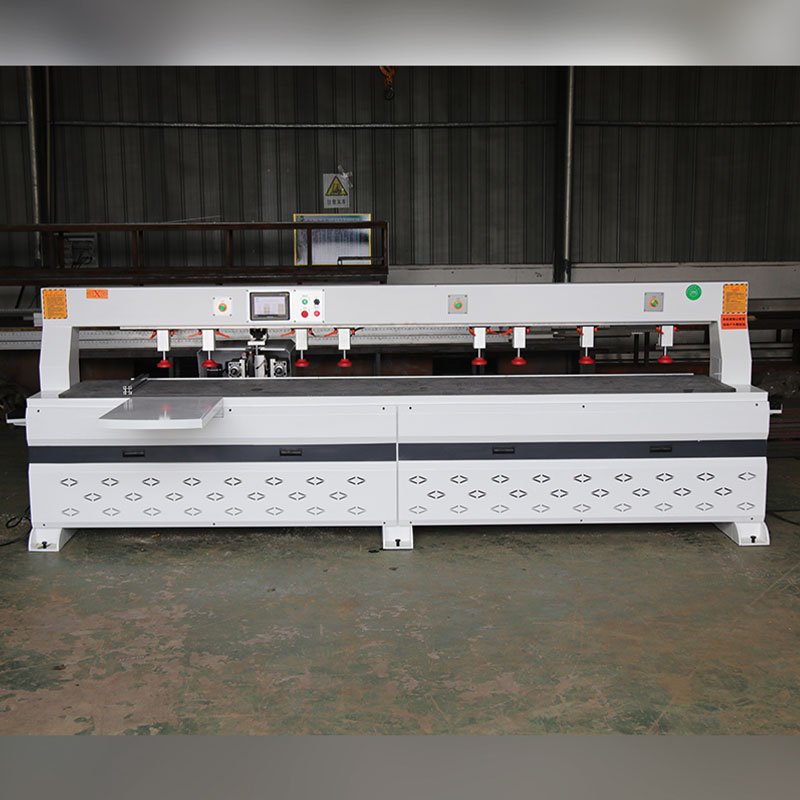

LW 3600C two spindle three axis side hole drilling machine

★2.8m workbench, drilling side holes for cabinet doors.

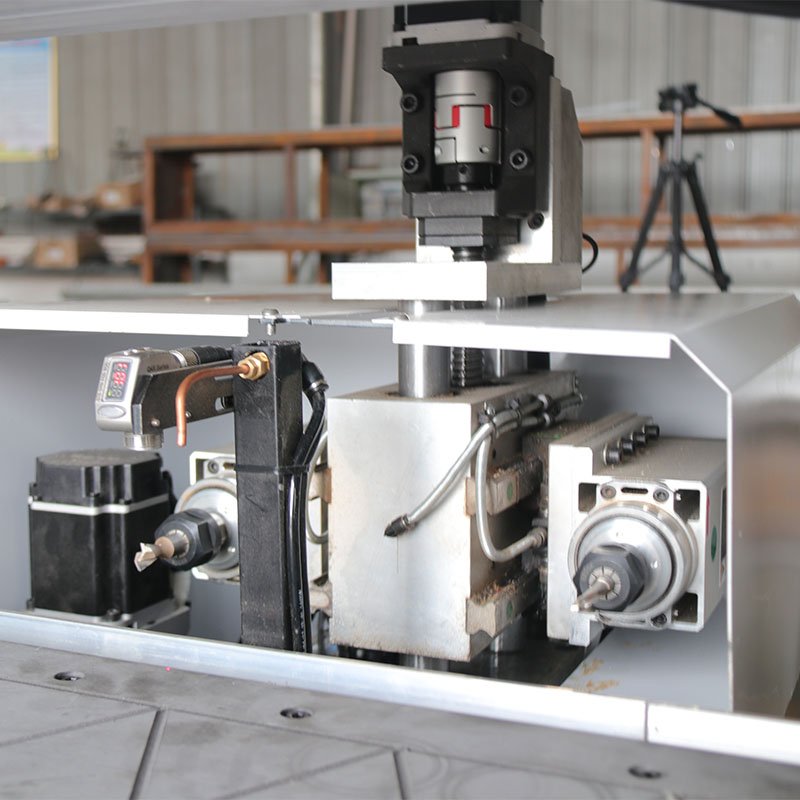

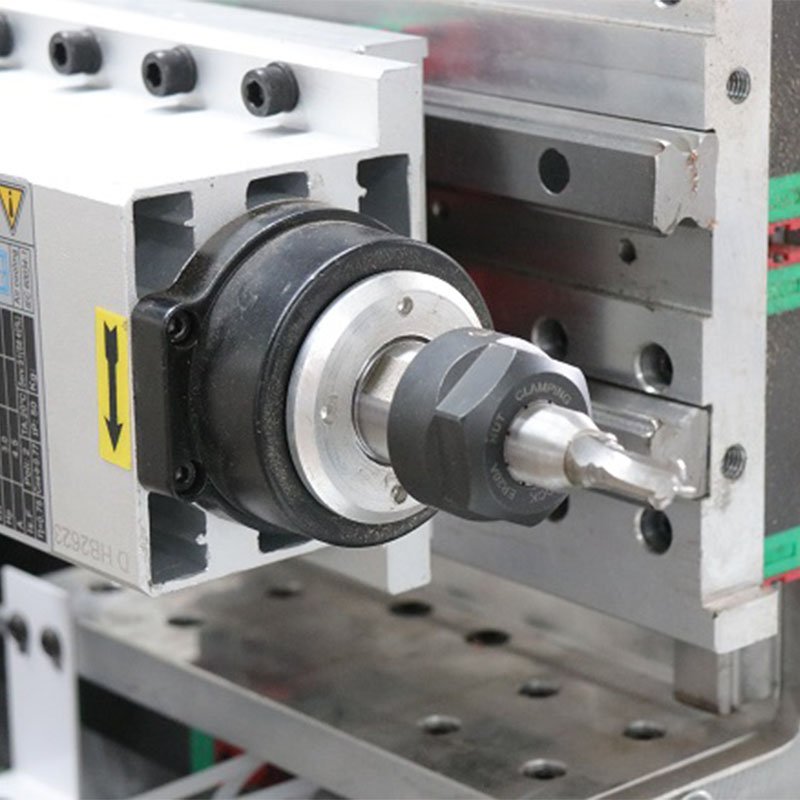

★two spindles, we can use two different drill bits at the same time, do not need to change them frequently.

★Three-in-one hole laser scanning and drilling, non-hole process invisible parts scanning code docking software drilling.

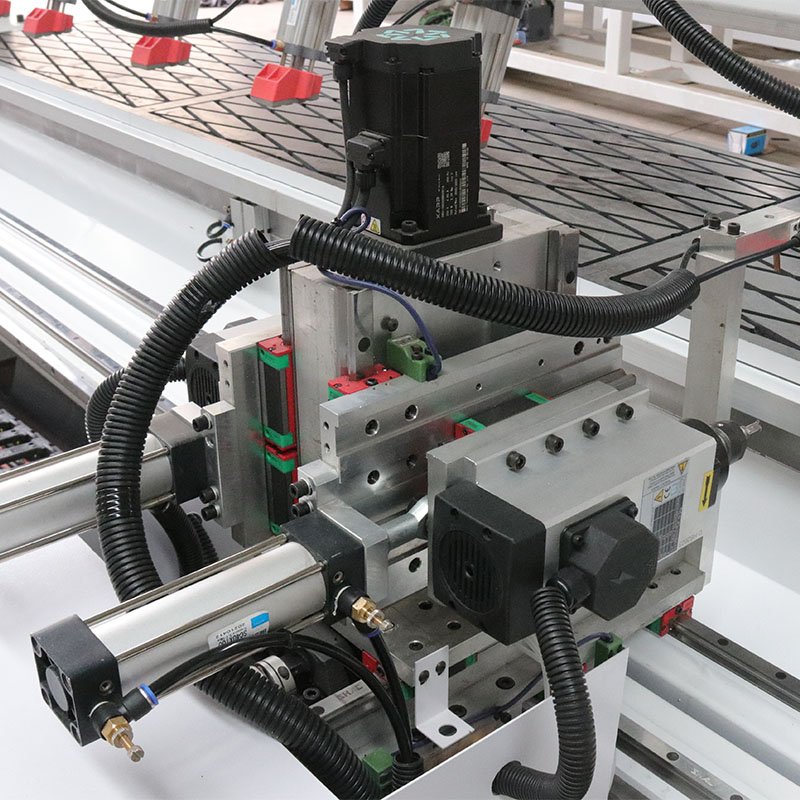

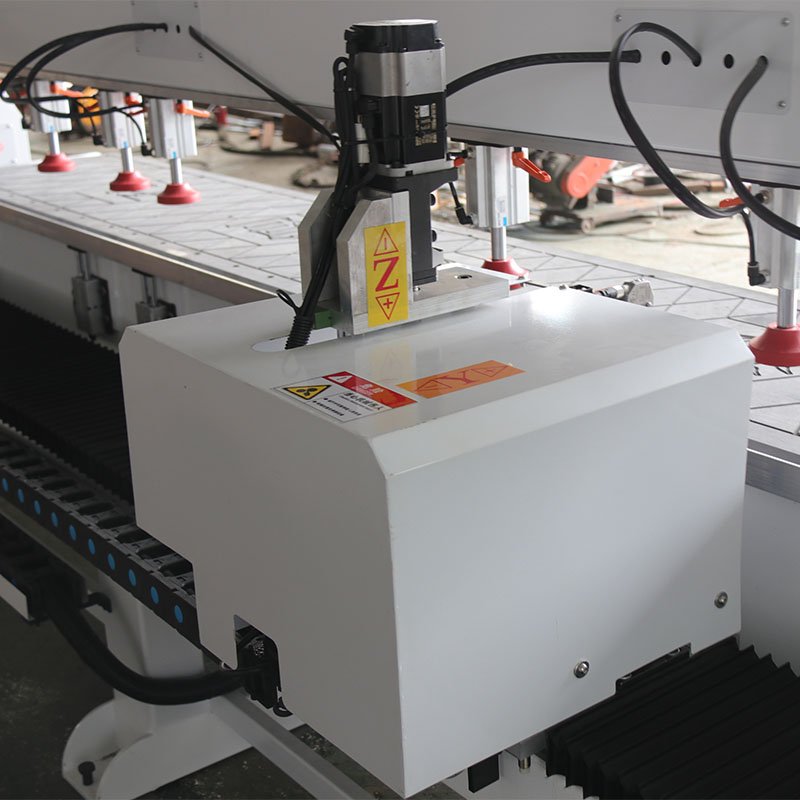

★Add a Z-axis servo, the spindle automatically moves up and down for processing, and can do tenon and mortise processing.

★Horizontal double guide rails are stable and durable.


share:

Inquire now
+
Inquiry
Product Details
size3600X1700X1400mm
net weight 940kg
Effective machining stroke2800 mm
Effective processing speed120m/min
Spindle motor2.2kw *2  ( 18000r /min )
working voltage380V
Plate thickness10-50mm
Board material width≥135mm
Idle speed150m/min
Workbench height800mm
