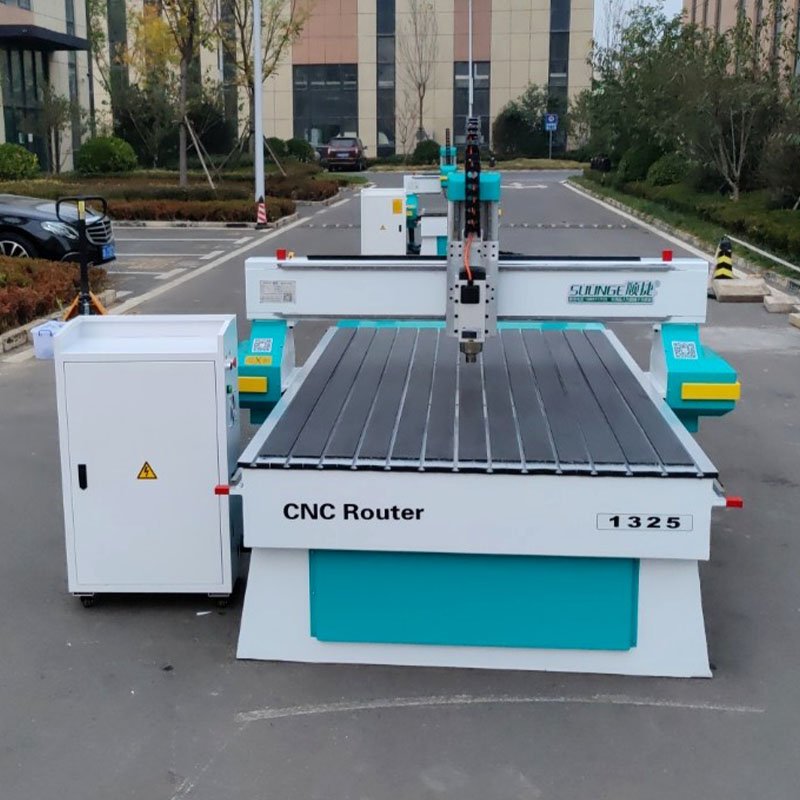

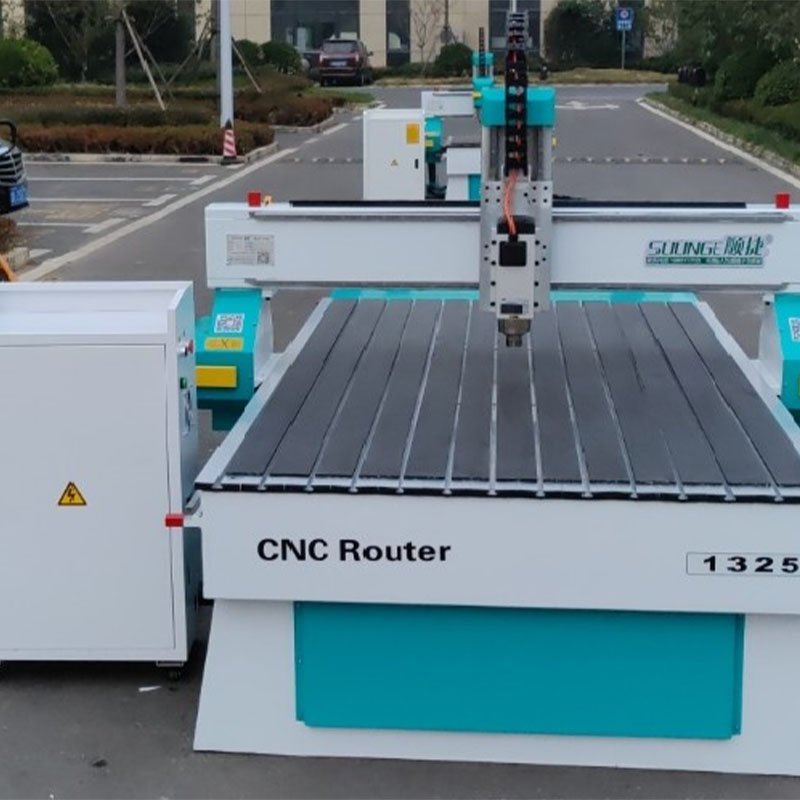

NO | Model | 2030 cnc router configuration | |
1 | X, Y axis stroke | 1300 ×2400mm | |
2 | Z axis stroke | 200mm | |
3 | Work table size | 1300*2500mm | |
4 | countertop material | Aluminum profile table | |
5 | Bed Gantry Structure | heavy bed, | |
6 | maximum operating speed | 12m/min | |
7 | Maximum engraving speed | 8m/min(According to material thickness and engraving depth) | |
8 | Gantry height | 200mm | |
9 | Precision | 0.2mm | |
10 | Repeatability | 0.05mm | |
11 | Clamping | Fixture | |
12 | Tool diameter | 3.175/4/6/8/10/12.7/16mm | |
13 | engraving instructions | Gcode*.u00*.mmg*.plt | |
14 | software operating environment | windows98/2000/xp | |
15 | Power (without spindle) | 500w | |
16 | Operating Voltage | 220/380V | |
17 | Spindle | 3kw wind cold spindle | |
18 | Spindle power | 3kw wind cold spindle | |
19 | Spindle speed | 6000-24000rpm/min | |
20 | driver | Xinchuan 758 hybrid servo supporting driver | |
21 | Inverter brand | Best inverter | |
22 | motor | Xinchuan 758 hybrid servo drive motor (Z-axis brake) | |
23 | transfer method | XY axis high precision 1.25m helical rack drive, Z axis high precision 2505 screw drive | |
24 | guide | high-precision 25 linear square rail | |
25 | Chassis | computer cabinet case |
