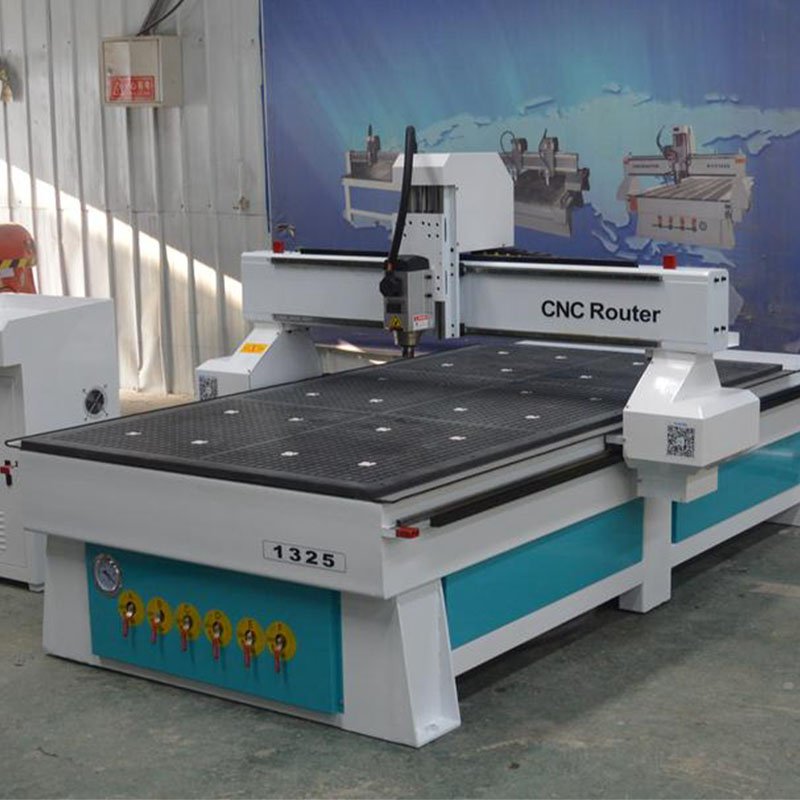

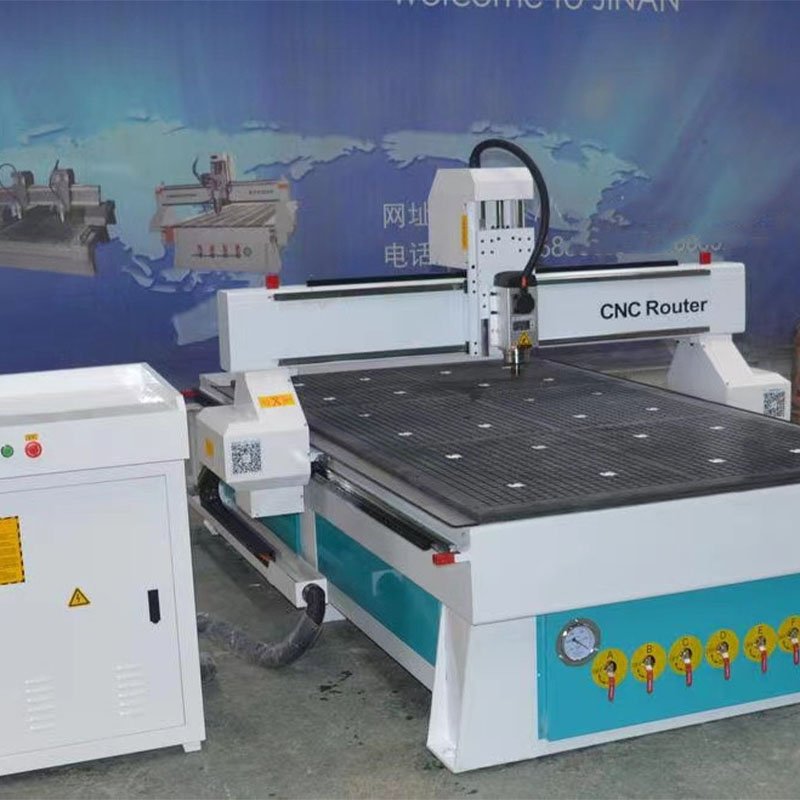

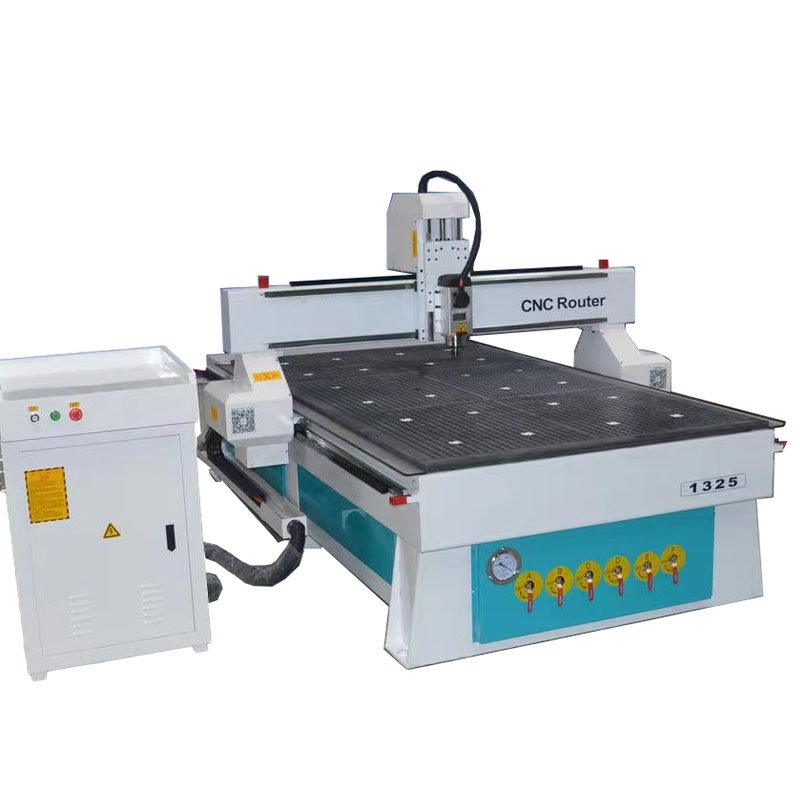

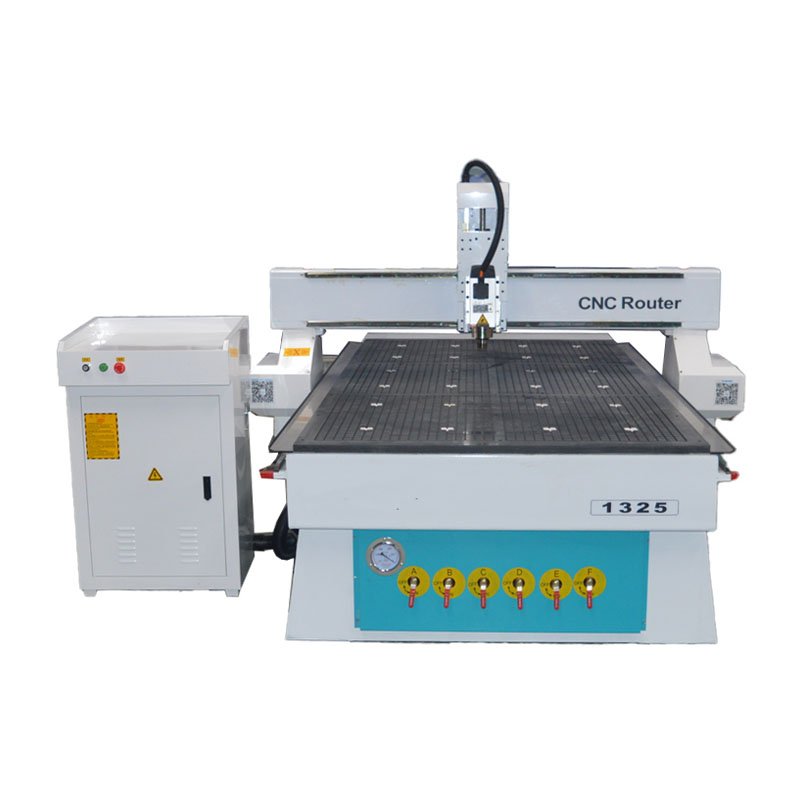

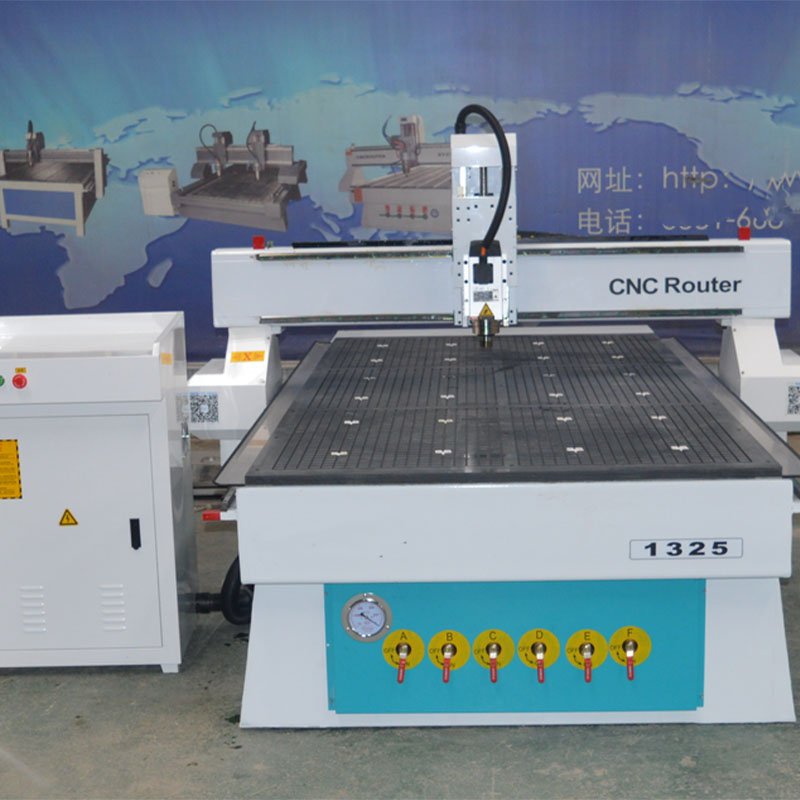

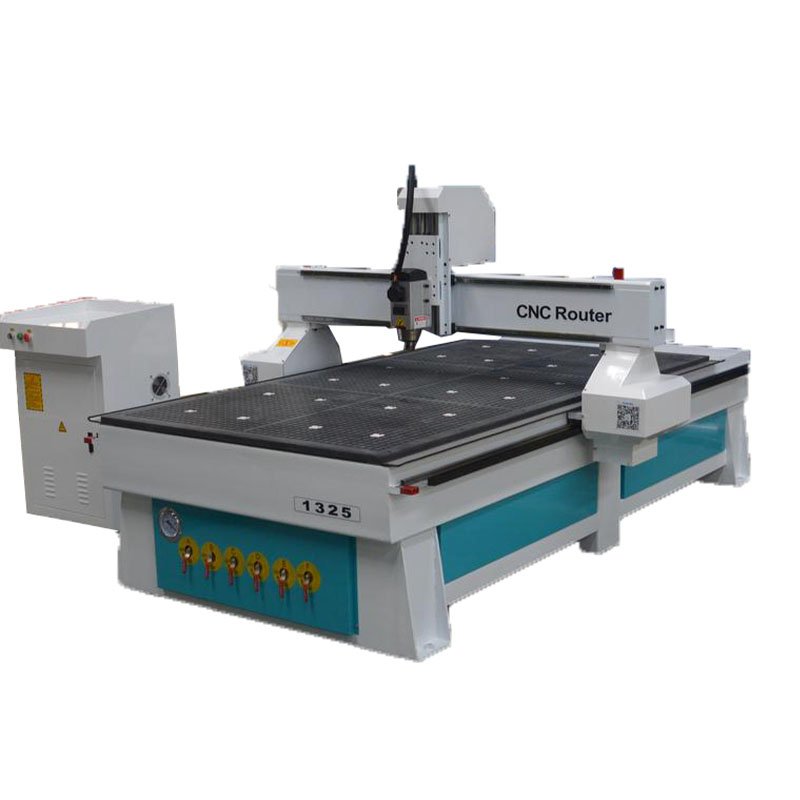

1325 Single spindle cnc router machine

Machine model

1300x2500

Countertop

First level PVC vacuum adsorption table +7.5kw vacuum pump

Head piece

cast aluminum

Maximum empty line speed

20000mm/min

Maximum working speed

10000mm/min

Spindle

Sino-Italian joint venture Jester/HQD, ceramic bearing, low frictional resistance and long service life

Spindle power

3kw/4.5kw/6KW air cooling / 5.5KW water cooling

Operation mode

Research control 2D68 / Reese 860H

Rack

1.25M high precision helical gear

Guide rail

25 Taiwan high-precision guide rail

Control system

Weihong

Total power

10.5KW
