Product detail

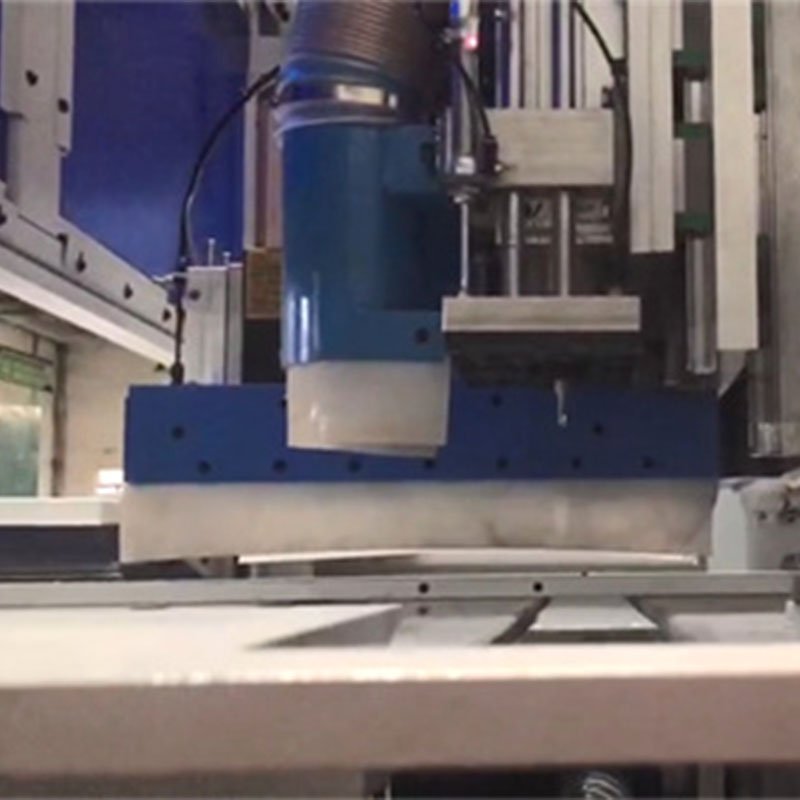

1 Pressure cylinder ,The movable air cylinder accurately presses the wood, effectively avoids the movement of the board, improves the accuracy of the machine, and is sturdy and durable.
2 Weighted body,Strong and stable, the machine body adopts high-strength pvc table to avoid the deviation caused by table surface wear. The machine tool adopts thick-walled square steel, which effectively avoids the inconvenience caused by the vibration of the machine body when the machine is working, and extends the service life of the machine.

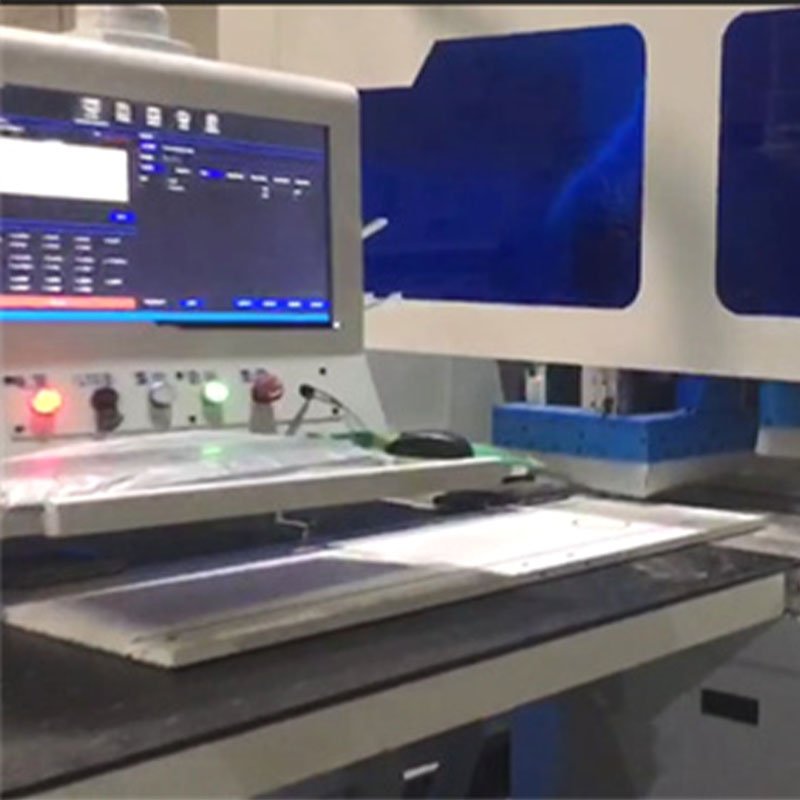

3 Control case ,The distribution control box is neatly arranged, and the standard frequency conversion central control is provided to ensure safe production and increase service life
4 Transmission hardware,Improve efficiency, adopt German oblique tooth square guide, high accuracy, long service life, improve work efficiency, speed 80-120m/min

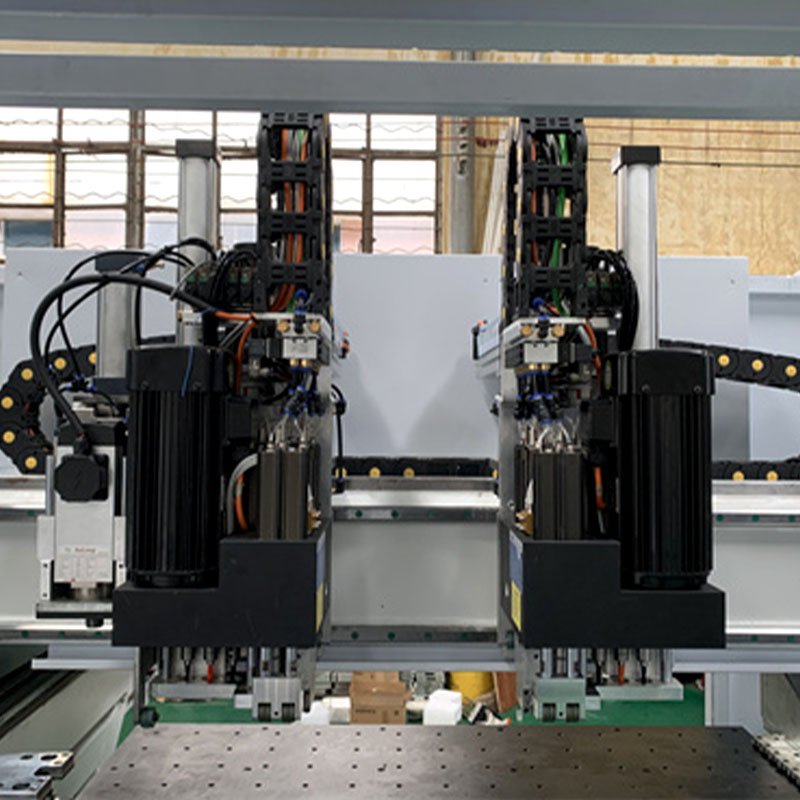

5 Machine drill package,The machine drilling report adopts pure copper servo motor control, original Taiwan guide rail, which improves the drilling speed and accuracy
X axis stroke | 4200mm | Top horizonal drill | X2*2 Y2*2 |
Y axis stroke | 1800mm | Bottom vertical drill | 9 |
Z axis stroke | 250mm | Milling speed | 18000 r/min |
Processing length | 150mm-3050mm | Spindle power | 2.2kw*4 |
Processing width | 40mm-1200mm | Total power | 23kw |
Processing thickness | 10mm-60mm | Weightl | 2700kg |
Max dimension | 90mm | Size | 4800mm*2550mm*1860mm |
Top vertical dirll | 5+7 | Motor | Servo motor |
