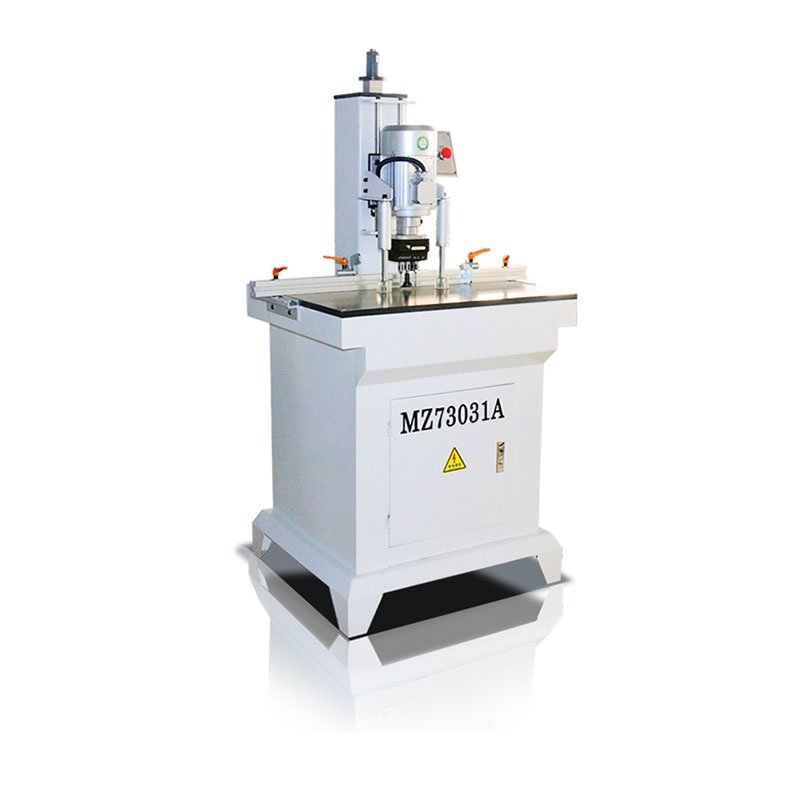

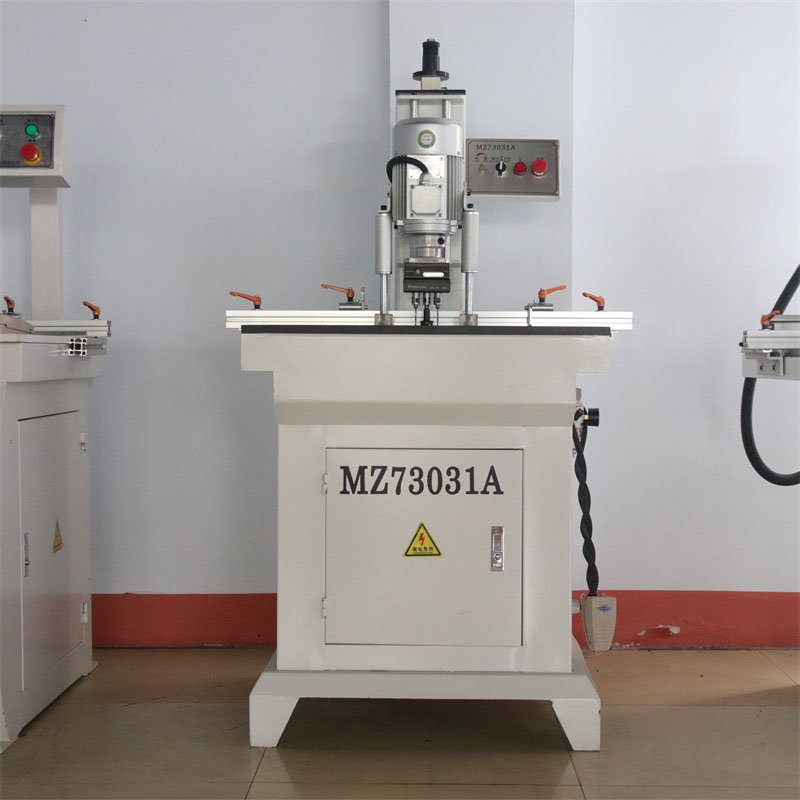

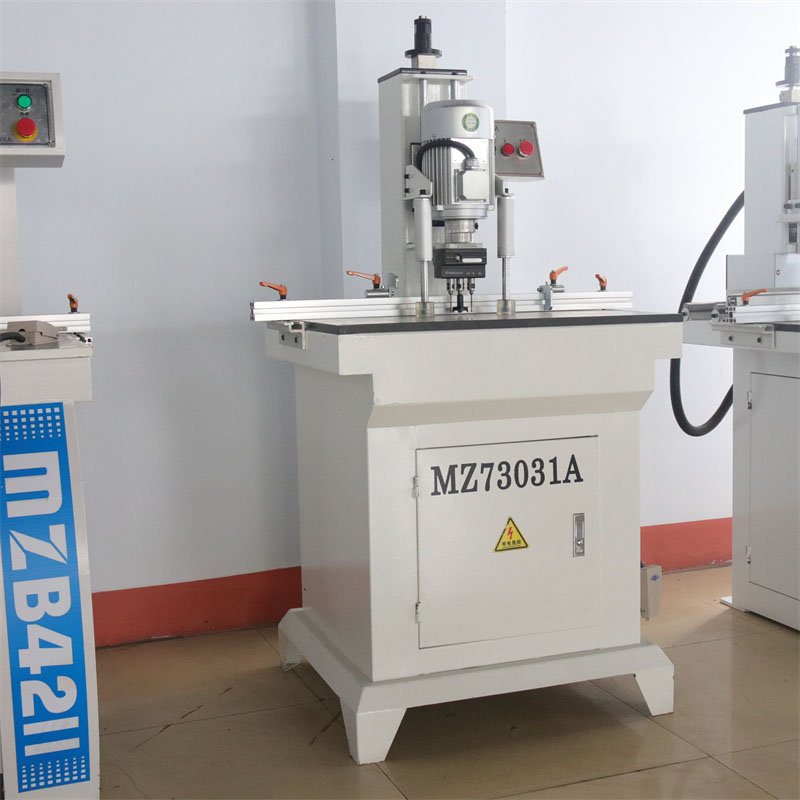

LWJLZ01 Single head hinge drilling machine

Maximum drilling length

≤1000mm

≤1500mm

Maximum drilling depth

50mm

50mm

Maximum drilling diameter

35mm

40mm

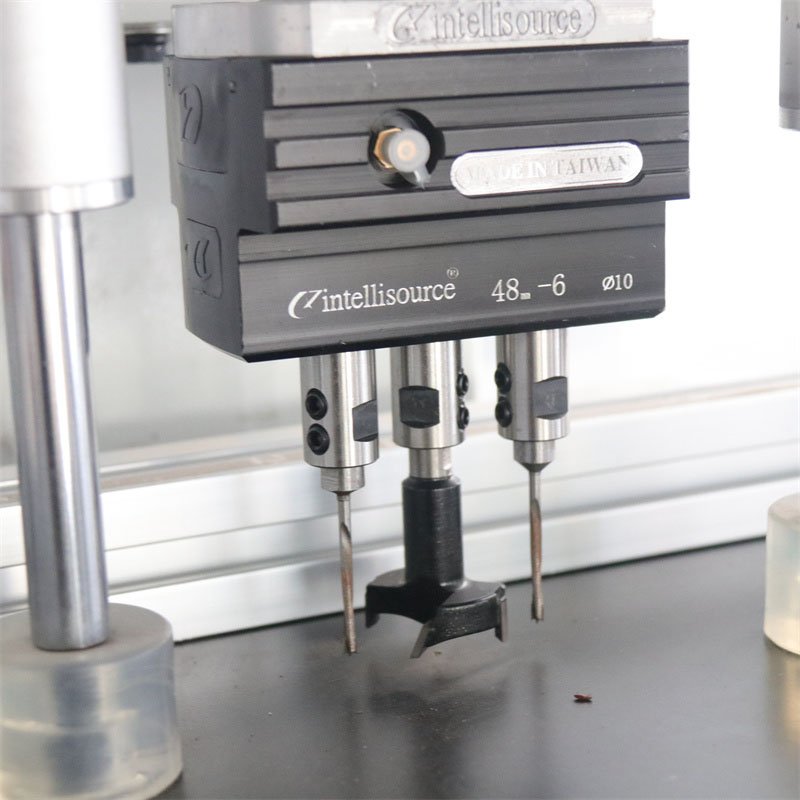

Number of drill spindles

3*1

3*2

Air pressure

0.6-0.8mpa

0.6-0.8mpa

Motor power

1.1kw

11kw*2

Rotation speed of spindle

2840r/min

2840r/min

8Weight

80kg

140kg

Oversize

1000*650*1550mm

1700*800*1550mm
