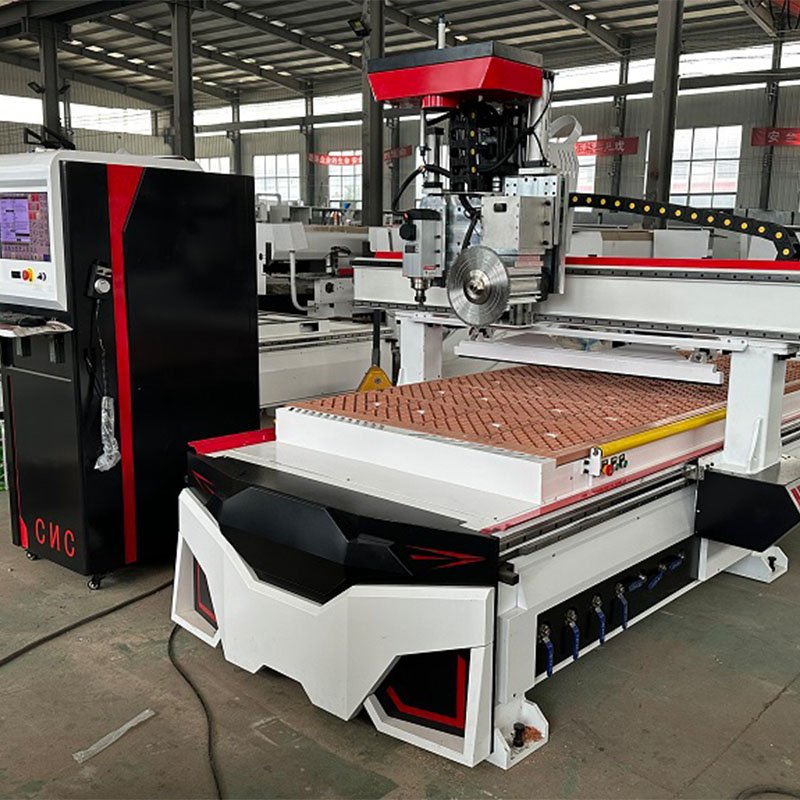

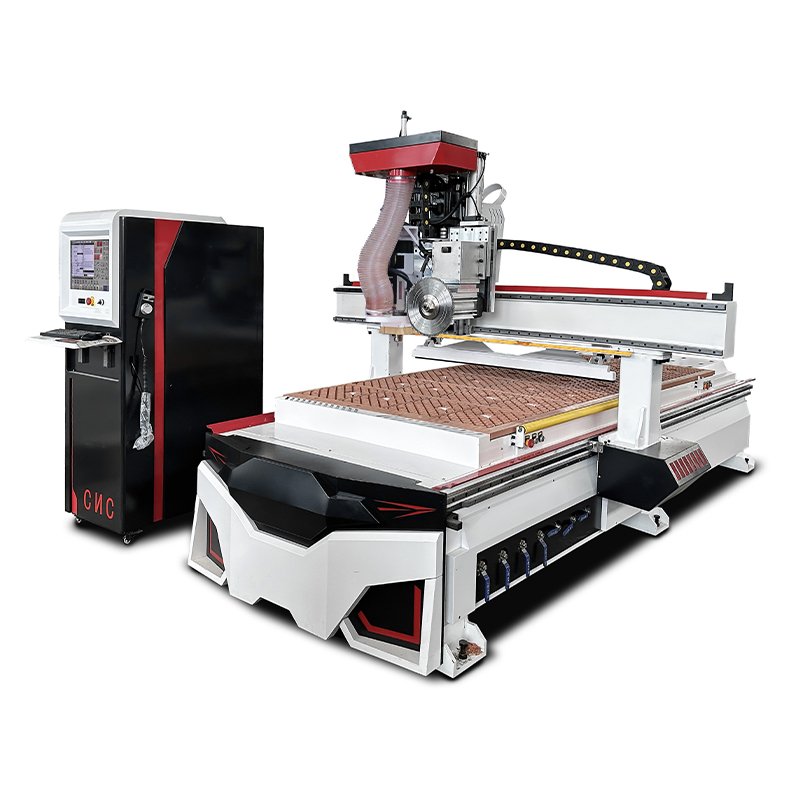

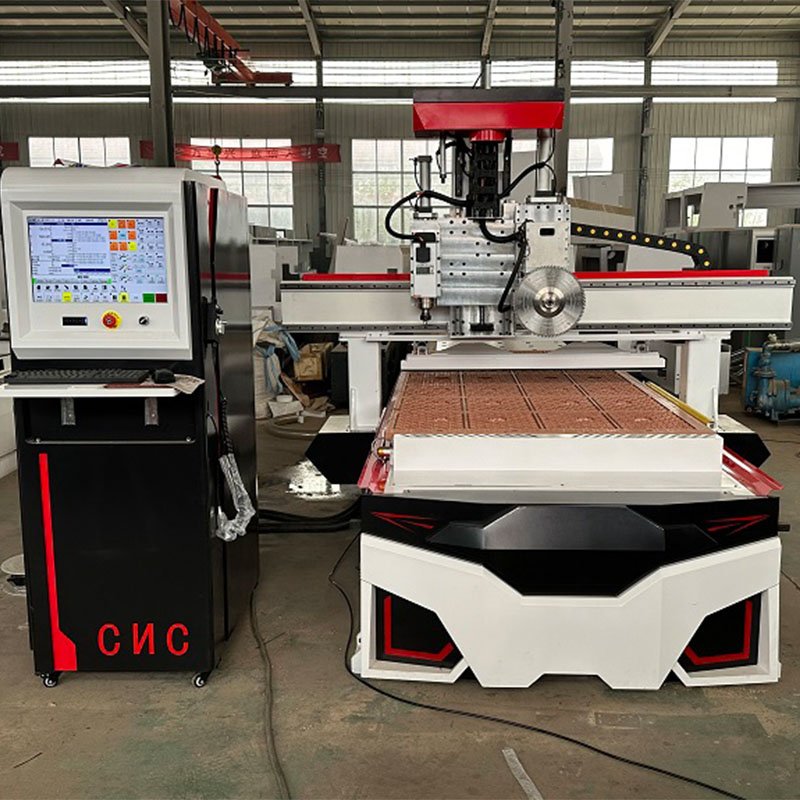

LW1328-16-s
multi functions woodworking center,
according to the requirements of wood panel furniture production:
computer number control drilling, grooving, cutting, engrave.
9kw spindle with 16 tools magazine,
auto change tools rapidly.

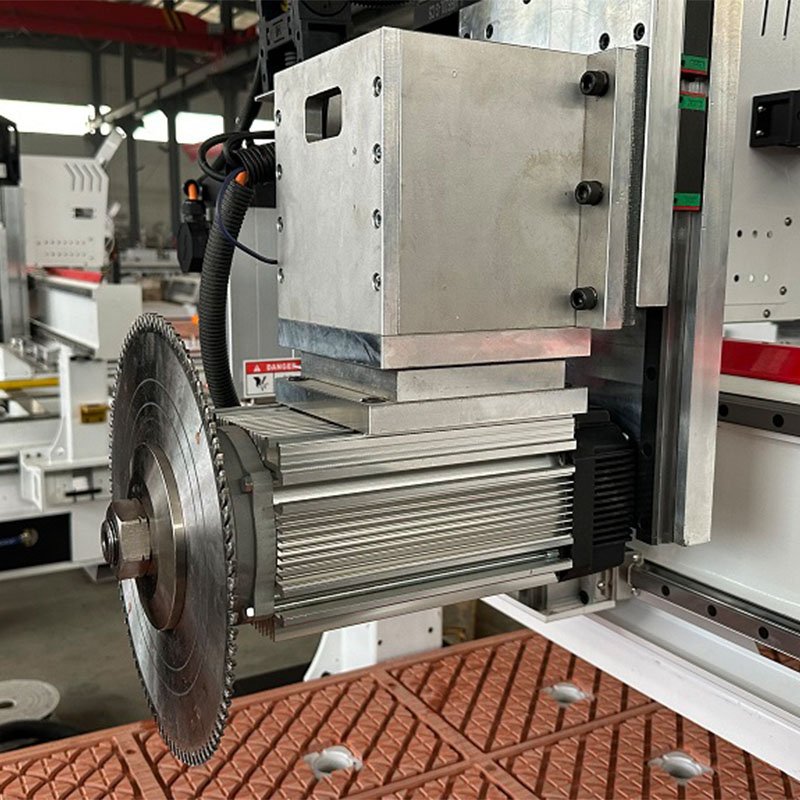

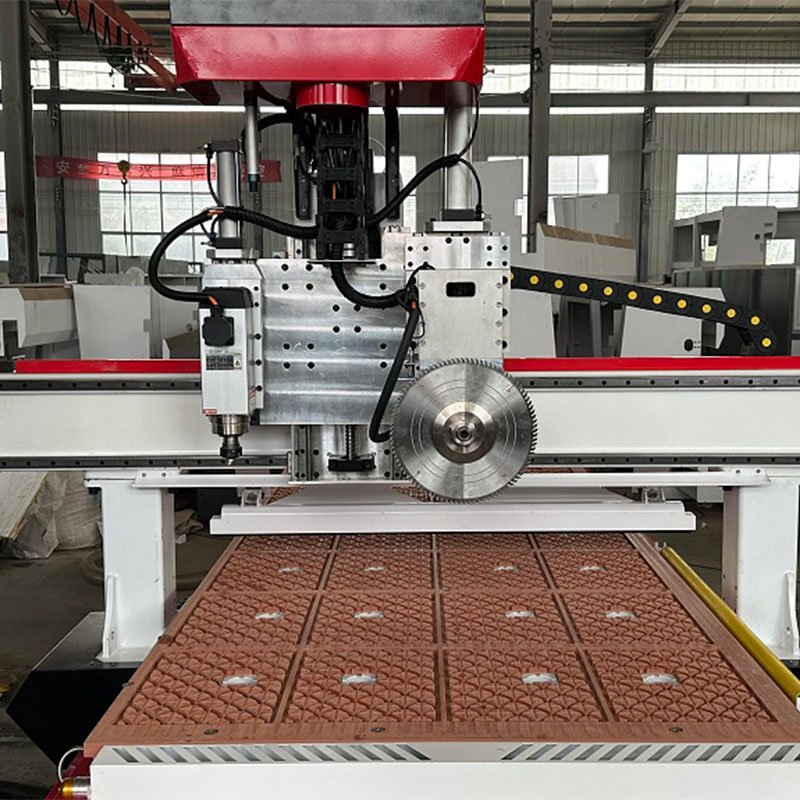

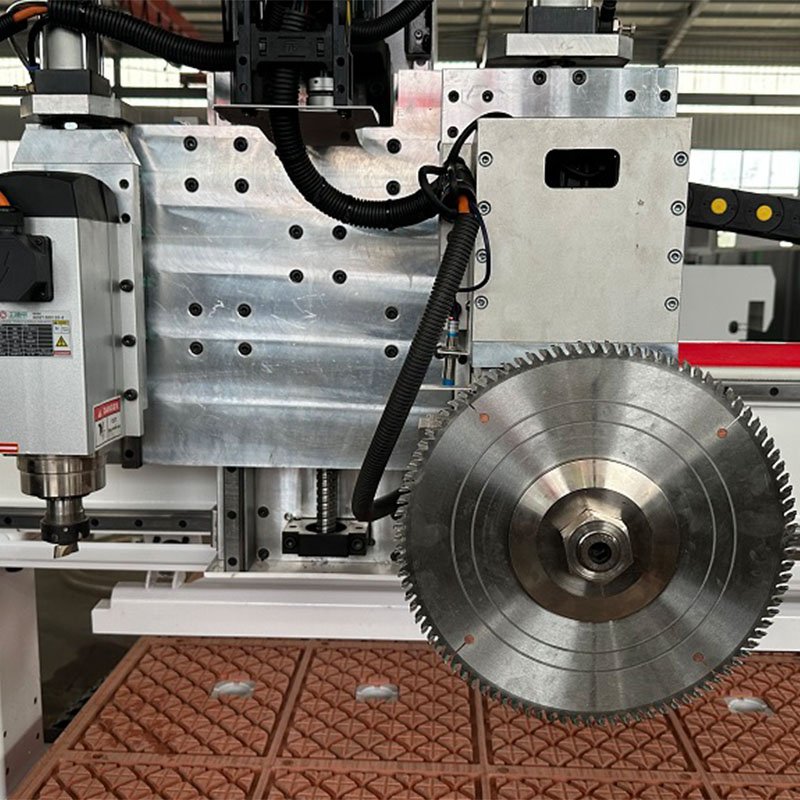

Separate spindle with saw blade to accelerate the cutting speed of large plates.
Suitable industry:
Customized cabinets, wardrobes, wine racks, tatami, shoe cabinets, antique-and-curio shelves, bookshelves, computer tables, partitions, bedside cabinets, blister door panels, spray painted door panels, molded door panels, flat reliefs, screens, hollow partitions, handicrafts, etc.
Particle board, fiberboard, multi layer board, ecological board, oak board, finger board, wheat straw board, solid wood board, PVC board, aluminum honeycomb board, etc
LW-1328-16-S | ||
l Work range | l X | l 1300mm |
l Y | l 2800mm | |
l Z | l 200mm | |
l body | l Thick steel body,quenching treatment | |
l Auto feeding system | l Auto feeding,one touch dust collecting,auxiliary feeding rolls | |
l Transmission mode | l X,Y precision diagonal rack,Z screw,Z band-type brake | |
l Guide rail | l 30MM | |
l Frequency converter | l 25KW | |

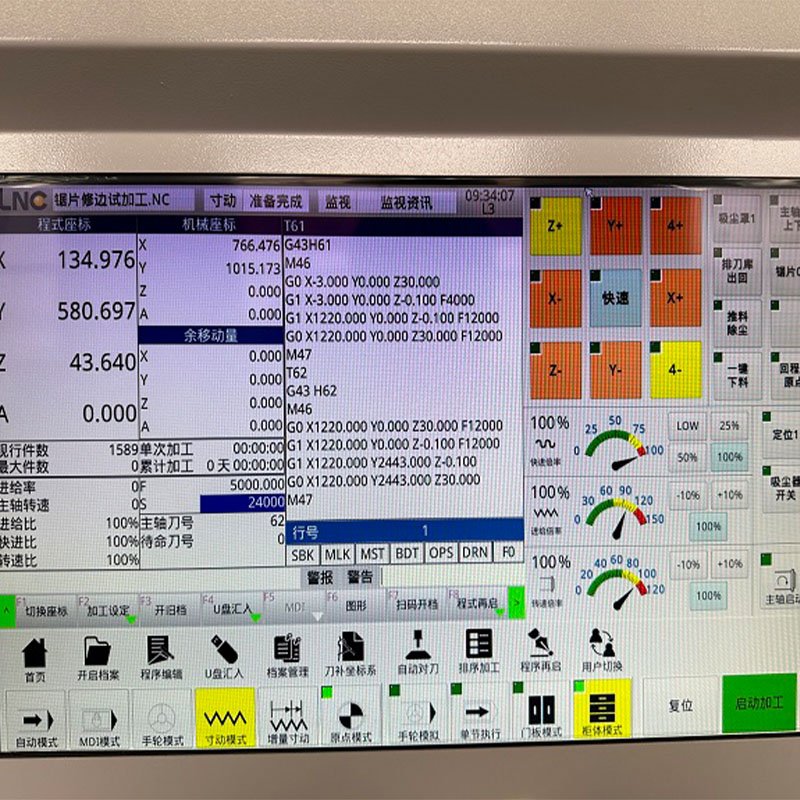

l Control system | l TAIWAN BAOYUAN | |

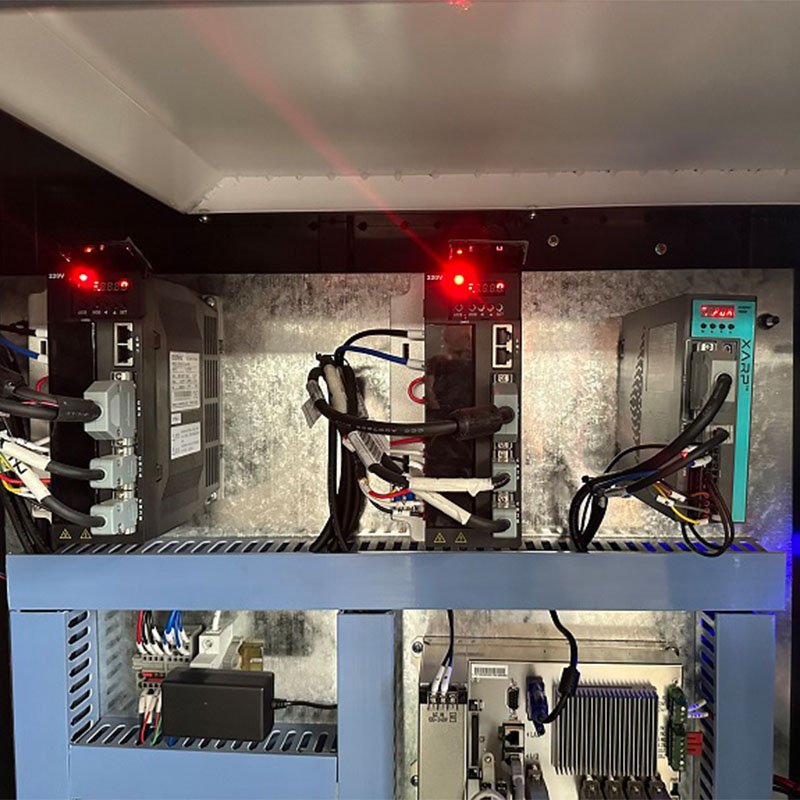

l Servo drive system | l 1500W X | |
l 1500W Y | ||
l 1200W Z | ||
l Spindle | l Cool mode | l Air cooling |
l power | l 9kw | |
l Turning speed | l 6000-24000r/min | |
l Work range | l X | l 1300mm |
l Saw spindle | l 5.5KW | |
l Reducer | l Japan brand | |
l Rack | l 1.5M diagonal | |
l Tool depth proofreading | l Up-down floating auto tool setting instrument | |
l Oiling | l Auto circulation oiling | |
l Max move speed | l 80000mm/min | |
l Max work speed | l 30000mm/min | |
l Work accuracy | l ±0.05mm | |
l Table structure | l Pvc vacuum adsorption table | |
l Processing code | l G code | |
l Voltage | l AC380V/3PH/50HZ | |
l Accessory | l 7.5KW water cool pump,5.5KWdust collector,tool set | |
l Out size | 4300*2200*2300mm |
