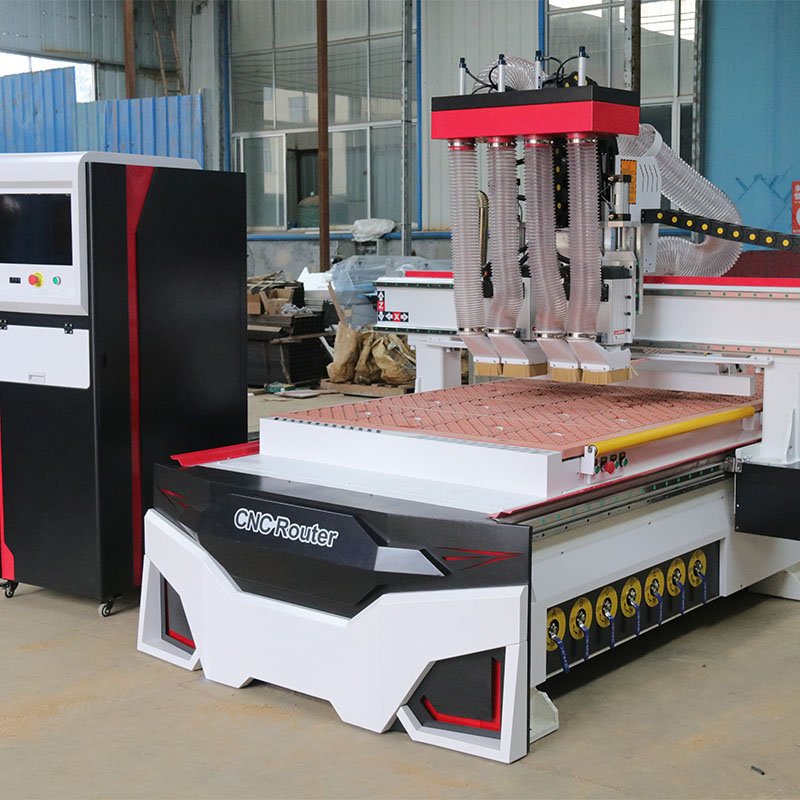

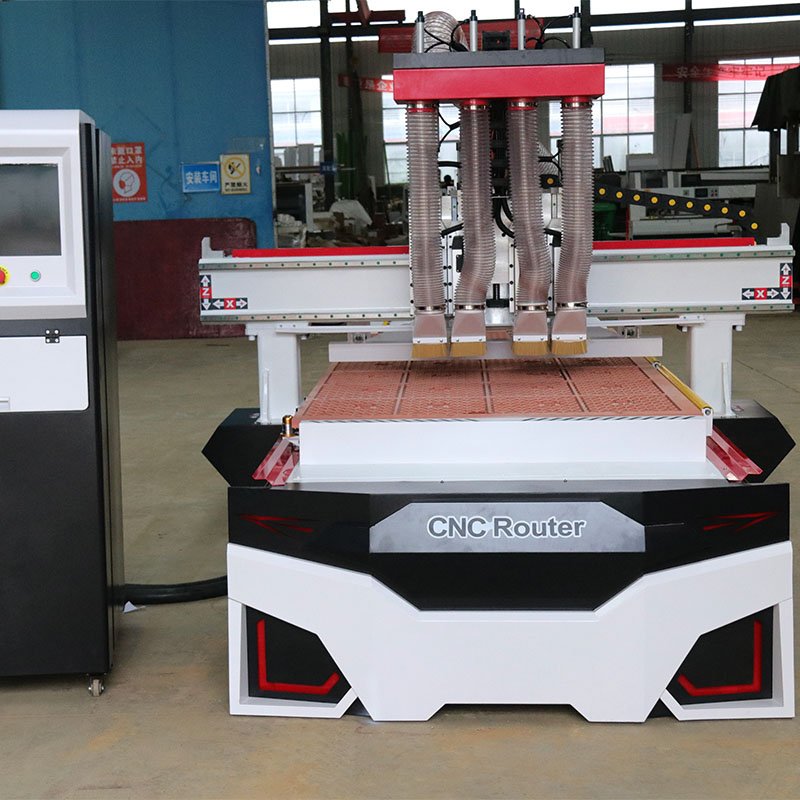

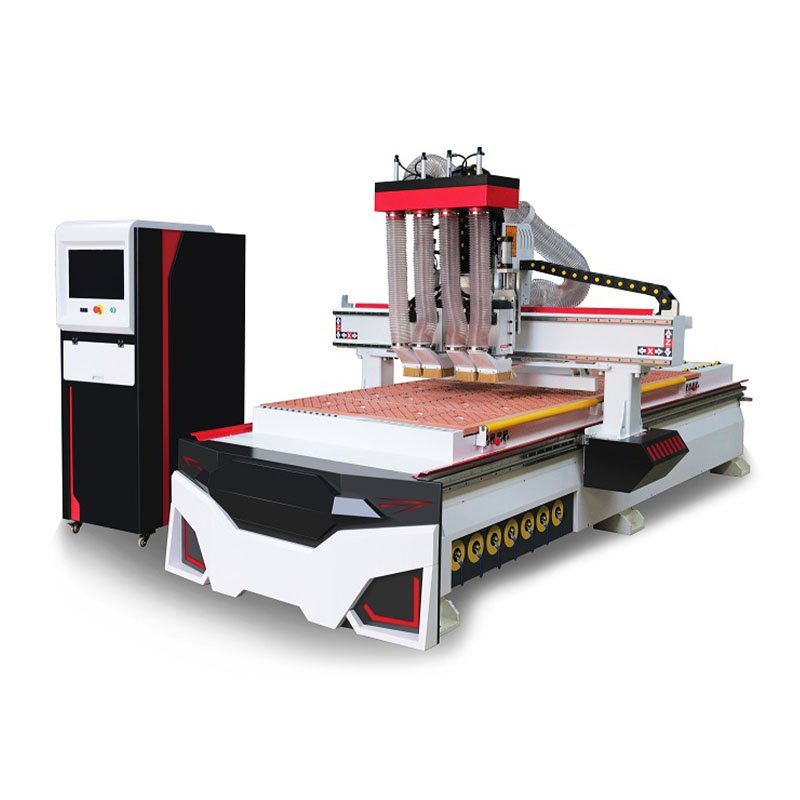

LW1328-4 multi functions woodworking center, according to the requirements of wood panel furniture production: computer number control drilling, grooving, cutting, engrave. 9kw spindle with 16 tools magazine, auto change tools rapidly. It takes zero second to change another spindle working. I has high speed for furniture body boards production.
Suitable industry：
Customized cabinets, wardrobes, wine racks, tatami, shoe cabinets, antique-and-curio shelves, bookshelves, computer tables, partitions, bedside cabinets, blister door panels, spray painted door panels, molded door panels, flat reliefs, screens, hollow partitions, handicrafts, etc.
Particle board, fiberboard, multi layer board, ecological board, oak board, finger board, wheat straw board, solid wood board, PVC board, aluminum honeycomb board, etc.
LW-1328-4 | ||
Work range | X | 1300mm |
Y | 2800mm | |
Z | 200mm | |
body | Thick steel body，quenching treatment | |

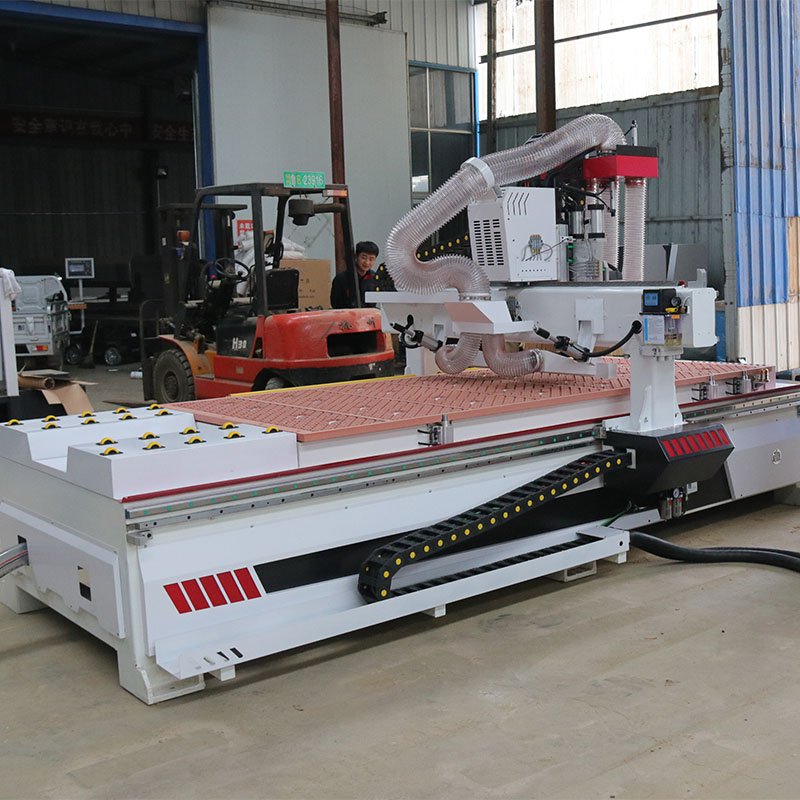

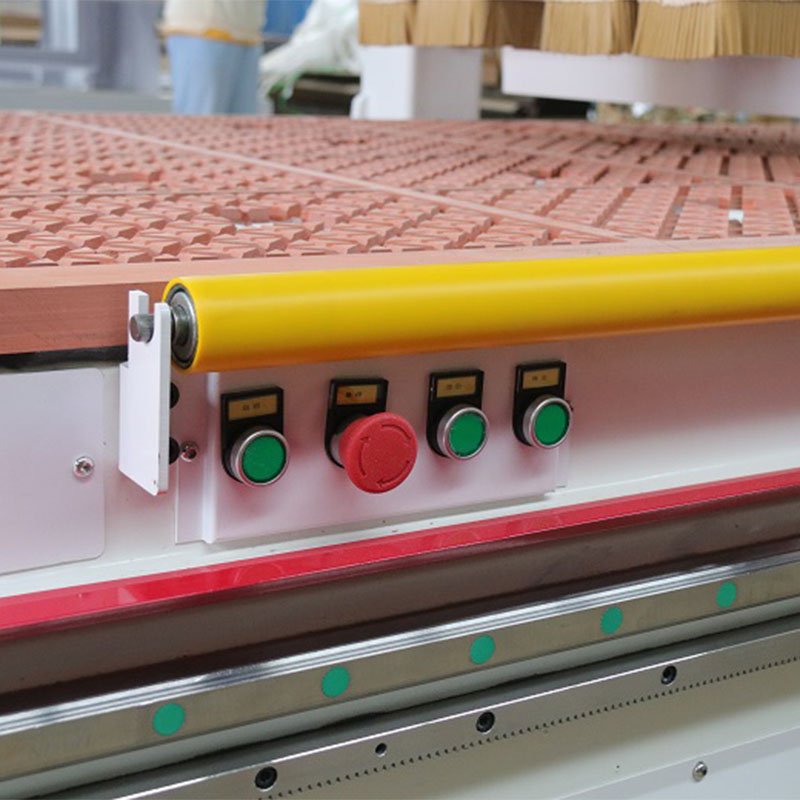

Auto feeding system | Auto feeding，one touch dust collecting，auxiliary feeding rolls | |
Transmission mode | X,Y precision diagonal rack，Z screw，Z band-type brake | |
Guide rail | 25MM | |
Frequency converter | 31KW | |
Control system | TAIWAN LNC | |
Servo drive system | 1500W X | |
1500W Y | ||
1200W Z | ||

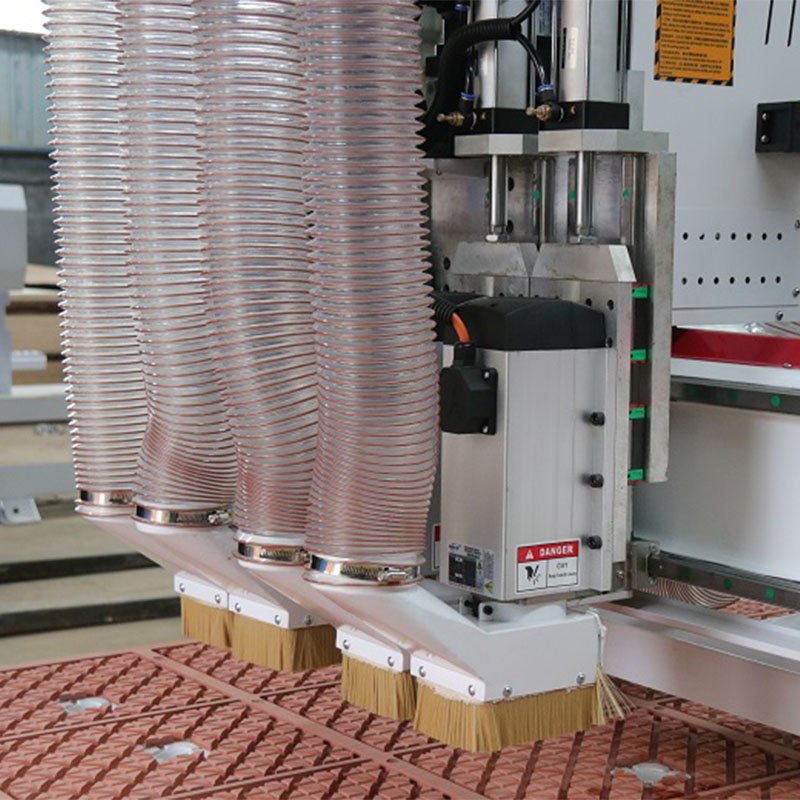

l Spindle | Cool mode | Air cooling |
power | 6kwx4 | |
l Turning speed | 6000-24000r/min | |
l Reducer | l Japan brand | |
l Rack | l 1.5M diagonal | |
l Tool depth proofreading | l Up-down floating auto tool setting instrument | |
l Oiling | l Auto circulation oiling | |
l Max move speed | l 80000mm/min | |
l Max work speed | l 30000mm/min | |
l Work accuracy | l ±0.05mm | |

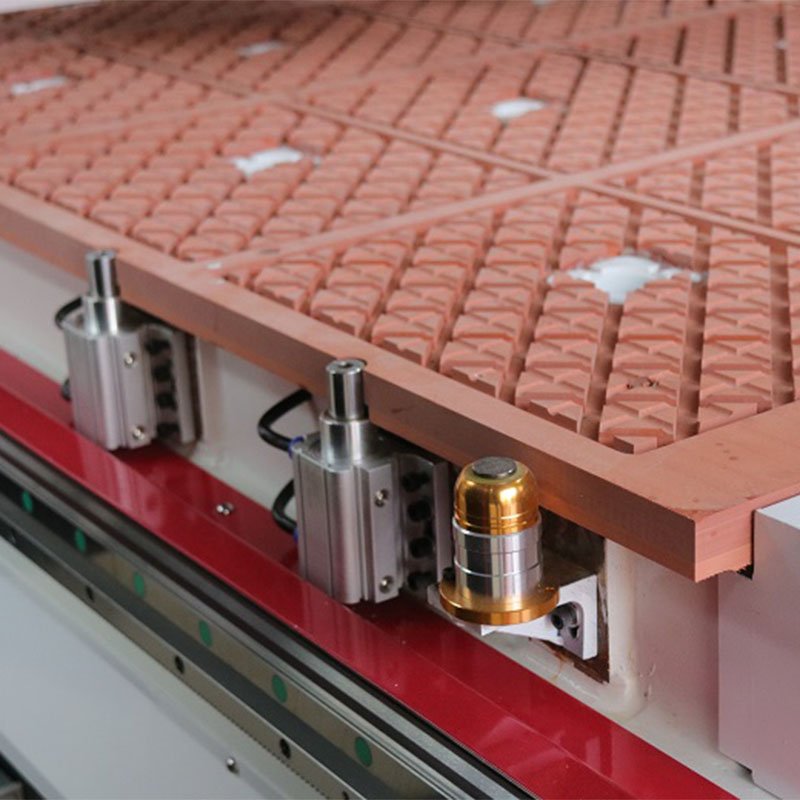

l Table structure | l Pvc vacuum adsorption table | |
l Processing code | l G code | |
l Voltage | l AC380V/3PH/50HZ | |
l Accessory | l 7.5KW water cool pump，5.5KWdust collector，tool set | |
l Out size | 4300*2200*2300mm | |
