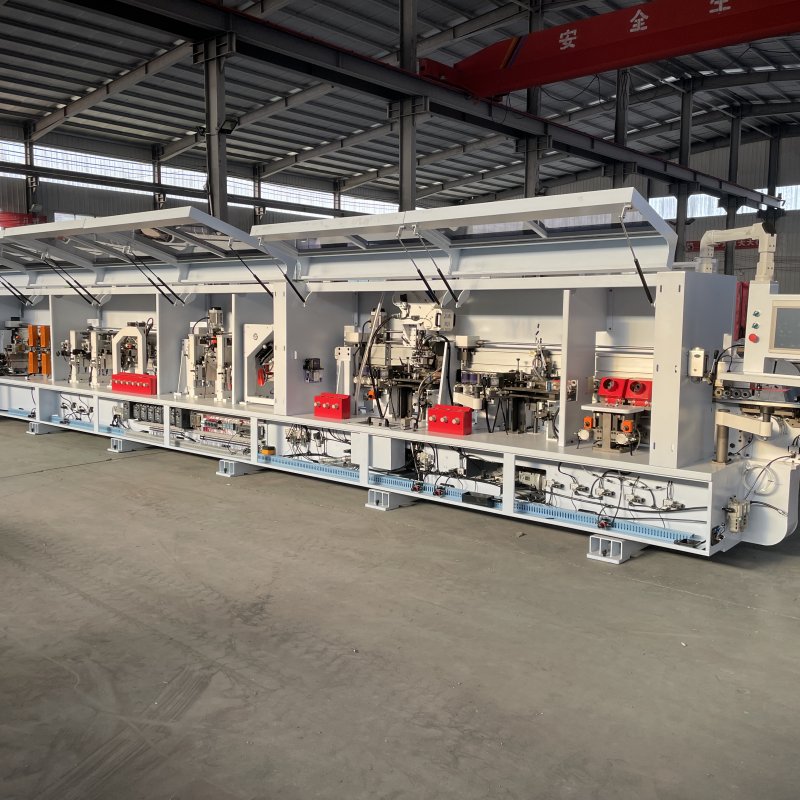

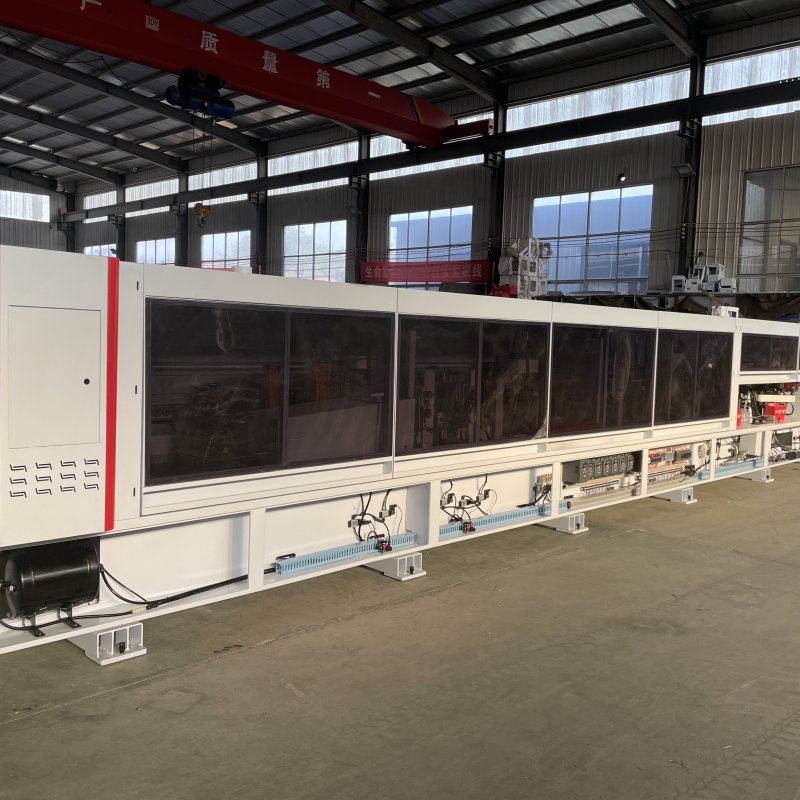

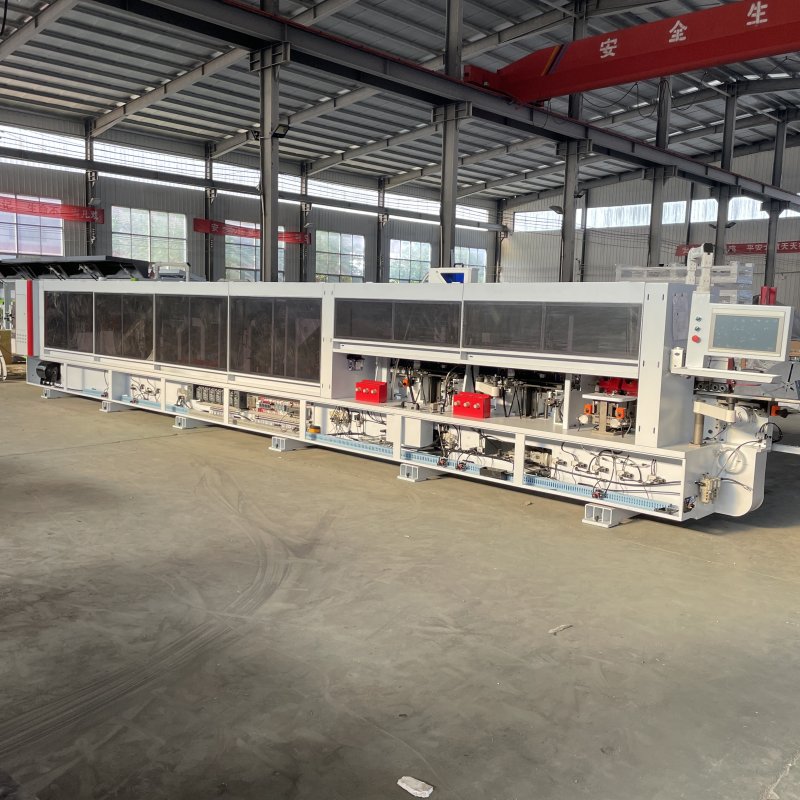

LW-868PUR Heavy-Duty high-speed and precise Automatic edge banding machine with magnetic levitation synchronous side holes

13 functions, pre milling, glueing, double guide rail end cutting, rough trimming, fine trimming, corner rounding, scraping1, scraping2, scraping3, cleaning, buffing1, buffing2.

with PUR glue machine.

it is hot selling in China market.

with magnetic levitation synchronous side holes


share:

Inquire now
+
Inquiry
Product Details

model

LW-868PUR


glue pot heating power

4.5kw+1.6kw+1.9kw

out size

10200*1000*1650mm


Gel box transmission power

0.75kw*2

weight

3.75t


Plate preheating power

0.8kw

total power

26.6kw


Conveyor Motor power

5.5kw

voltalge

380V  50Hz.


End cutting Motor power

0.37kw*212000r/min

pressure

0.7-0.9MPa


flat trimming Motor power

0.75kw*218000r/min

Workpiece length

80mm


sloping trimming Motor power

0.75kw*218000r/min

Workpiece width

150mm


buffing Motor power

0.18kw*4

Workpiece thickness

55mm


Corner Rounding Motor power

0.3kw*418000r/min

Edge banding thickness

0.4-3mm


Pre-milling Motor power

2.2kw*212000r/min

Edge sealing speed

20-22-28m/min
