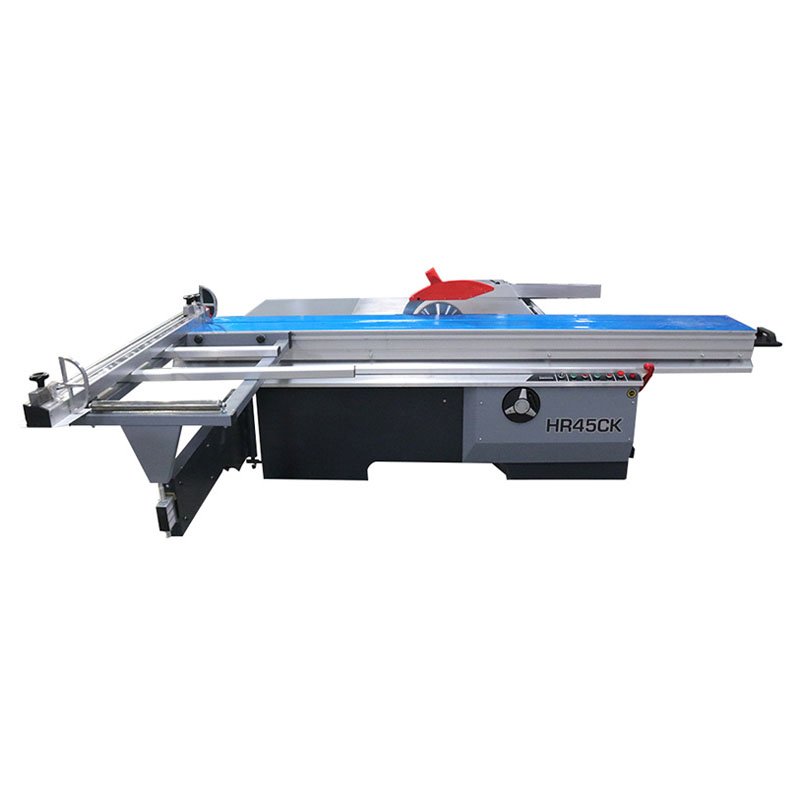

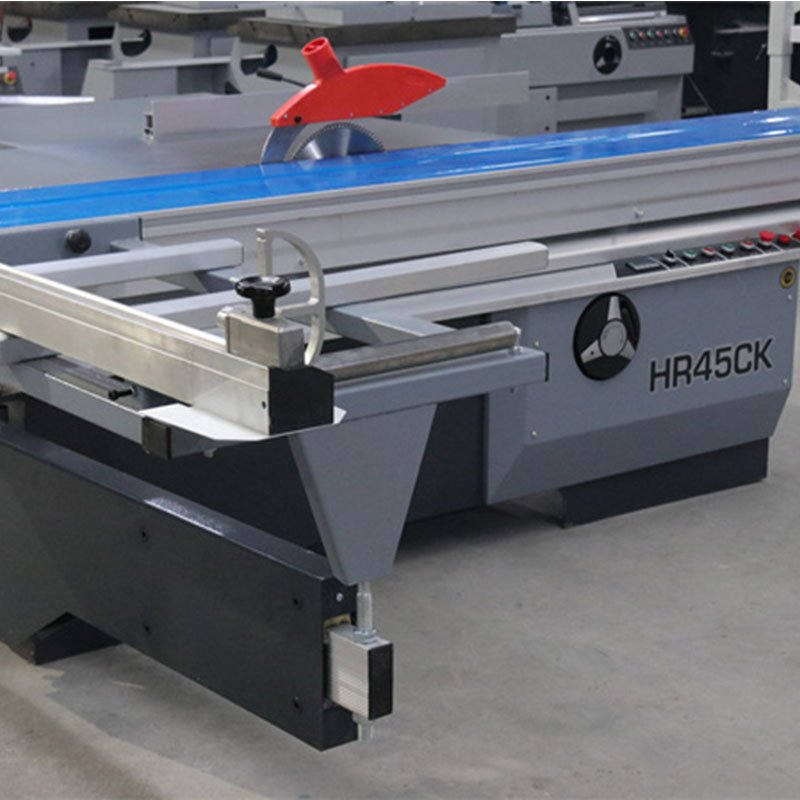

LW 45 high configuration sliding table saw

Basic type 45 degree sliding table saw

two saw blades 300/120mm

sliding table length 2800mm(optional),

max cutting length 2600mm

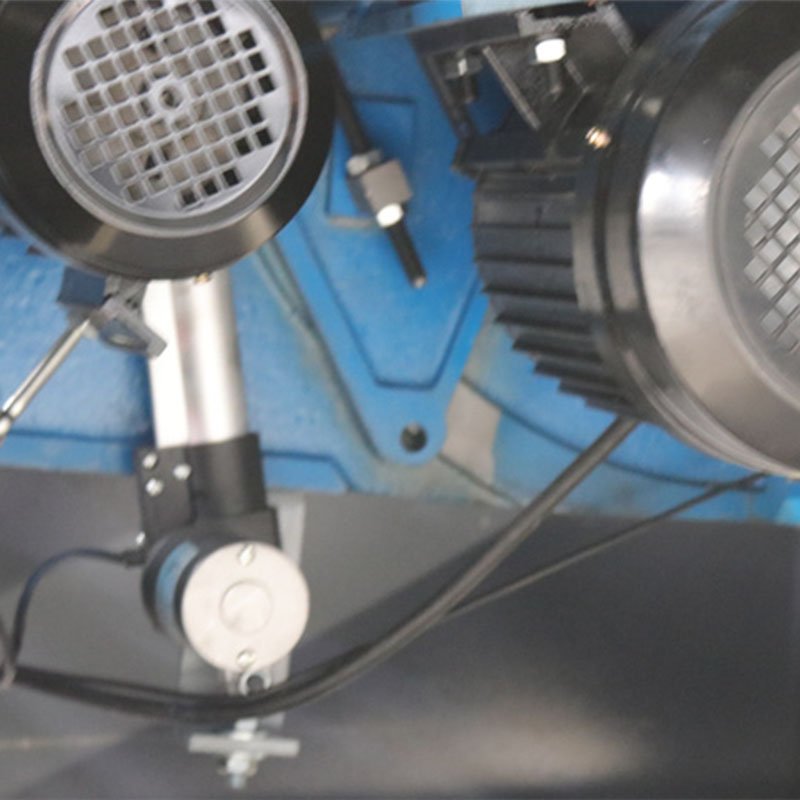

5.5+1.1 kw motor

electric lifting and manual angel adjustment,

updated sliding table support.



share:

Inquire now
+
Inquiry
Product Details

Sliding Table Saw Wood Cutting Machine

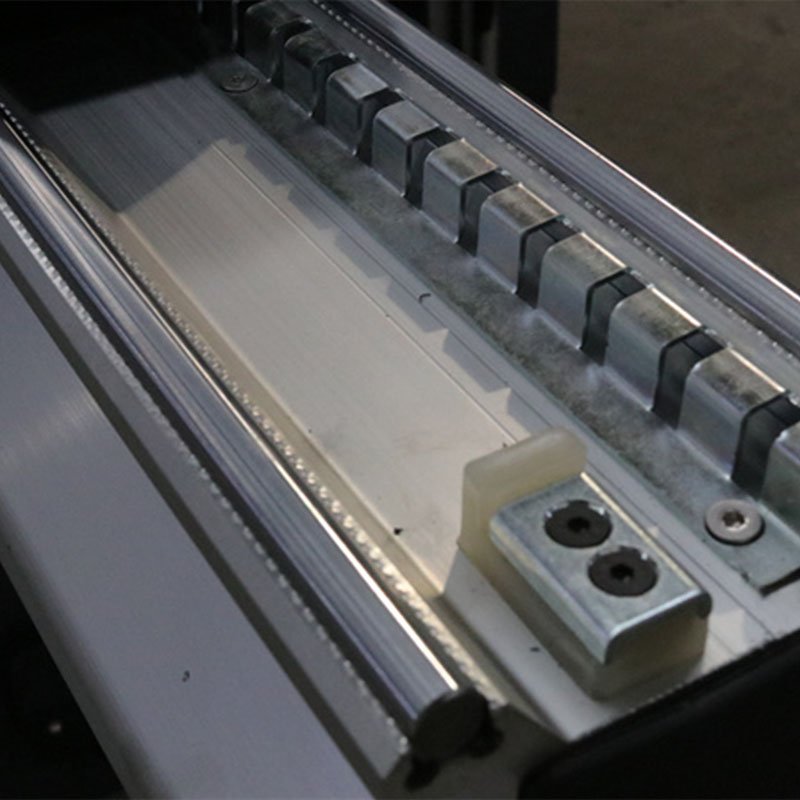

1.Movable table Guide Track is plating chromium steel balls structure, exact and durable.

2.Made of high-strength extruded steel plate , movable table is high in strength and won't bend.

3.Apply to processing all kinds of density boards,shaving boards, wood-Based Panels , ABS Panels,

PVC Panels , Organic glass plates and solid wood and others with wood structure and similar hardness.

4.With oxidation treatment , movable table surface is beautiful and hardwearing.


Configuration


ModelHR45H
Net weight(kg)550kg
Out size(mm)3000*3000*1200mm
Sliding table size3000*375mm
Maximum cutting plate length2800mm
Maximum cutting board thickness75mm
Saw blade angle45-90
Saw blade diameter300mm
Vice saw blade diameter120mm
Main saw blade speed4500/6000rpm
Vice saw blade speed6000/8000rpm
Spindle diameter30mm
Counter shaft diameter20mm
Voltage380v/50Hz  3Phase
Electric lift of main saw blade
Digital display angle
European seat sliding table
Auxiliary workbenchTwo pieces
Aluminum sliding table
Chrome-plated round rod guide
Pure copper motor
Main saw power5.5KW
Scribing saw power1.1KW
