13 functions,
pre milling, glueing, double guide rail end cutting, rough trimming, fine trimming, corner rounding, scraping1, scraping2, scraping3, cleaning, buffing1, buffing2.
with PUR glue machine.
it is hot selling in China market.

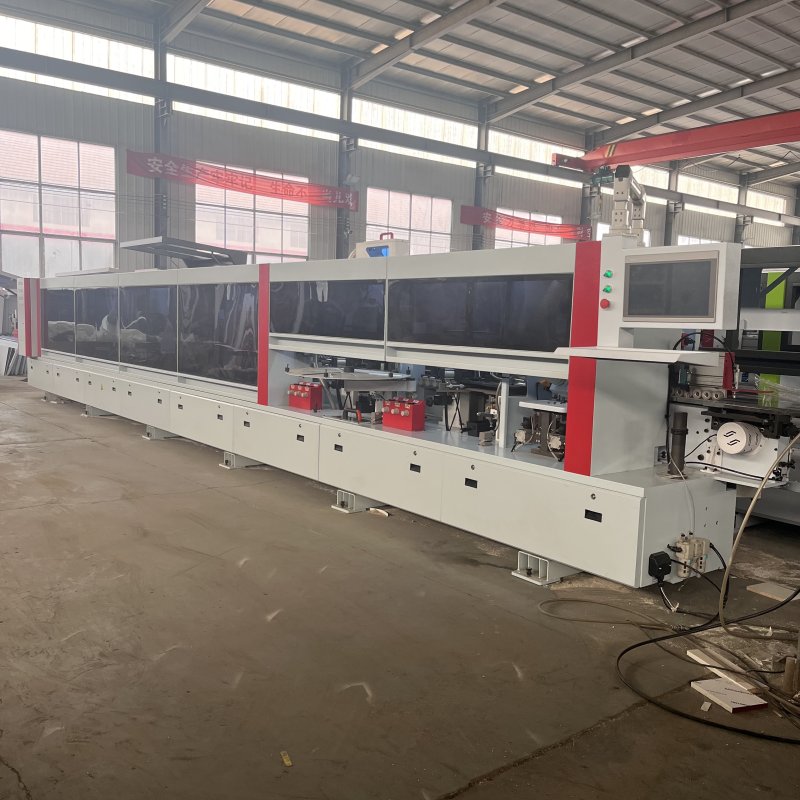

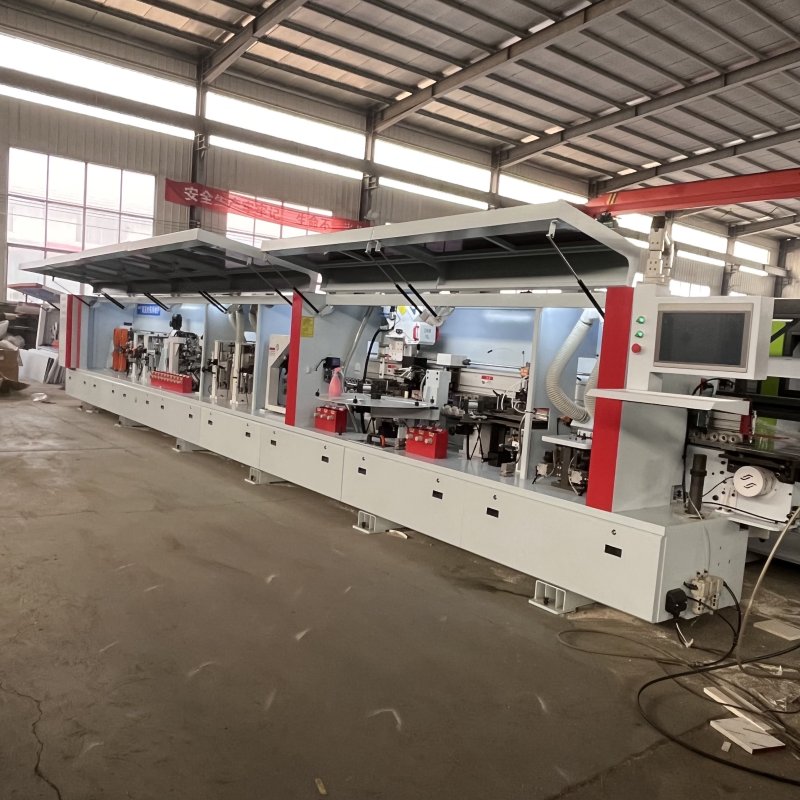

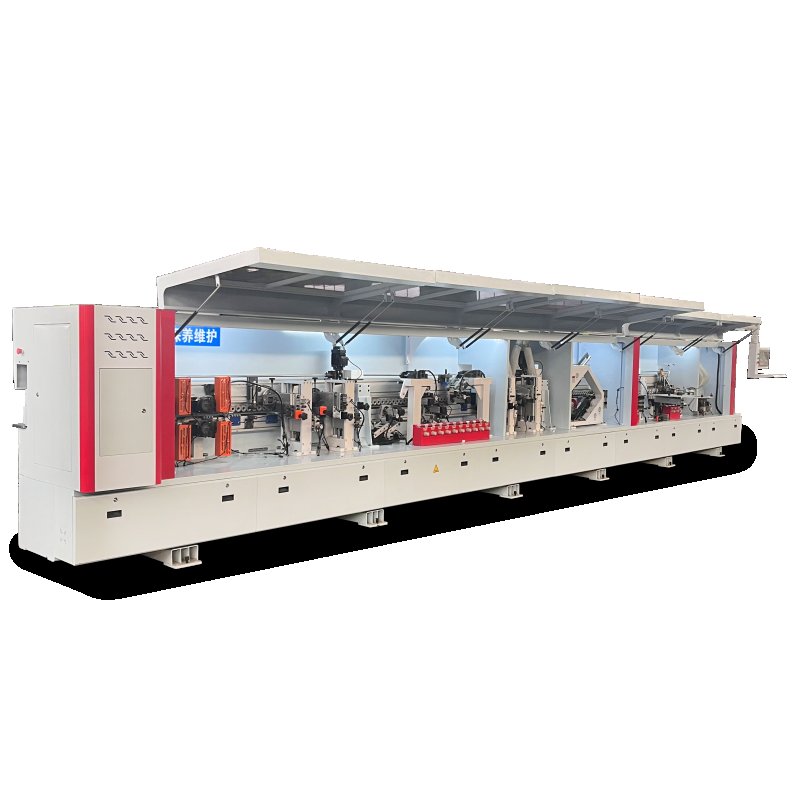

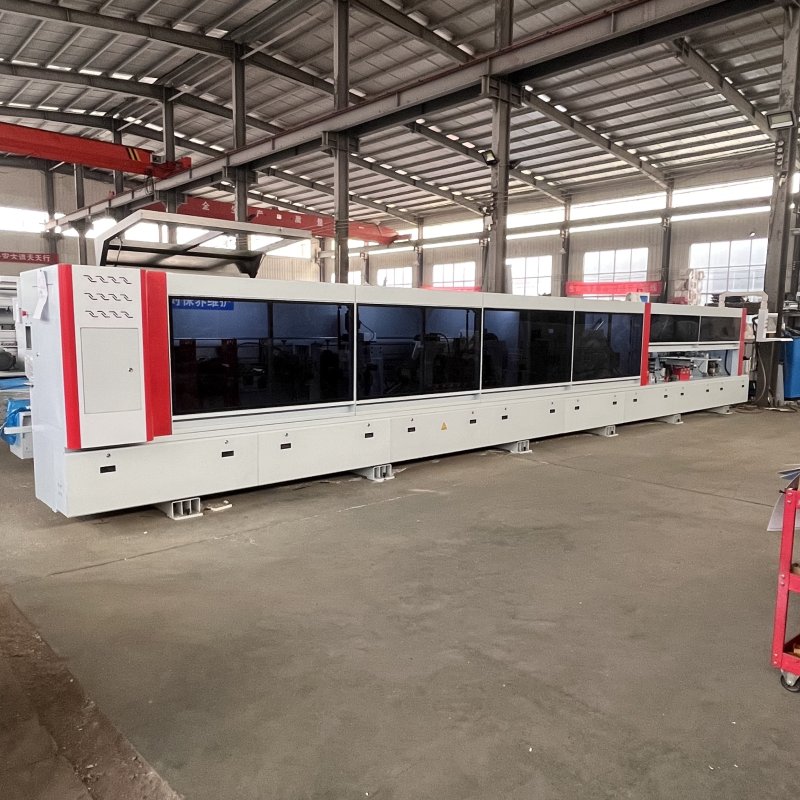

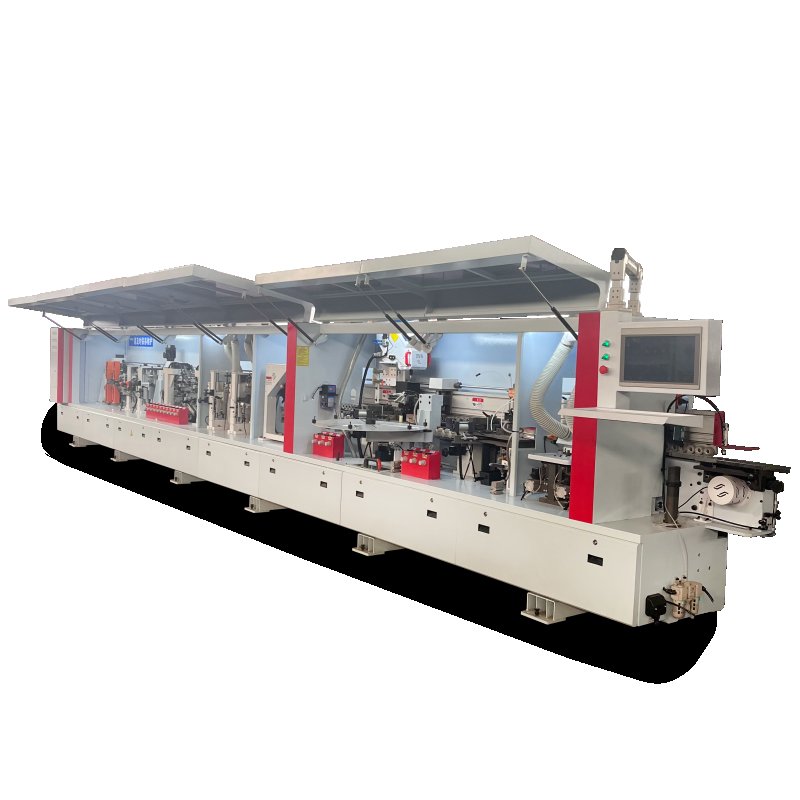

LW-968PUR
automationedge banding machine function：Pre-milling, Quick melting glue pot, No-clean PUR glue axle, PUR glue machine, high speed Double guide rail End cutting, Fine trim, Rough trim, Four motor Corner Rounding, scraping123, Automatic wire breakage, pneumatic buffing，
model: | LW-968PUR | glue pot heating power: | 4.5kw+1.6kw+1.9kw | |
outline dimension: | 11000*1100*1650mm | Gel box transmission power: | 0.75kw*2 | |
weight: | 3.75t | Plate preheating power | 0.8kw | |
total power: | 26.6kw | Conveyor power | Motor | 5.5kw |
source: | 380V 50Hz. | End cutting Motor power: | 0.37kw*2(12000r/min) | |
pressure: | 0.7-0.9MPa | Fine trim Motor power | 0.75kw*2(18000r/min) | |
Workpiece length: | ≥80mm | Rough trim Motor power | 0.75kw*2(18000r/min) | |
Workpiece width: | ≥150mm | buffing power | Motor | 0.18kw*4 |
Workpiece thickness: | ≤55mm | Corner Rounding Motor power: | 0.3kw*4(18000r/min) | |
Edge banding thickness: | 0.4-3mm | Pre-milling Motor power | 2.2kw*2(12000r/min) | |
Edge sealing speed: | (20/22/28)m/min | |||
