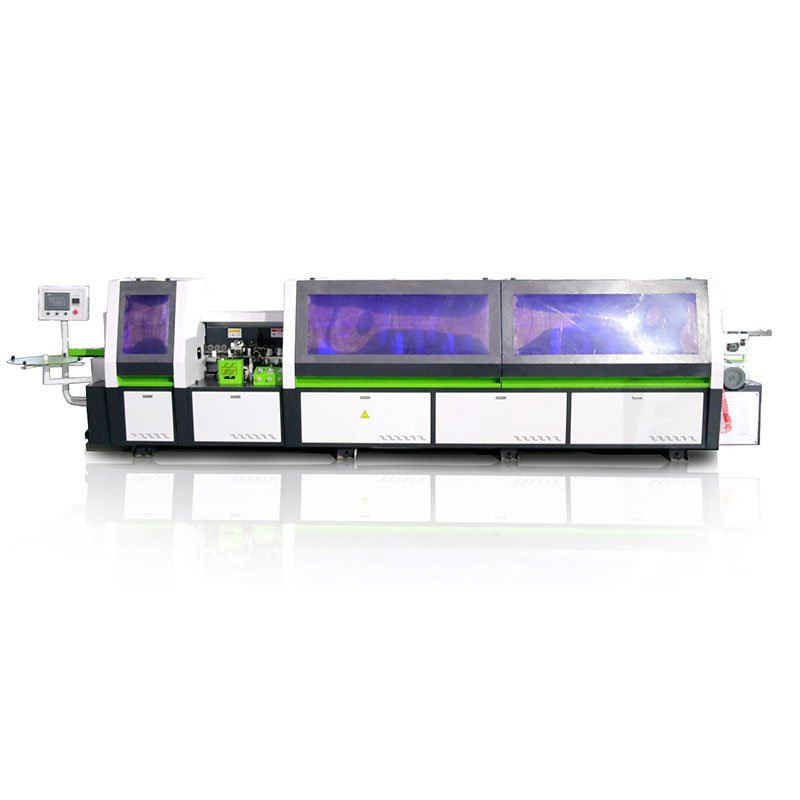

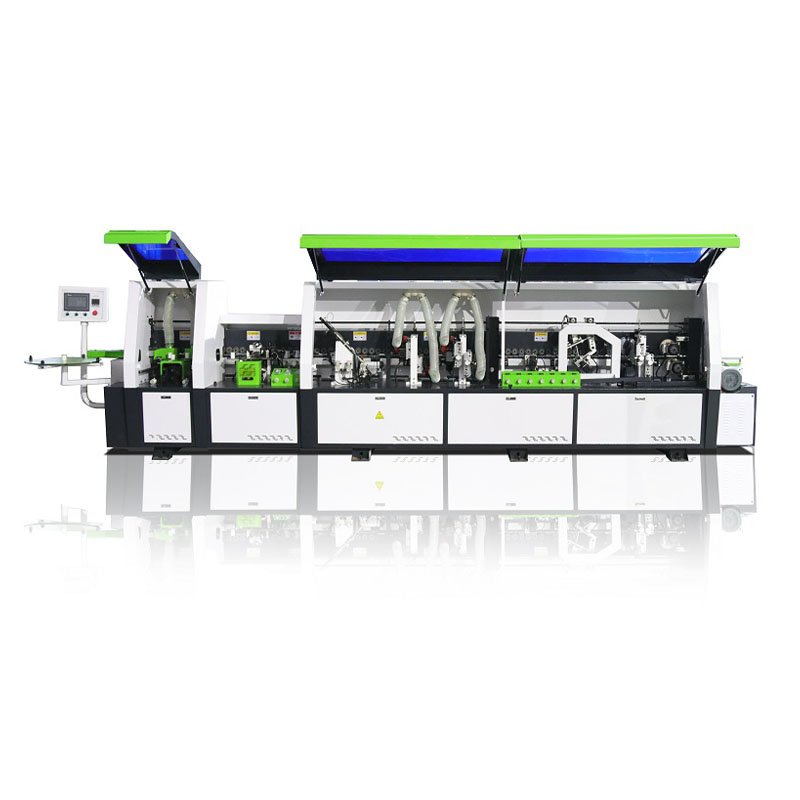

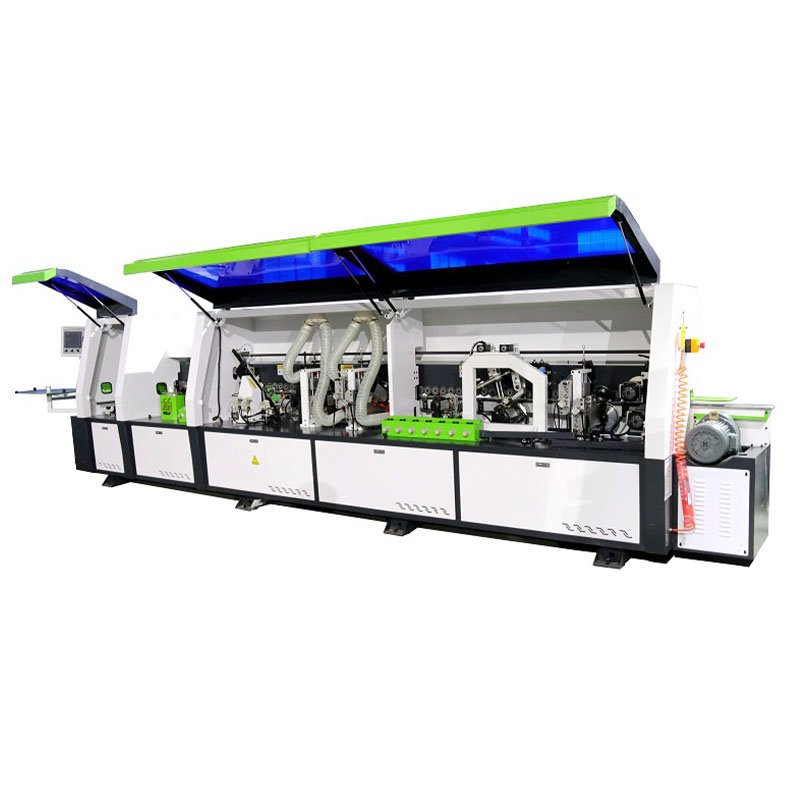

LW-368YJ Light-Duty Automatic edge banding machine

8 functions,light type automatic edge banding machine

Product Highlights:

★It is mainly used for cabinet edge banding, and can be used for some PET cabinet door edge banding. (Economical and Practical)

Suitable industry:

★Suitable for board furniture decoration customization of all kinds of cabinet board sealing edge.

Applicable materials:

★Particle board, fiber board, multi-layer board, ecological board, oak board, finger joint board, straw board, solid wood board, PVC board, etc.

share:

Inquire now
+
Inquiry
Product Details

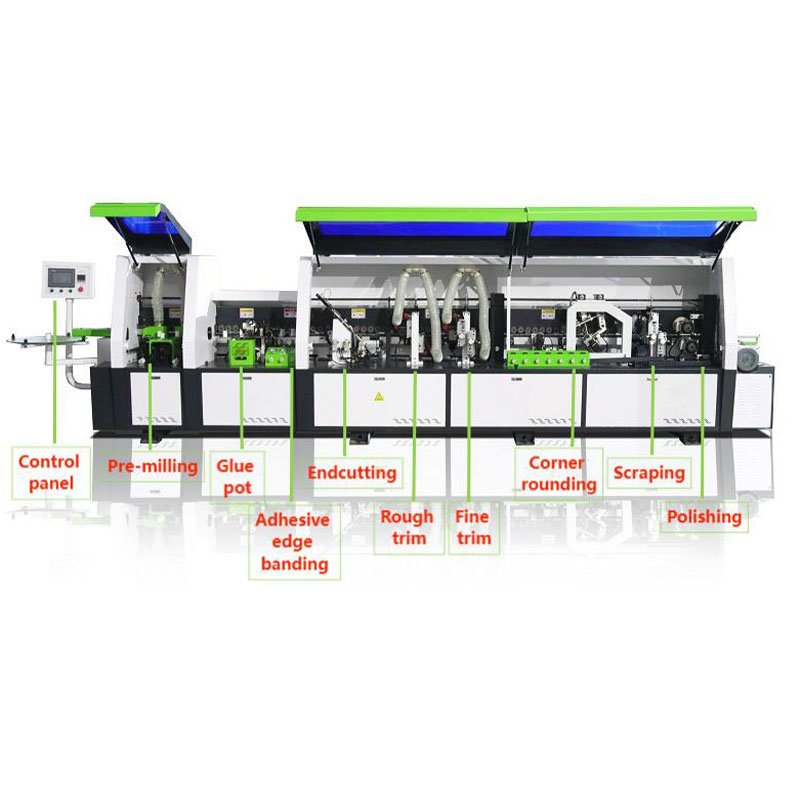

LW-368YJ automatic edge banding machine: Pre-milling, underplaced glue pot, End cutting, Rough trimming, Fine trimming, Corner Rounding, Scraping and Polishing.



Machine type:

LW-368YJ

Glue box heating power:

1.5kw

Dimension:

6500*900*1550mm

Glue box transmission power:

0.37kw

Weight:

1.78t

Plate preheating power:

0.25kw

Total power:

12.62kw

Conveyer motor power:

2.2kw

Voltage:

380V  50Hz.

Pre-milling motor power:

1.8kw*2  (12000r/min)

Air pressure:

0.7-0.9MPa

Endcutting motor power:

0.37kw*2(12000r/min)

Sheet Length:

≥80mm

Rough trimming motor power:

0.75kw*2(18000r/min)

Sheet Width:

≥40mm

Fine trimming motor power:

0.75kw*2(18000r/min)

Sheet Thickness:

12-55mm

Corner Rounding motor power:

0.3kw*2(18000r/min)

Edge Band Thickness:

0.4-3mm

Polishing motor power:

0.18kw*2

Feed Rate:

16m/min
