Product Highlights：
Double-set glue pots, , 8 functions, With pre-milling and corner rounding.
Suitable industry：
It is suitable for panel furniture decoration customization, high-gloss board, PET skin-feeling board and other cabinet door edge banding, and cabinet body edge banding.
Applicable materials：
wood based panel, solid wood, PVC board, etc.

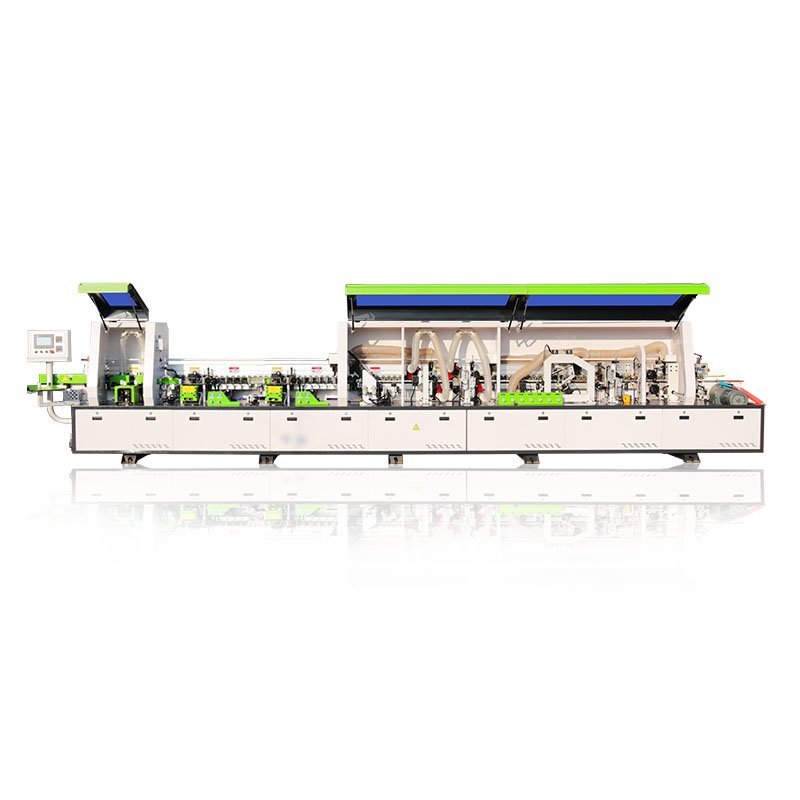

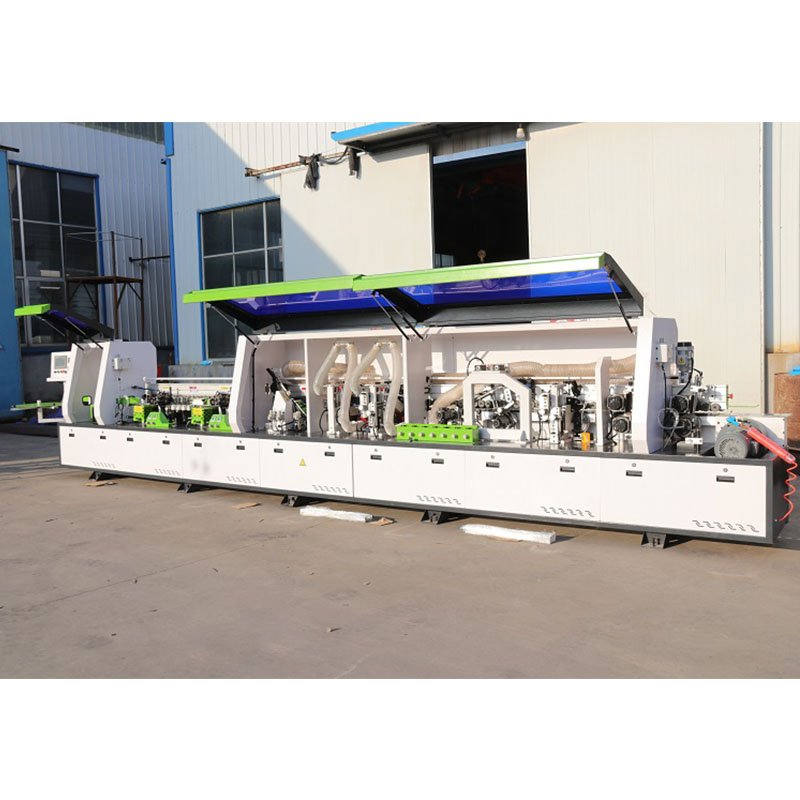

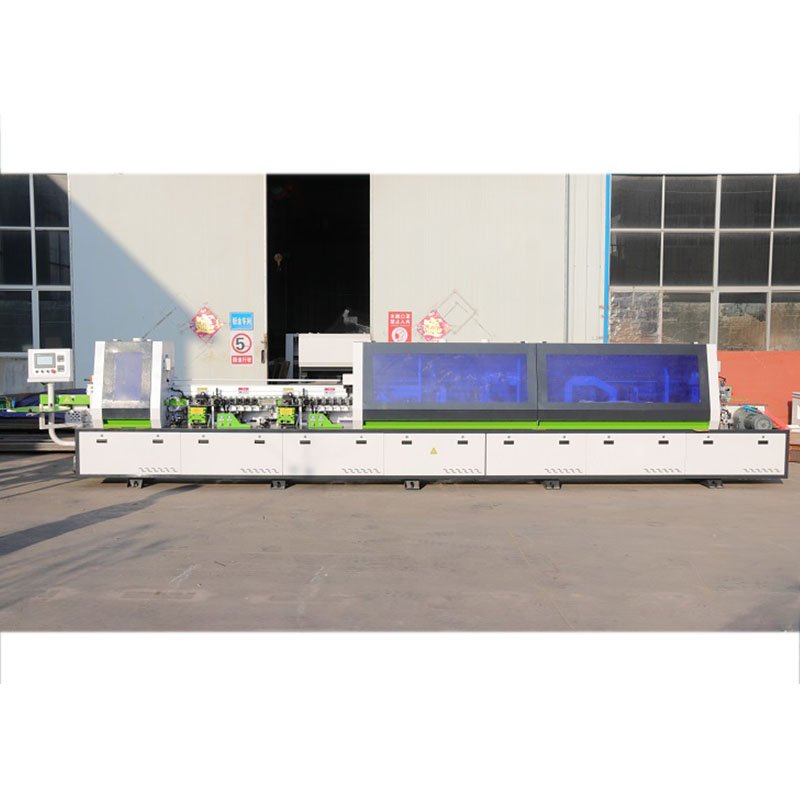

LW-398
functions: Pre-milling, Double underplaced glue pot, End cutting, Rough trimming, Fine trimming, Corner Rounding, Scraping, cleaning, and Polishing.
Machine type： | LW-398 | Glue box heating power： | 1.5kw*2 |
Dimension： | 9000*900*1550mm | Glue box transmission power： | 0.37kw |
Weight： | 2.35t | Plate preheating power： | 0.25kw |
Total power： | 19.7kw | Conveyer motor power： | 3.7kw |
Voltage： | 380V 50Hz. | Pre-milling motor power： | 1.8kw*2（12000r/min |
Air pressure： | 0.7-0.9MPa | Endcutting motor power： | 0.37kw*2（12000r/min） |
Sheet Length： | ≥80mm | Rough trimming motor power： | 0.75kw*2（18000r/min） |
Sheet Width： | ≥40mm | Fine trimming motor power： | 0.75kw*2（18000r/min） |
Sheet Thickness： | 12-55mm | Corner Rounding motor power： | 0.3kw*2（18000r/min） |
Edge Band Thickness： | 0.4-3mm | Polishing motor power： | 0.18kw*2 |
Feed Rate： | 18/20/22m/min |
