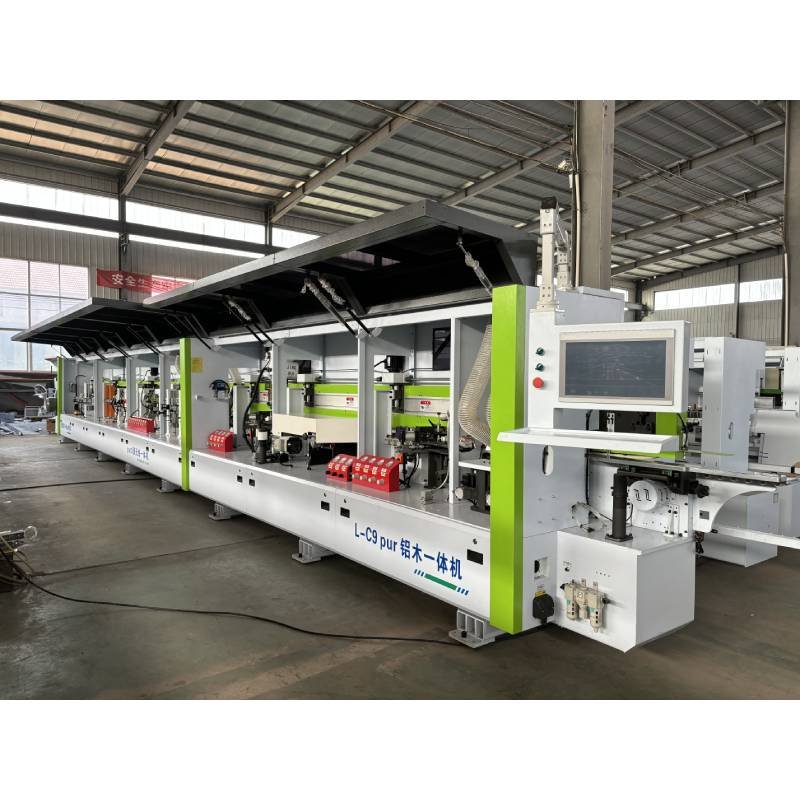

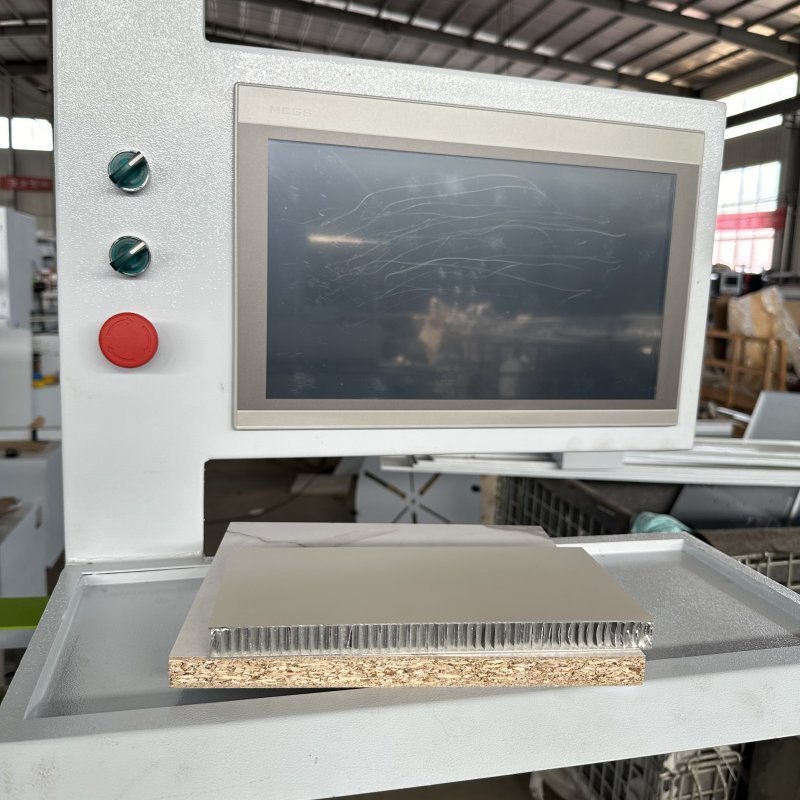

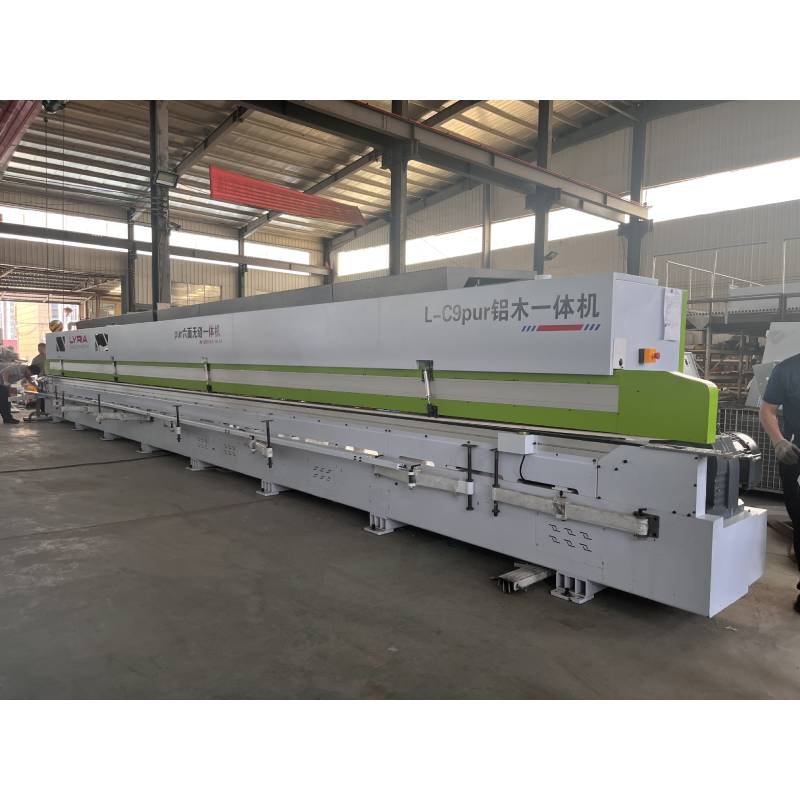

LW-988PUR large automatic edge banding machine aluminum honeycomb board wood board universal aluminum wood integrated machine

14 functions,


pre milling, glueing, double guide rail end cutting, rough trimming, fine trimming, corner rounding, scraping1, scraping2, scraping3, cleaning, buffing1, buffing2, synchronous side hole.


with PUR glue machine.


it is hot selling in market.

share:

Inquire now
+
Inquiry
Product Details

Machine type

LW-988PUR


Glue box heating power

1.8kw

Dimension

14000*1000*1850mm


Glue box transmission power

0.75kw*2

Weight

6.2t


Plate preheating power

0.3kw*2

Total power

35.50kw


Conveyer motor power

11kw

Voltage

380V  50Hz.


Pre-milling motor power

2.2kw*2  12000r/min

Air pressure

0.7-0.9MPa


Endcutting motor power

0.55kw*212000r/min

Sheet Length

120mm


Rough trimming motor power

0.75kw*218000r/min

Sheet Width

60mm


Fine trimming motor power

0.75kw*218000r/min

Sheet Thickness

9-60mm


Corner Rounding motor power

0.35kw*2 18000r/min

Edge Band Thickness

0.4-3mm


Polishing motor power

0.18kw*2

Feed Rate

18-26m/min


Synchronous side hole:

2.2kw
