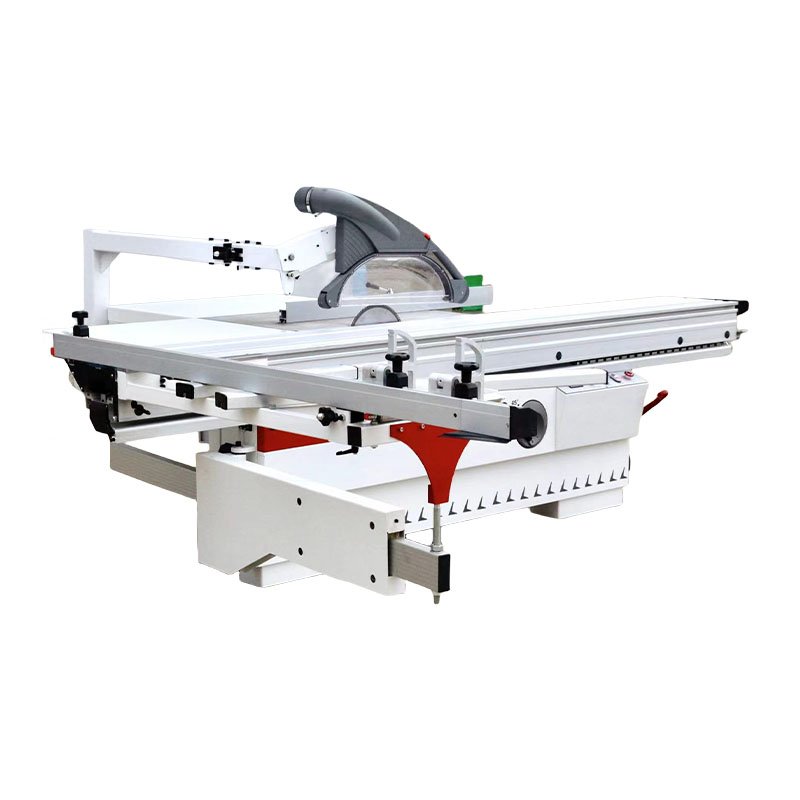

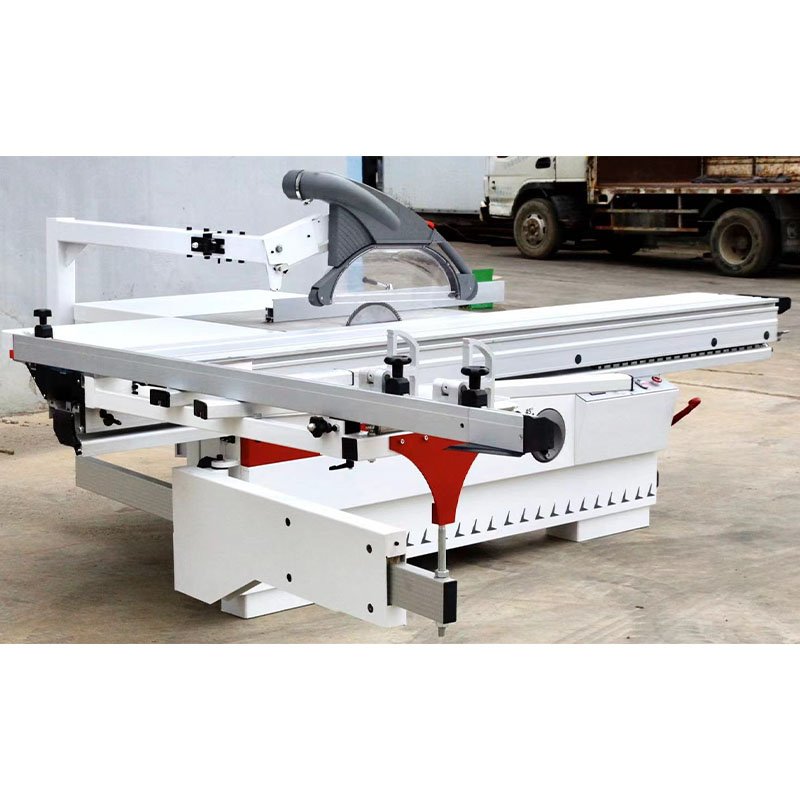

LWMS45 degree updated high configuration

updated type 45 degree sliding table saw

two saw blades 300/120mm

sliding table length 3200-3800mm(optional),

max cutting length 3000-3600mm

5.5+1.1 kw motor

electric lifting and angel adjustment

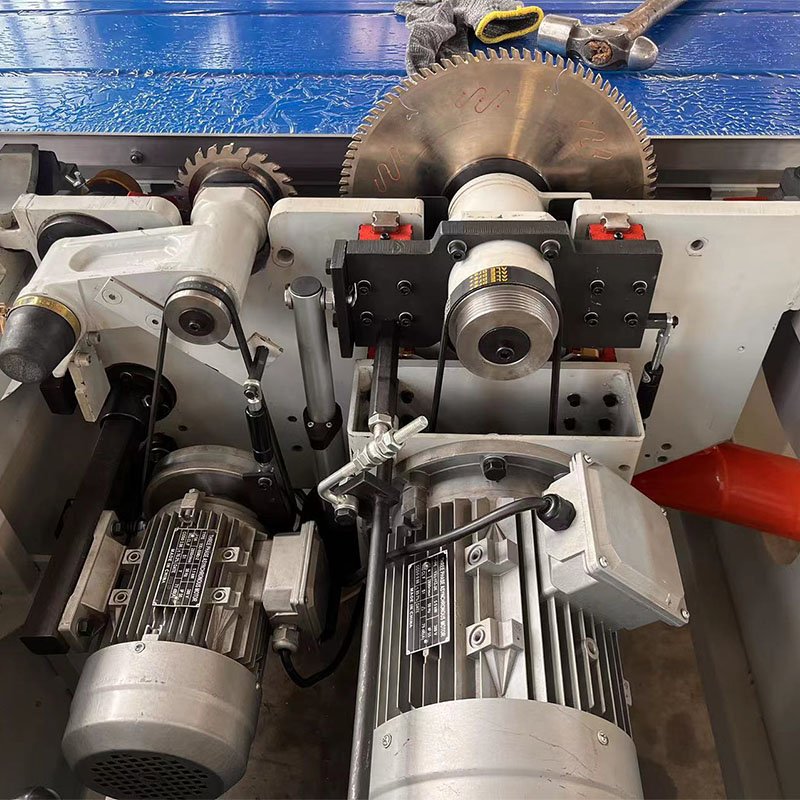

updated motor support structure.


share:

Inquire now
+
Inquiry
Product Details

Configuration


ModelLWMS45
Net weight(kg)800kg
Out size(mm)3200*1200*1000mm
Sliding table size3200*390mm
Maximum cutting plate length3000mm
Maximum cutting board thickness75mm
Saw blade angle45-90
Saw blade diameter300mm
Vice saw blade diameter120mm
Main saw blade speed4500/6000rpm
Vice saw blade speed6000/8000rpm
Spindle diameter30mm
Counter shaft diameter20mm
Voltage380v/50Hz  3Phase
Electric lift of main saw blade

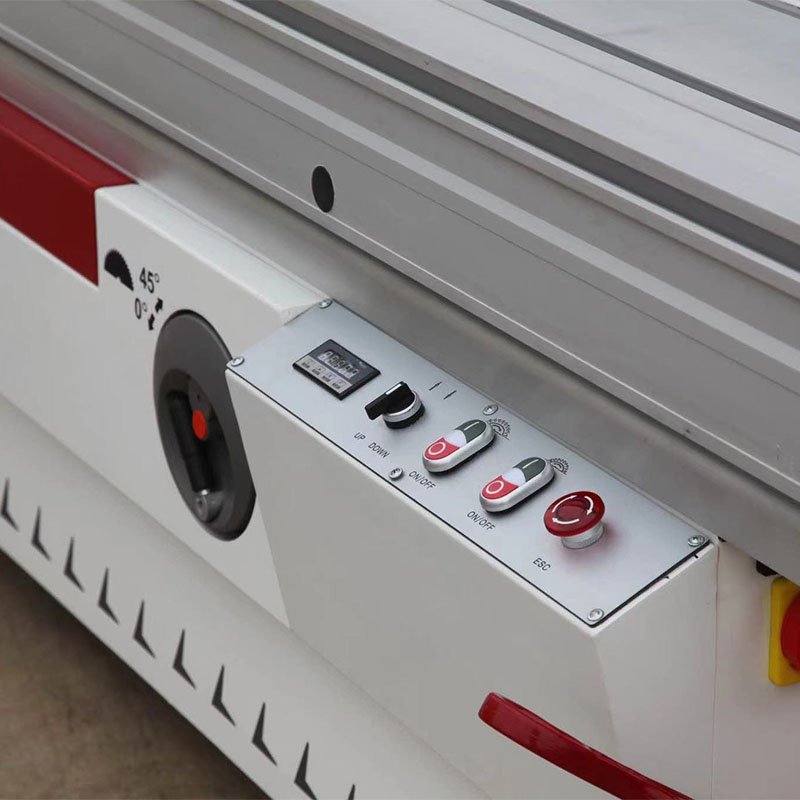

Digital display angle

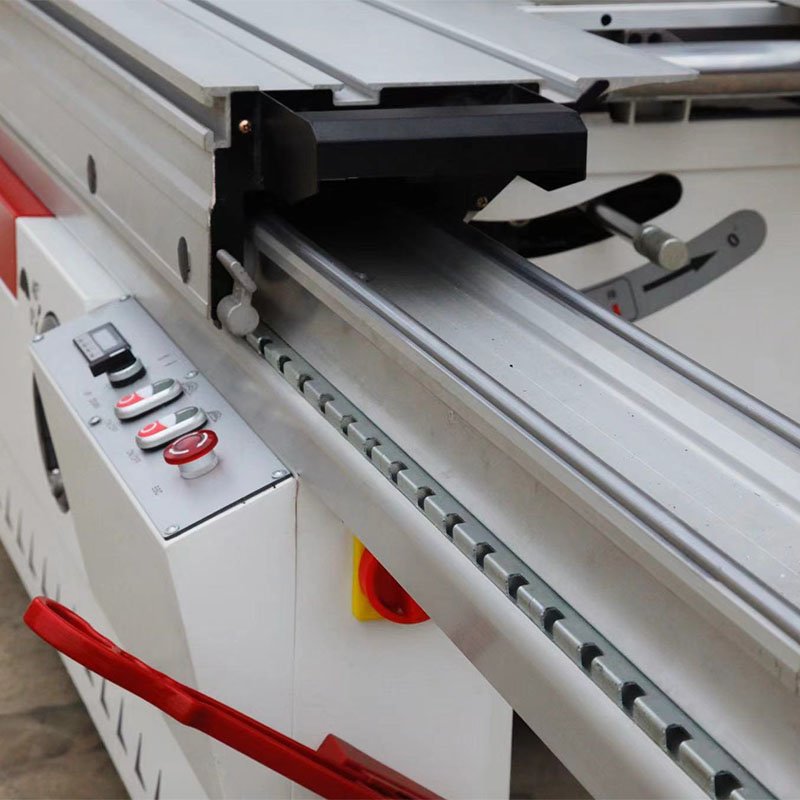

European seat sliding table
Auxiliary workbenchTwo pieces
Aluminum sliding table
Chrome-plated round rod guide
Pure copper motor
Main saw power5.5KW
Scribing saw power1.1KW
