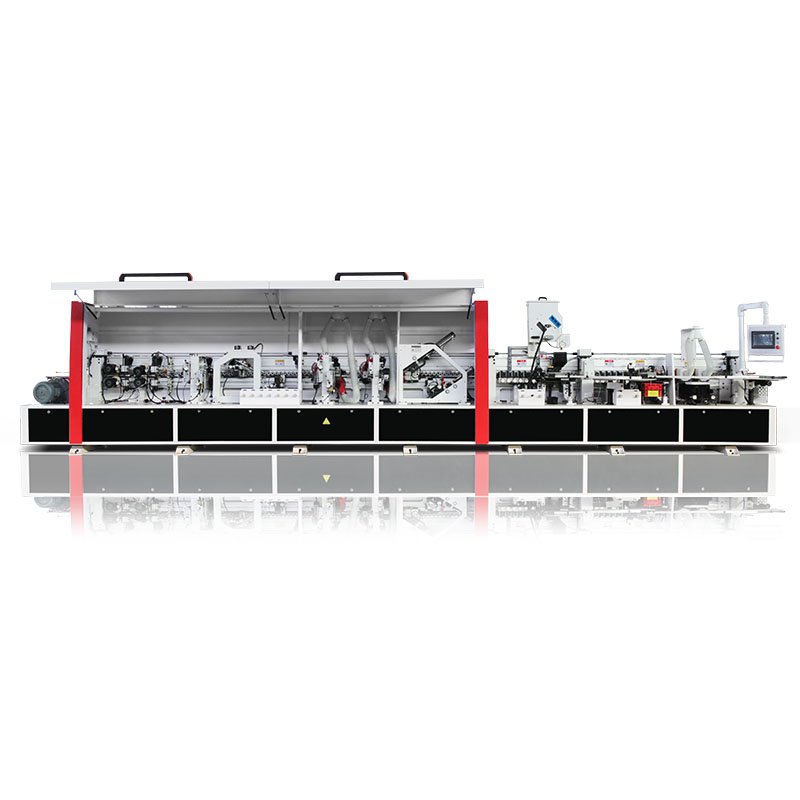

LW-668 Heavy-Duty Automatic edge banding machine

8 functions,

with one upper glue pot and fast melting device,

one underplaced glue pot.


share:

Inquire now
+
Inquiry
Product Details

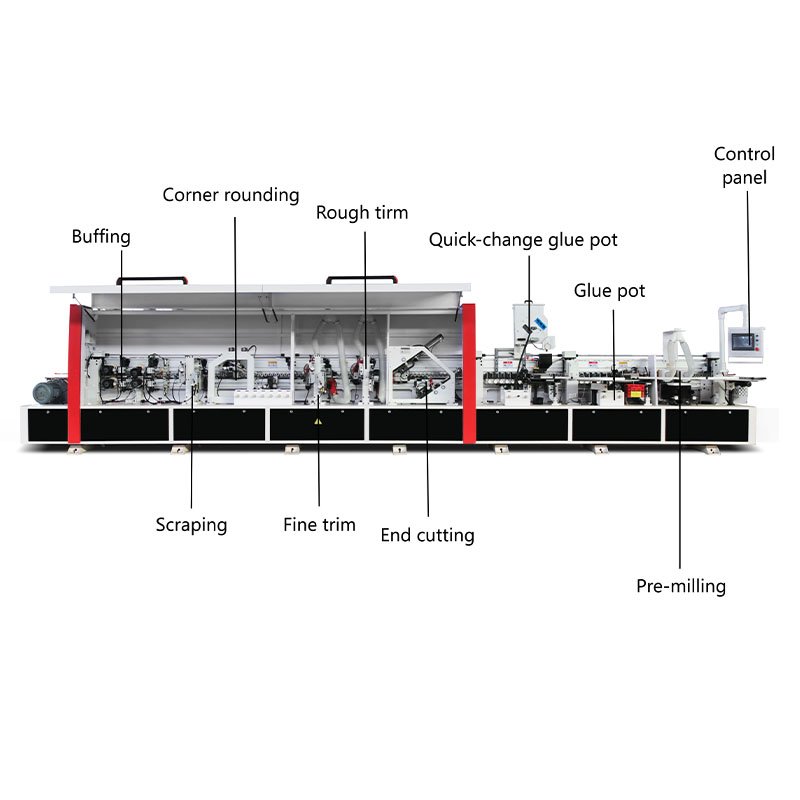

LW-668full-automationedge banding machine function :Pre-milling、Quick melting glue pot、 Adhesive pot below、high speed Double guide rail End cutting、Fine trim、Rough trim、Corner Rounding、 scraping、Automatic wire breakage、flexibility scraping、Double pneumatic buffing,This was also added pneumatic Adjusting the cutter blade、Pre-milling Blowing Dust、Directional blowing、cleaning device、Plate preheating baking lamp etc. function .

The PUR melting can be selected according to the requirements、Cold adhesive edge sealing、 Laser edge sealing、Four motor Corner Rounding、slotting、buffing wax、Lateral aperture、Track crossbeam etc.function .

The body is made of 20mm international high-strength steel plate, with an exclusive welding process and a frame style body structure.


model:

LW-668

glue pot heating

power:

1.6kw+1.6kw+1.9kw

outline

dimension:

9200*1000*1650mm

Gel          box transmission

power:

0.75kw*2

weight:

3.4t

Plate   preheating

power

0.8kw

total power:

22.55kw

Conveyor

power

Motor

5.5kw

source:

380V 50Hz.

End cutting Motor

power:

0.37kw*2(12000r/min)

pressure:

0.7-0.9MPa

Fine trim Motor power

0.75kw*2(18000r/min)

Workpiece

length:

≥80mm

Rough trim Motor

power

0.75kw*2(18000r/min)

Workpiece

width:

≥150mm

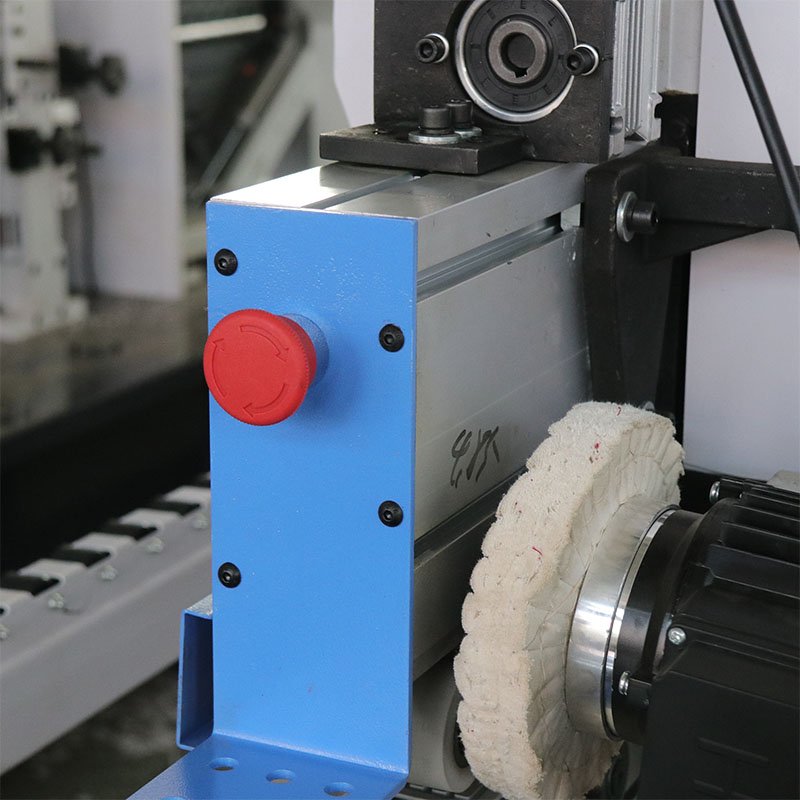

buffing

power

Motor

0.18kw*4

Workpiece

thickness:

≤55mm

Corner   Rounding Motor power:

0.3kw*2(18000r/min)

Edge banding

thickness:

0.4-3mm

Pre-milling Motor

power

2.2kw*2(12000r/min)

Edge   sealing speed:

(20-22-28)m/min
