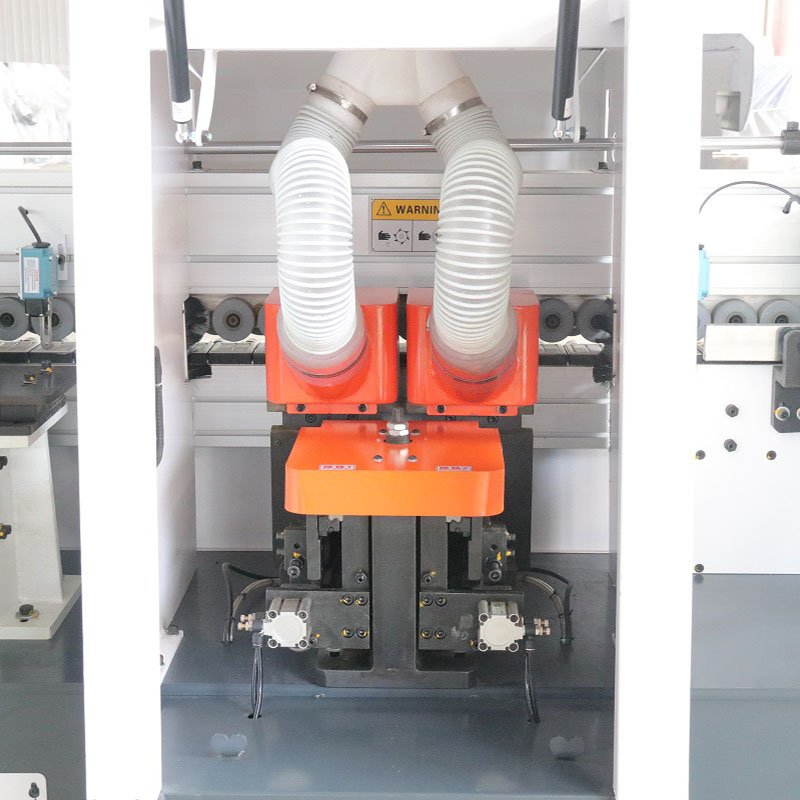

  • _0005_5
  • _0003_7
  • _0004_6
  • _0008_1
  • _0001_IMG_8270
  • 1_0002_IMG_8272
  • 1_0001_2
  • 1_0000_3
  • _0002_468yj
  • _0005_5
  • _0003_7
  • _0004_6

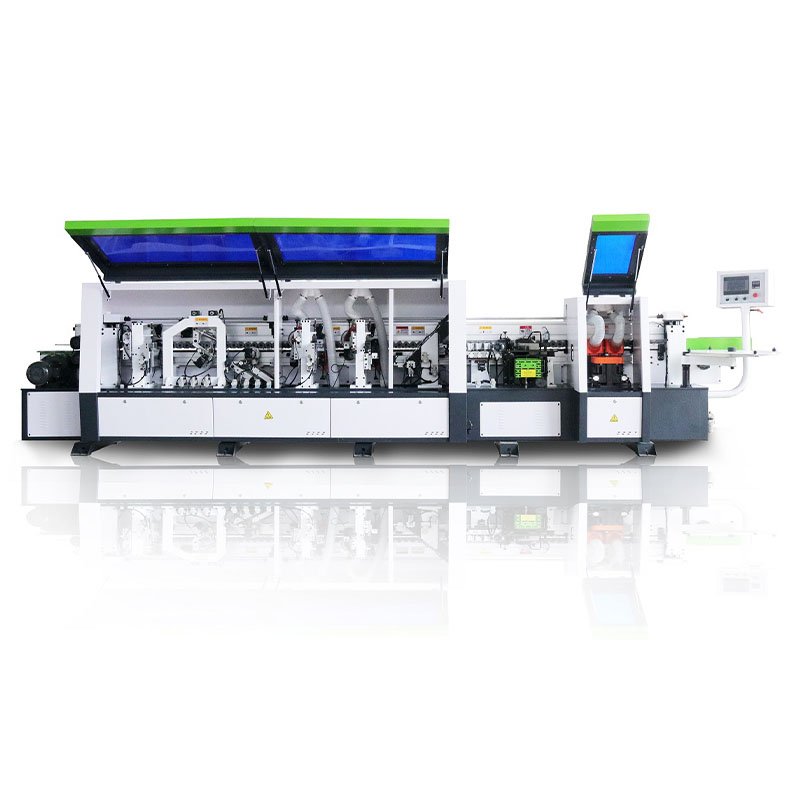

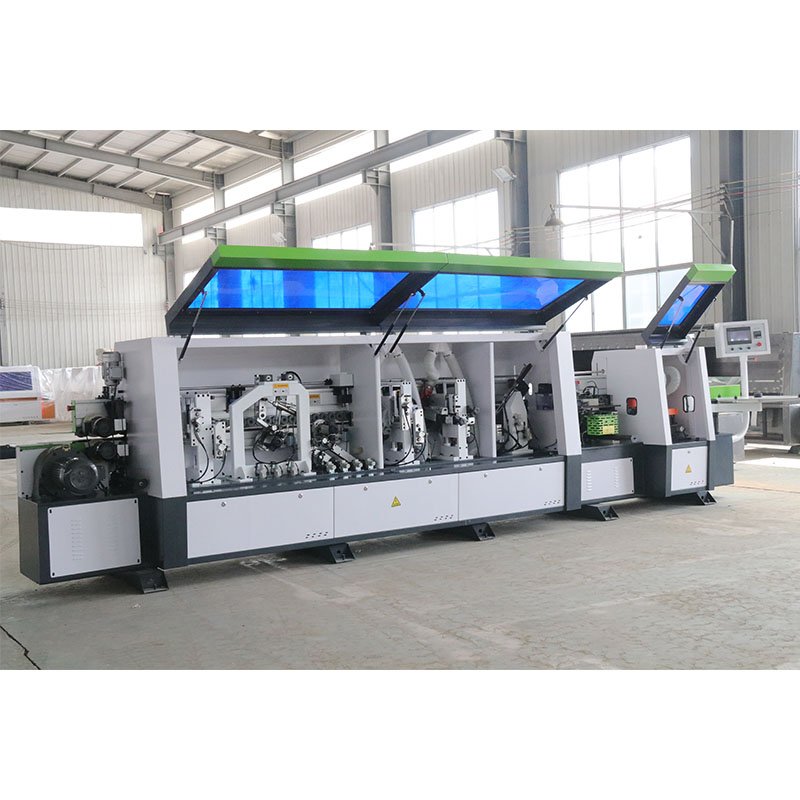

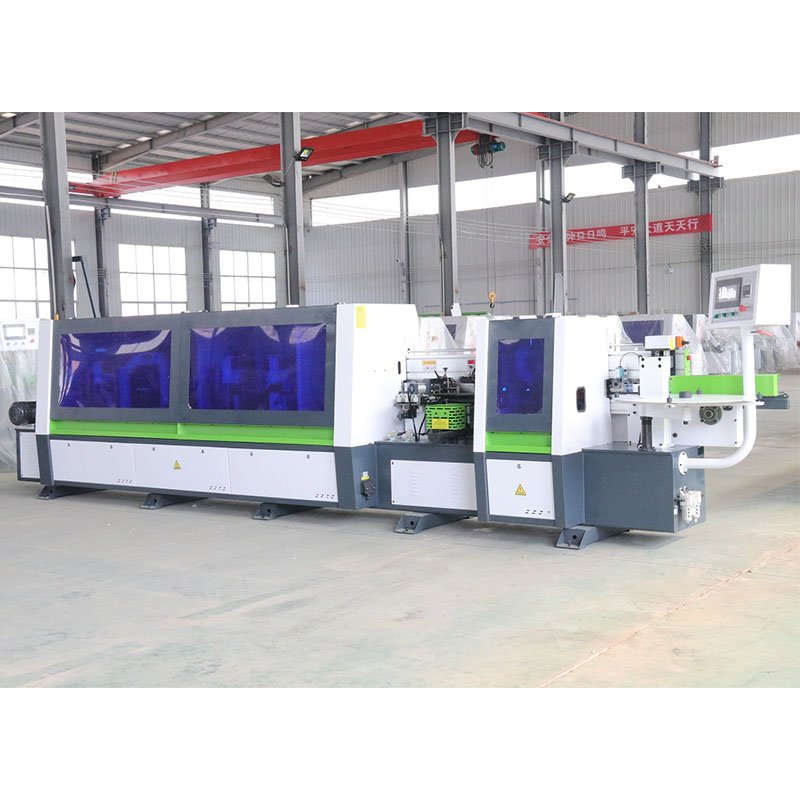

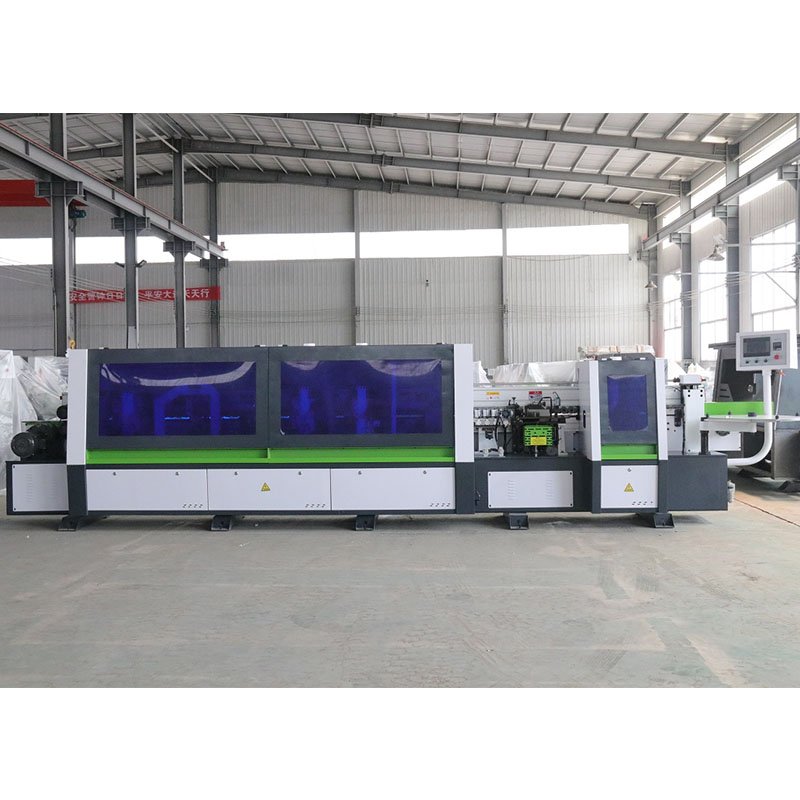

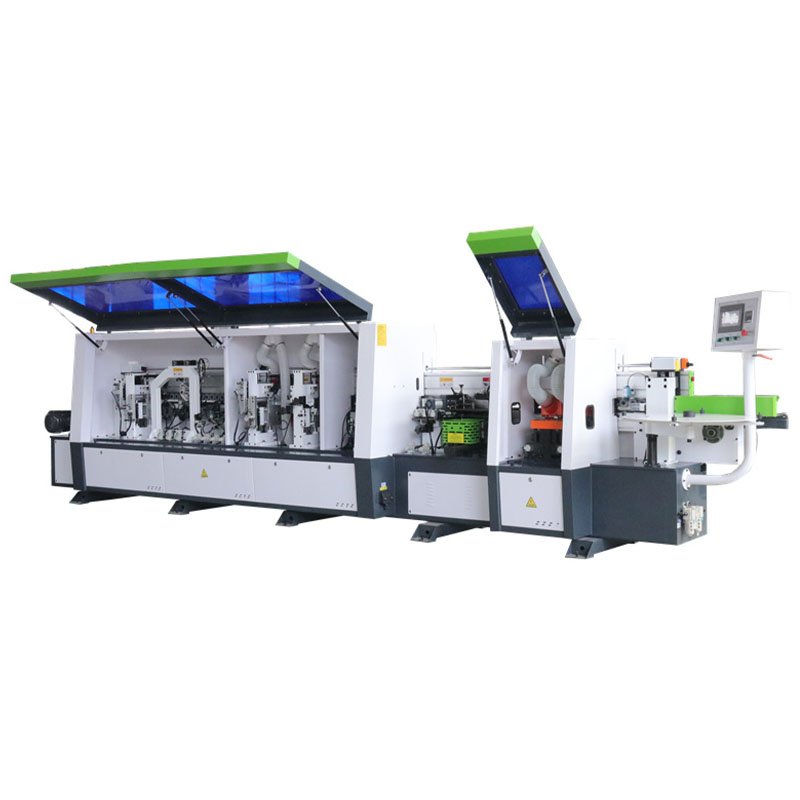

LW-468YJ Heavy-Duty Automatic edge banding machine

8 functions,

heavy-duty automatice edge banding machine,

use aluminium press beam and bigger parts,

more steady and long life.

share:

Inquire now
+
Inquiry
Product Details

LW-468YJ automation edge banding machine

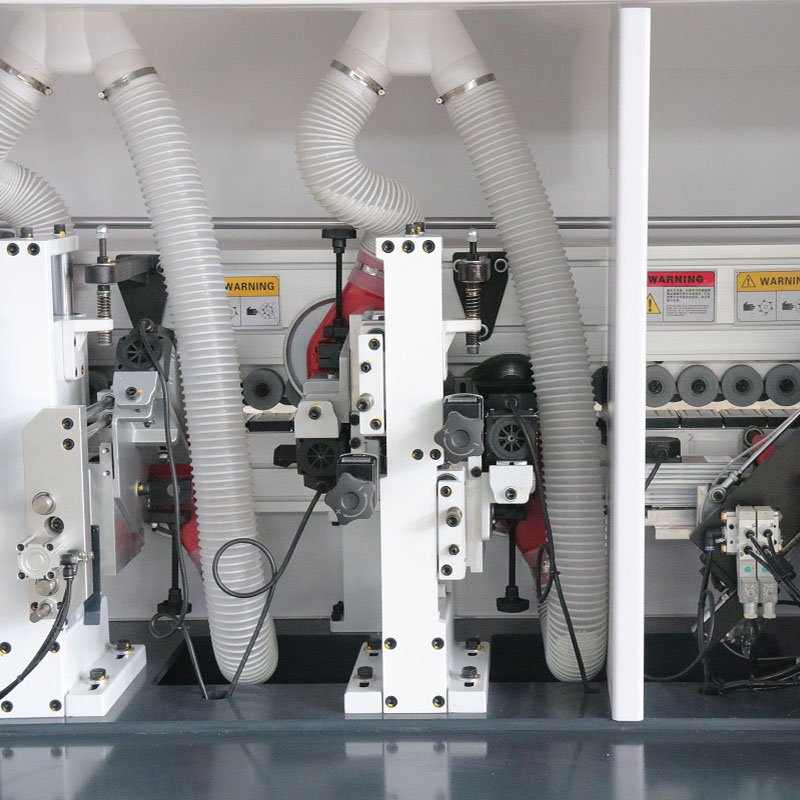

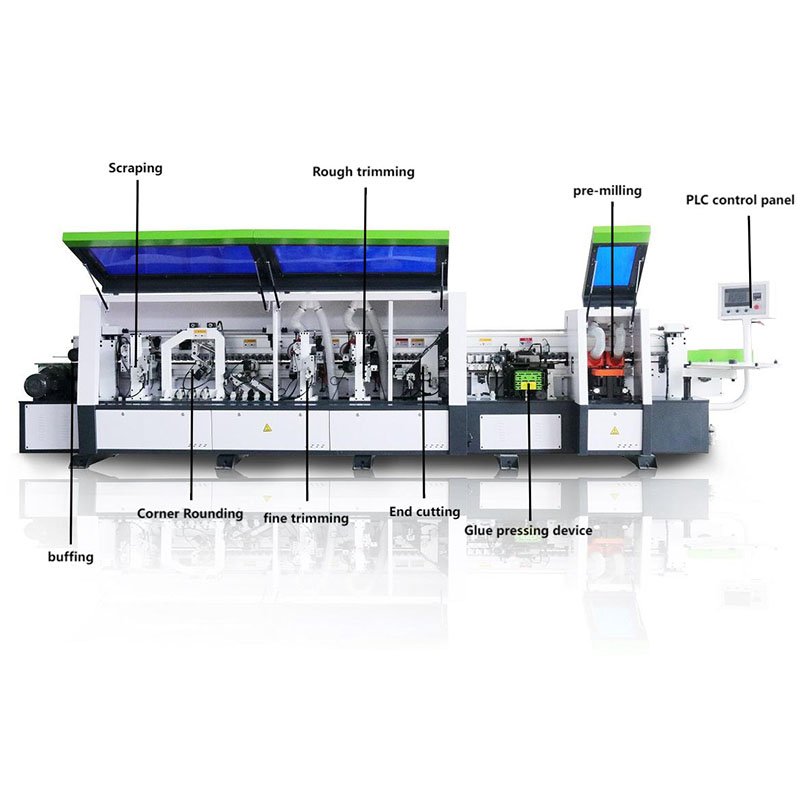

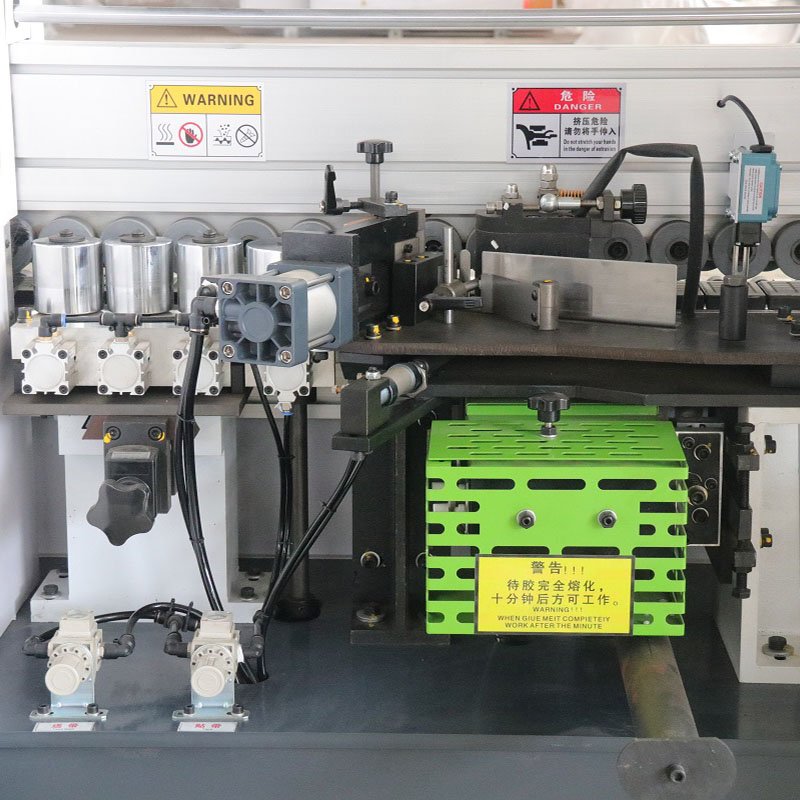

 function:Pre-milling, Gluing, End cutting, Fine trim, Rough trim, Corner Rounding, scraping, buffing,Pre-milling Dust blowing, directional wire blowing, cleaning device, etc.


model

LW-468YJ

glue pot heating

power:

1.9kw

outline

dimension:

6680*1100*1650mm

Gel          box transmission

power:

0.75kw

weight:

2.5t

Plate   preheating

power:

0.5kw

total power:

16.3kw

Conveyor

power

Motor

3.7kw

source:

380V 50Hz.

End cutting Motor

power:

0.37kw*2(12000r/min)

pressure:

0.7-0.9MPa

Fine trim Motor power

0.75kw*2(18000r/min)

Workpiece

length:

≥80mm

Rough trim Motor

power

0.75kw*2(18000r/min)

Workpiece

width:

≥150mm

buffing

power

Motor

0.18kw*2

Workpiece

thickness:

≤55mm

Corner   Rounding Motor power:

0.3kw*2(18000r/min)

Edge banding

thickness:

0.5-3mm

Pre-milling Motor

power

2.2kw*2(12000r/min)

Edge   sealing speed:

(20/22/24)m/min
