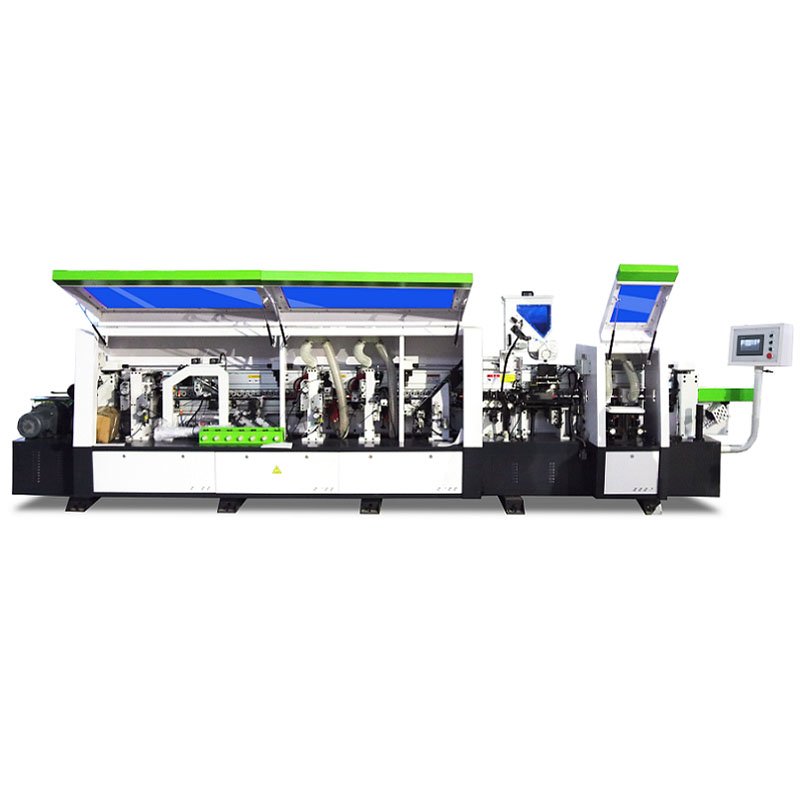

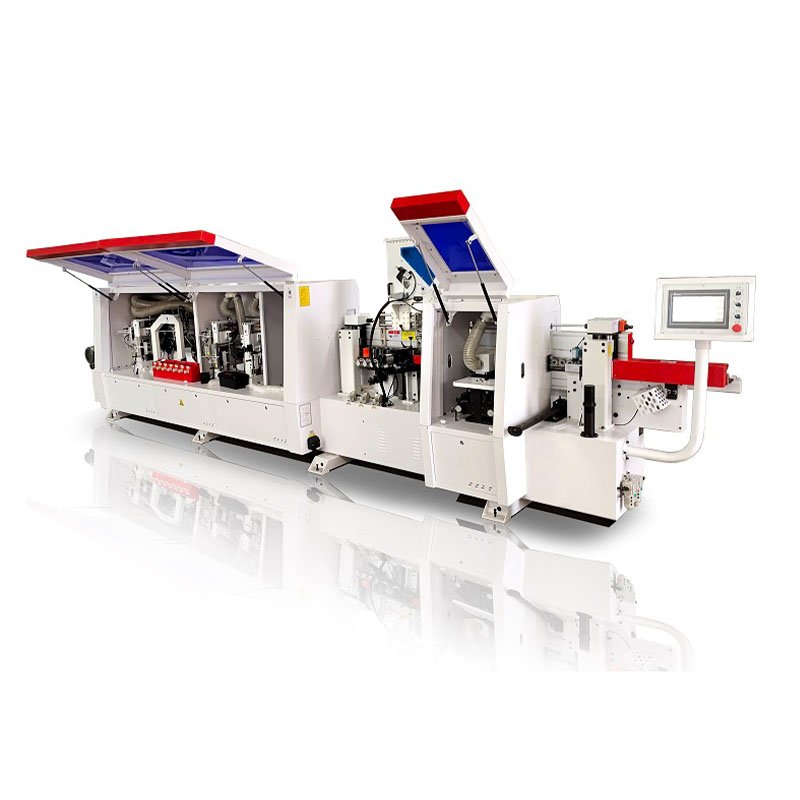

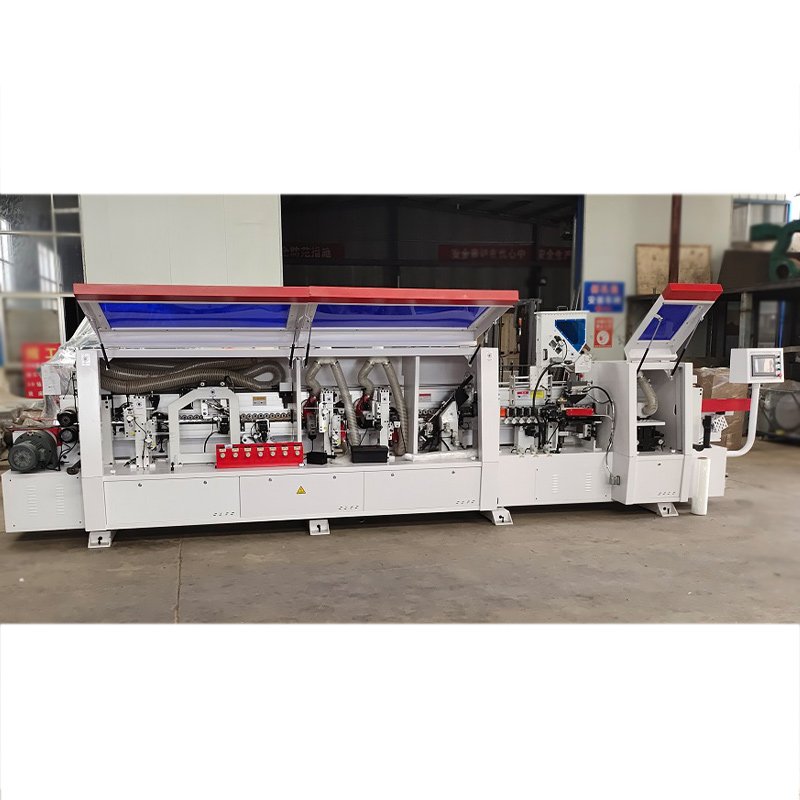

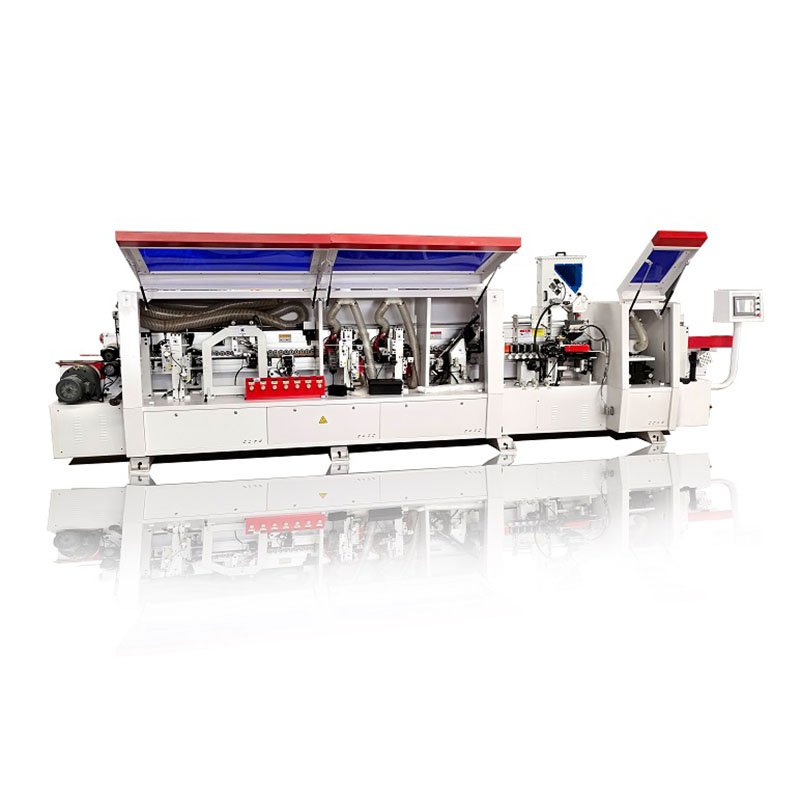

LW-468GK Heavy-Duty Automatic edge banding machine

heavy-duty automatic edge banding machine with upper glue pot and fast melting device.

8 functions,

bigger parts,

steady and long life.

share:

Inquire now
+
Inquiry
Product Details

LW-468GK automativ edge banding machine,

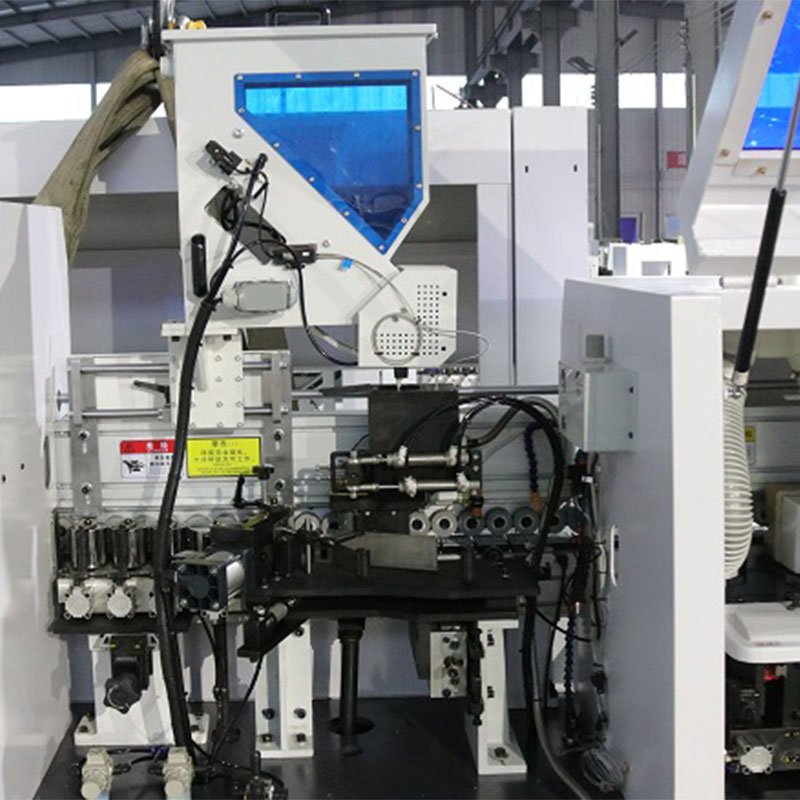

 function:Pre-milling, Quick melting glue pot, end cutting, Fine trim, Rough trim, Corner Rounding, scraping, buffing,


model

LW-468GK

glue pot heating

power:

1.6kw+1.6kw

outline

dimension:

6680*1100*1650mm

Gel          box transmission

power

0.75kw

weight:

2.5t

Plate   preheating

power:

0.5kw

total power:

17.6kw

Conveyor

power:

Motor

3.7kw

source:

380V 50Hz.

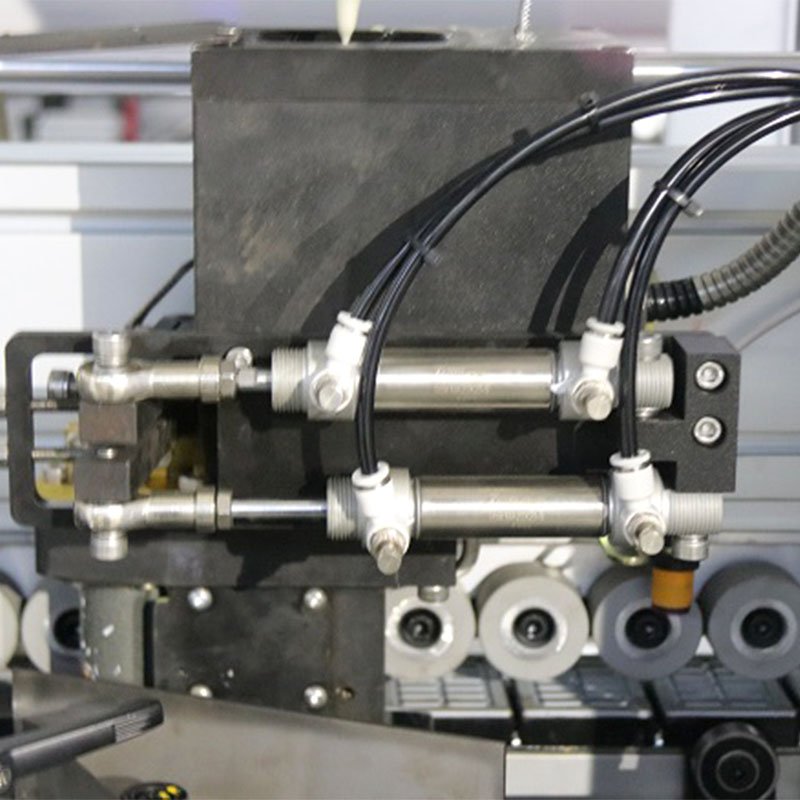

End cutting Motor

power:

0.37kw*2(12000r/min)

pressure:

0.7-0.9MPa

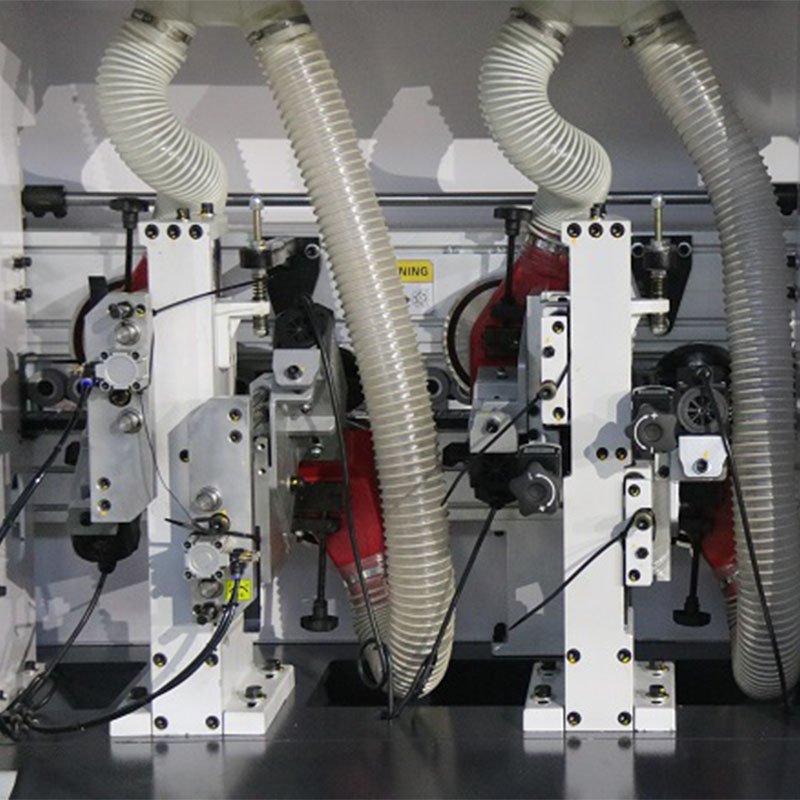

Fine trim   Motor

power

0.75kw*2(18000r/min)

Workpiece

length:

≥80mm

Rough trim Motor

power

0.75kw*2(18000r/min)

Workpiece

width:

≥150mm

buffing    Motor

power

0.18kw*2

Workpiece

thickness:

≤55mm

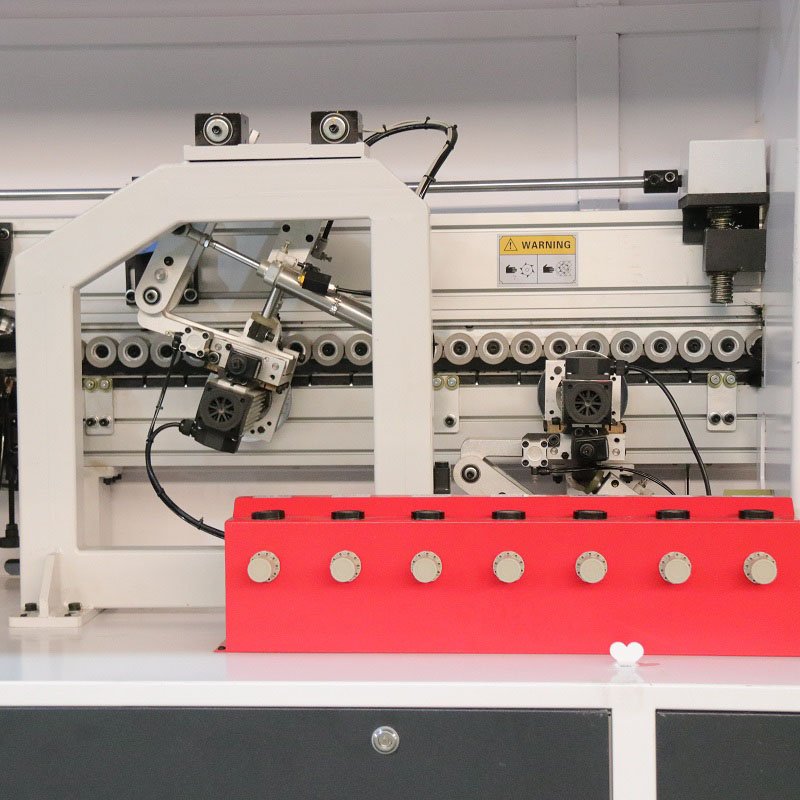

Corner   Rounding

Motor power:

0.3kw*2(18000r/min)

Edge banding thickness:

0.4-3mm

Pre-milling Motor

power:

2.2kw*2(12000r/min)

Edge   sealing

speed

(20/22/24)m/min
