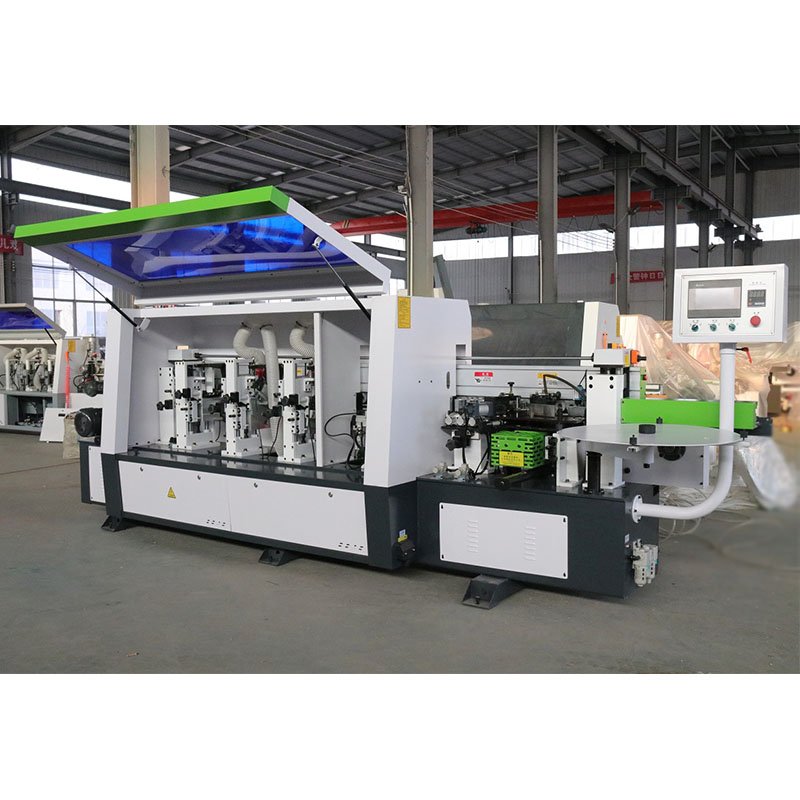

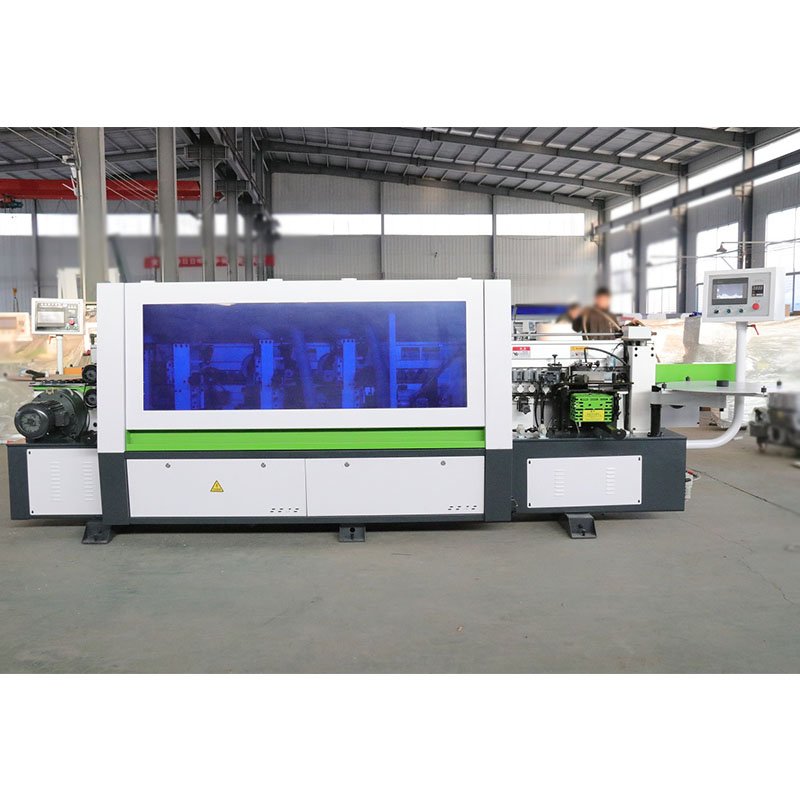

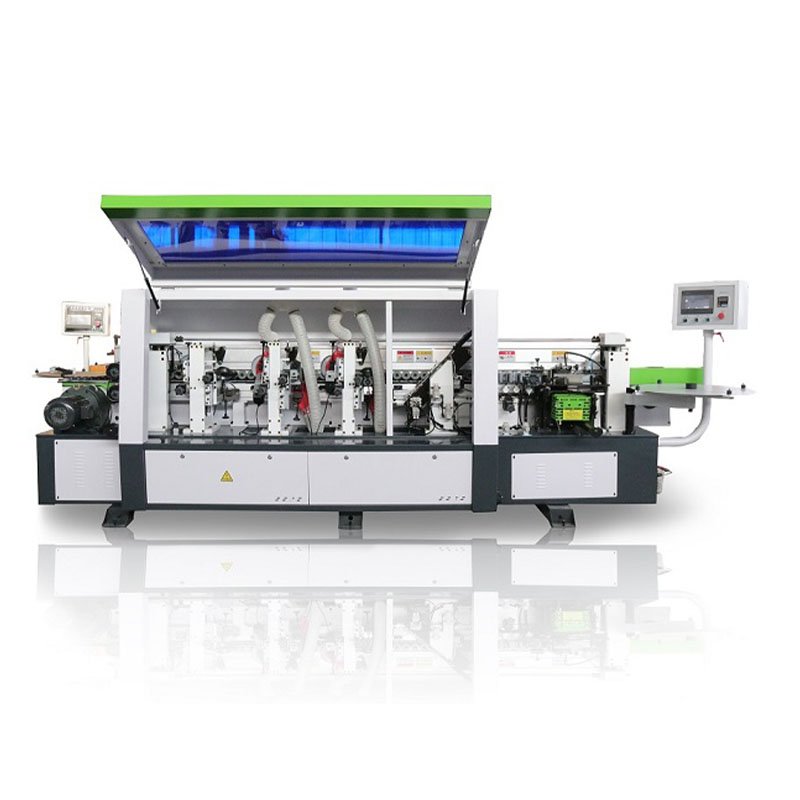

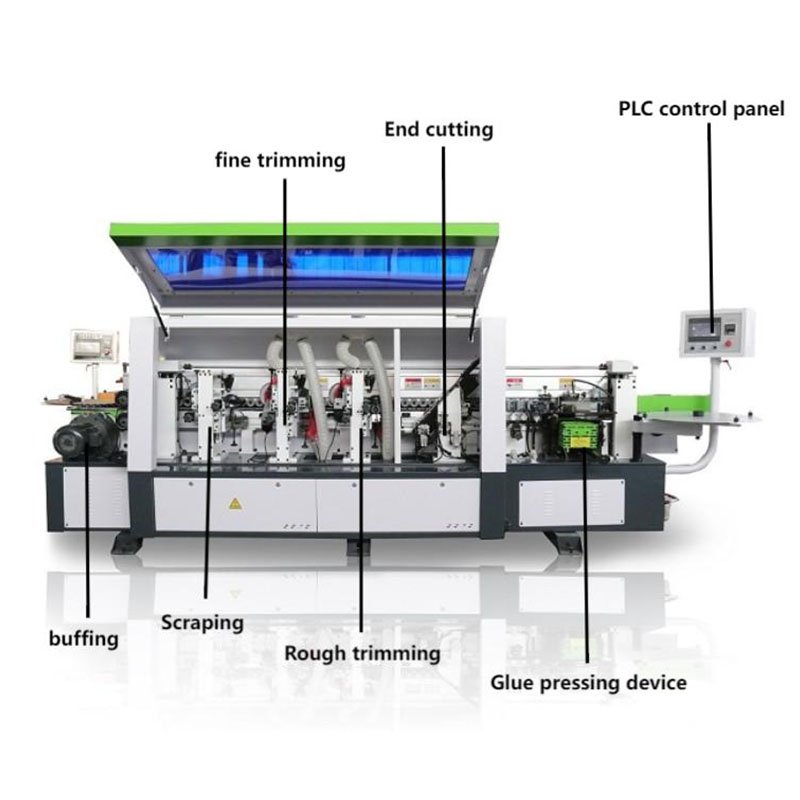

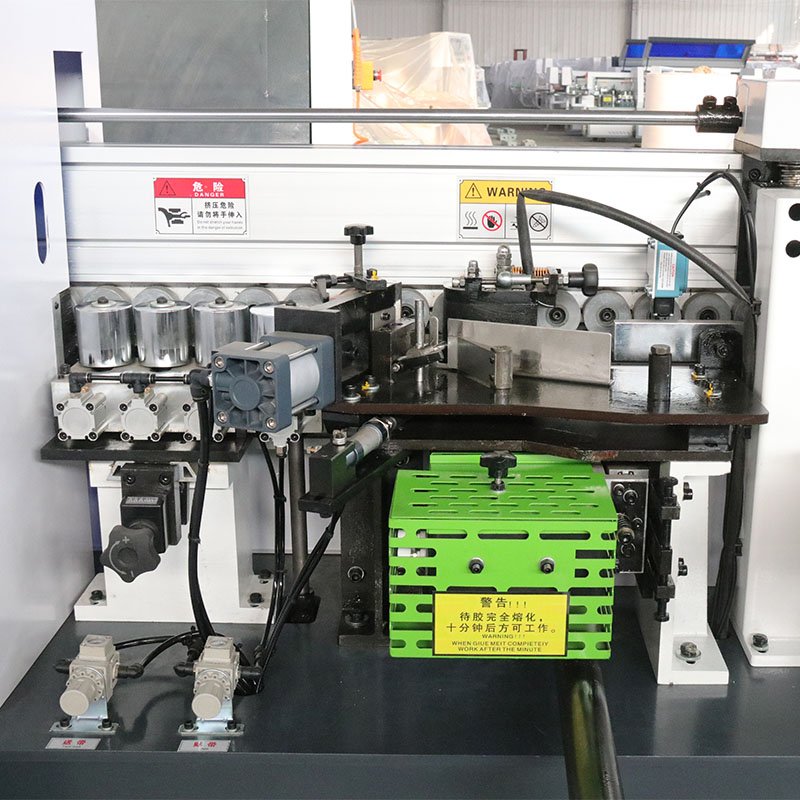

heavy duty type automatic edge banding machine, 6 functions, big parts, steady and long life

outline

dimension:

4300*1000*1650mm

Transmission

power of the glue pot:

0.75kw

weight:

1.7t

Preheating power of the plate:

0.5kw

total power:

9.8kw

Conveyor Motor

power:

2.2kw

source:

380V 50Hz.

End cutting Motor power:

0.37kw*2(12000r/min)

pressure

0.7-0.8MPa

Fine trim Motor power:

0.75kw*2(18000r/min)

Workpiece

length:

≥80mm

Rough trim Motor

power:

0.75kw*2(18000r/min)

Workpiece

width:

≥150mm

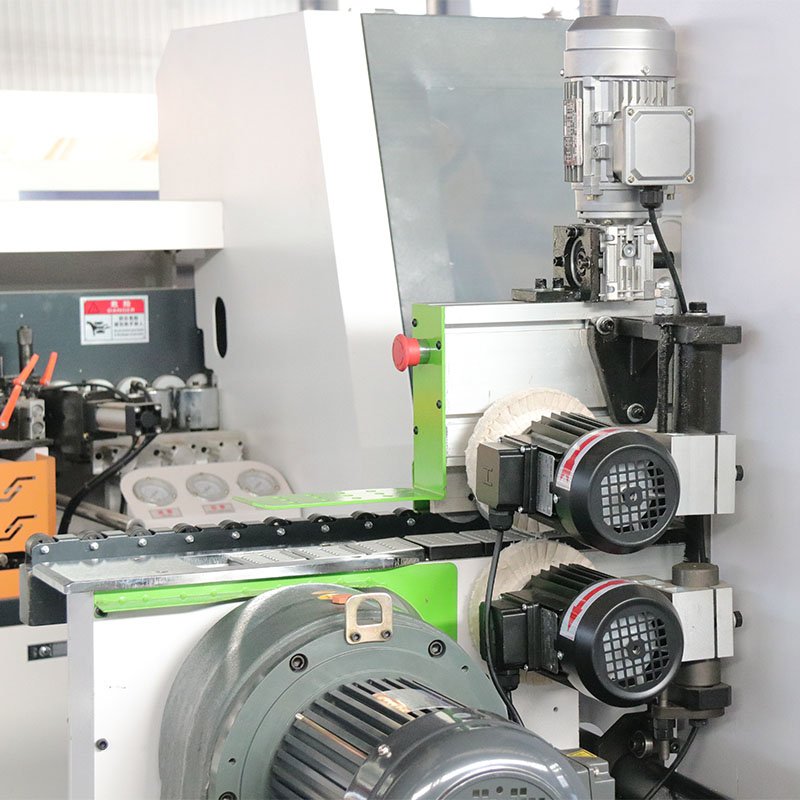

buffing  Motor

power:

0.18kw*2

Workpiece

thickness:

≤55mm

Edge   banding thickness:

0.4-3mm

Edge   sealing speed:

(20-22-24)m/mir
