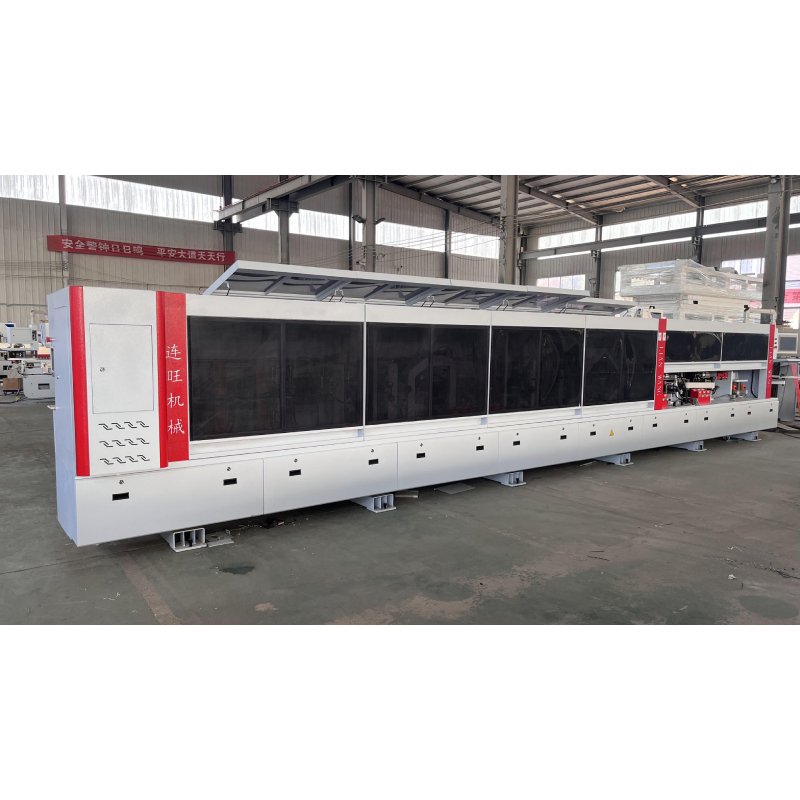

13 functions,

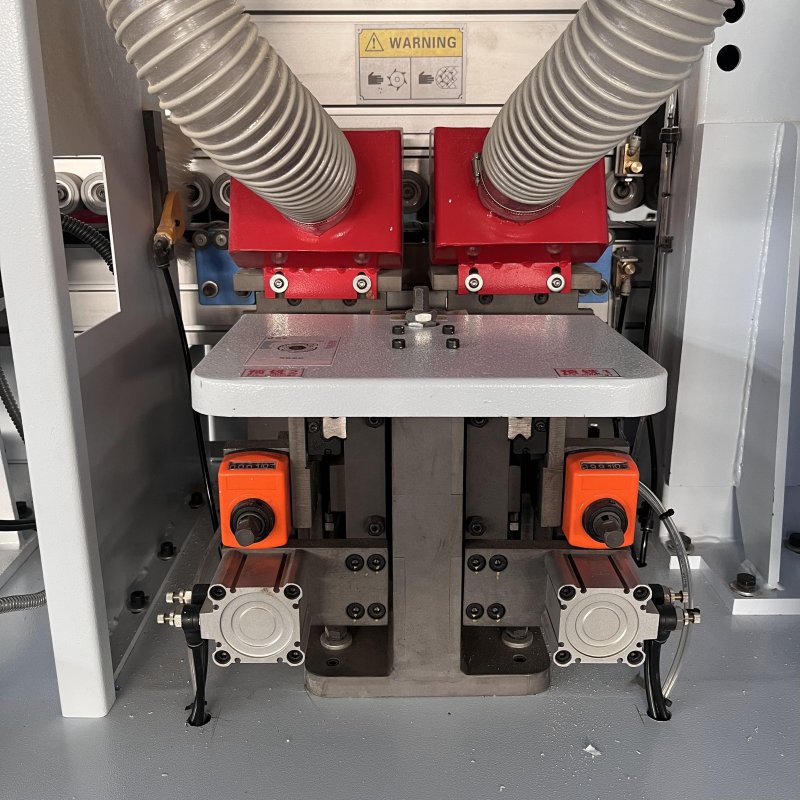

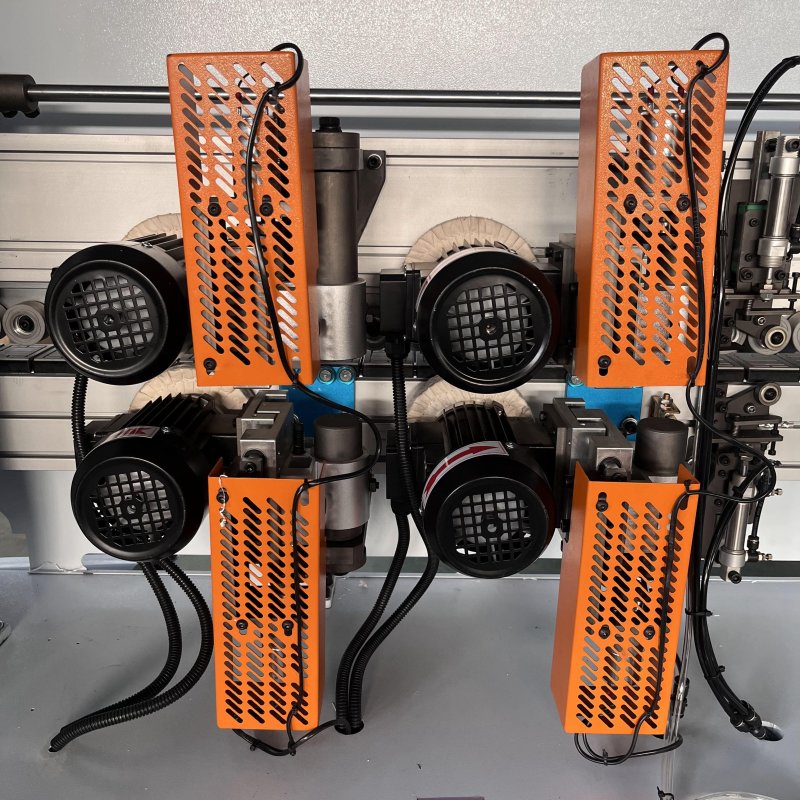

pre milling, glueing, double guide rail end cutting, rough trimming, fine trimming, corner rounding, scraping1, scraping2, scraping3, cleaning, buffing1, buffing2.

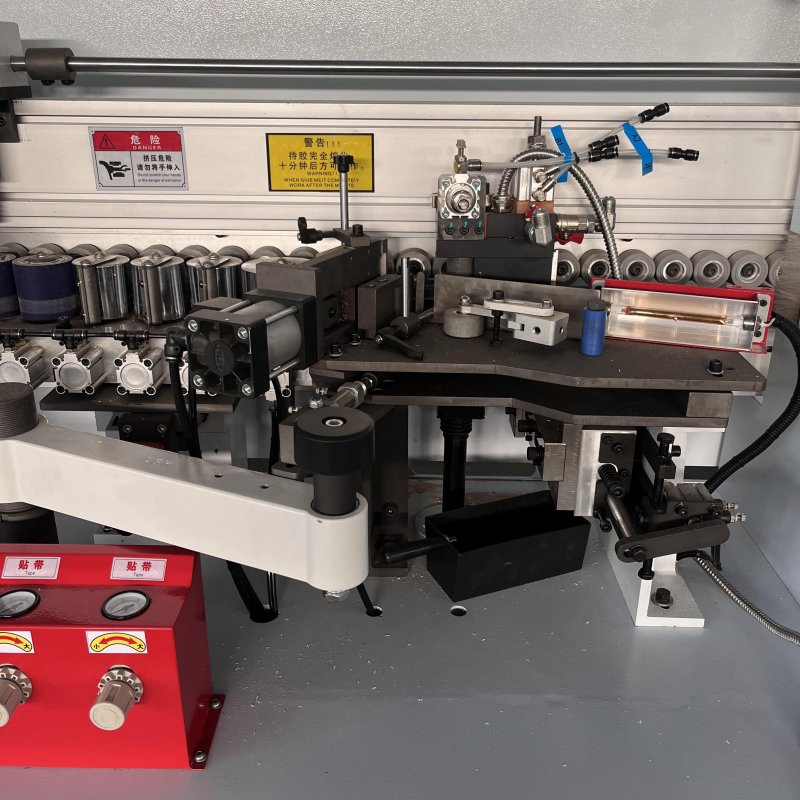

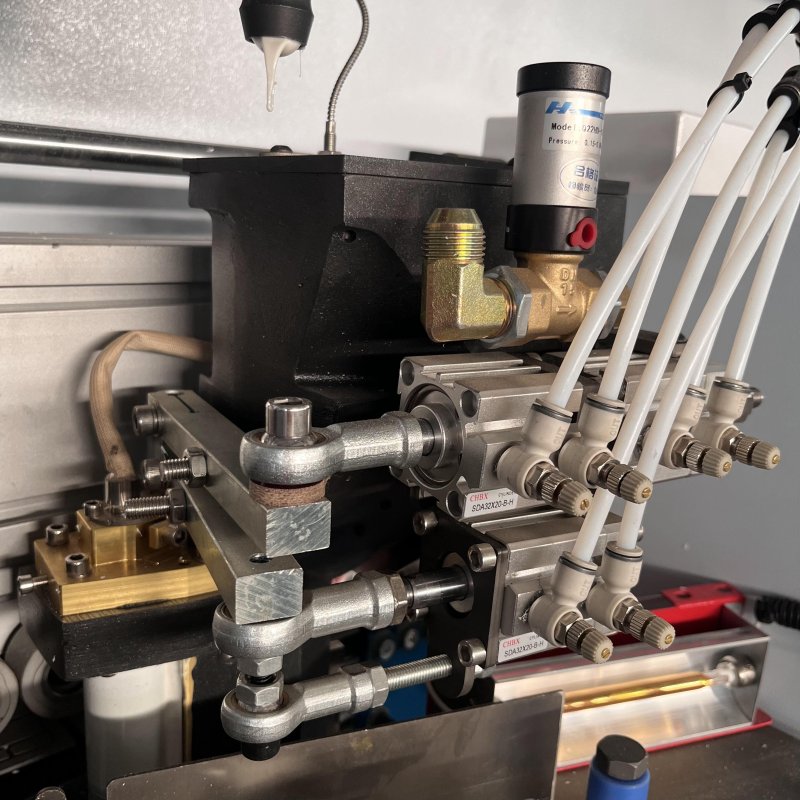

with PUR glue machine.
it is hot selling in China market.
model: | LW-868PUR | glue pot heating power: | 4.5kw+1.6kw+1.9kw | |
out size: | 10200*1000*1650mm | Gel box transmission power: | 0.75kw*2 | |
weight: | 3.75t | Plate preheating power: | 0.8kw | |
total power: | 26.6kw | Conveyor Motor power: | 5.5kw | |
voltalge: | 380V 50Hz. | End cutting Motor power: | 0.37kw*2(12000r/min) | |
pressure: | 0.7-0.9MPa | flat trimming Motor power: | 0.75kw*2(18000r/min) | |
Workpiece length: | ≥80mm | sloping trimming Motor power: | 0.75kw*2(18000r/min) | |
Workpiece width: | ≥150mm | buffing Motor power: | 0.18kw*4 | |
Workpiece thickness: | ≤55mm | Corner Rounding Motor power: | 0.3kw*4(18000r/min) | |
Edge banding thickness: | 0.4-3mm | Pre-milling Motor power: | 2.2kw*2(12000r/min) | |
Edge sealing speed: | (20-22-28)m/min |
