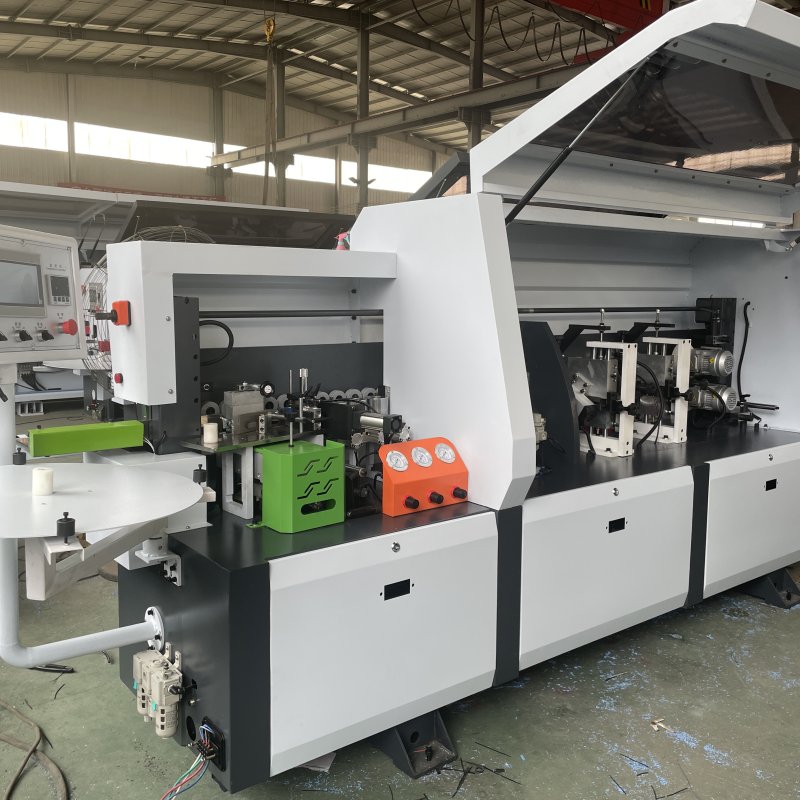

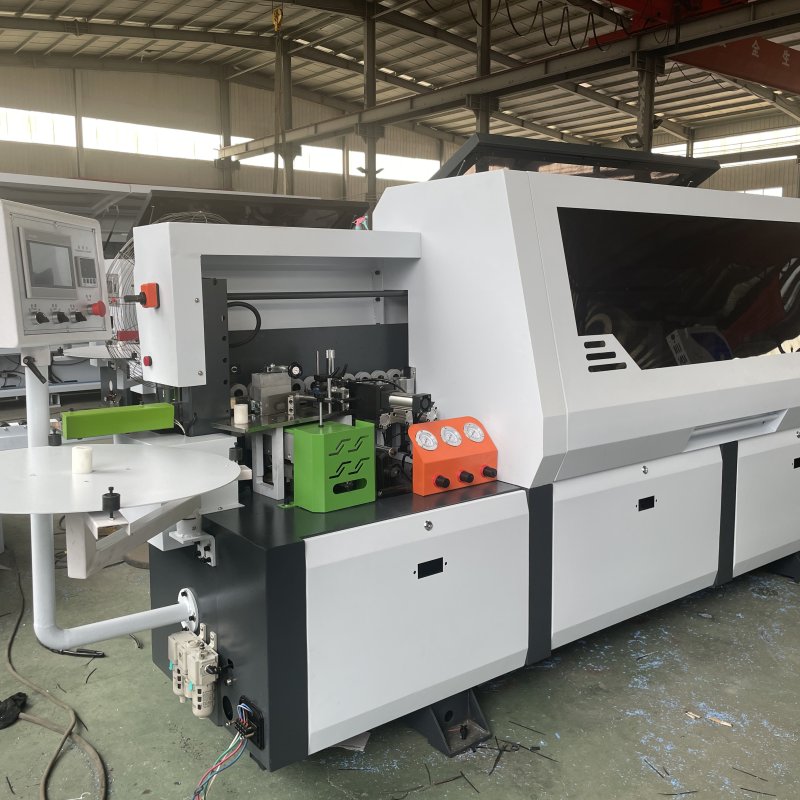

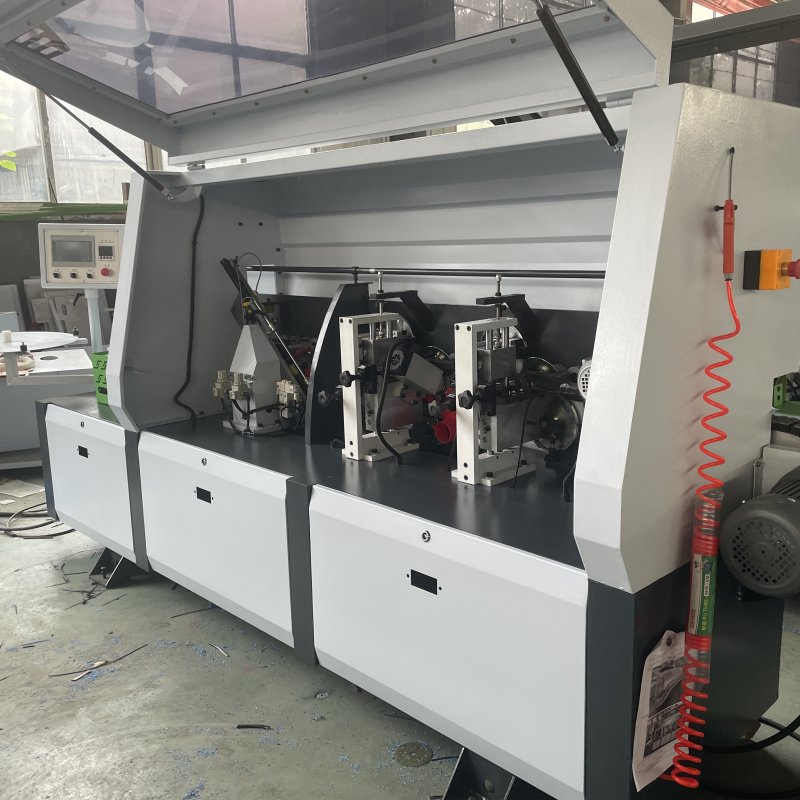

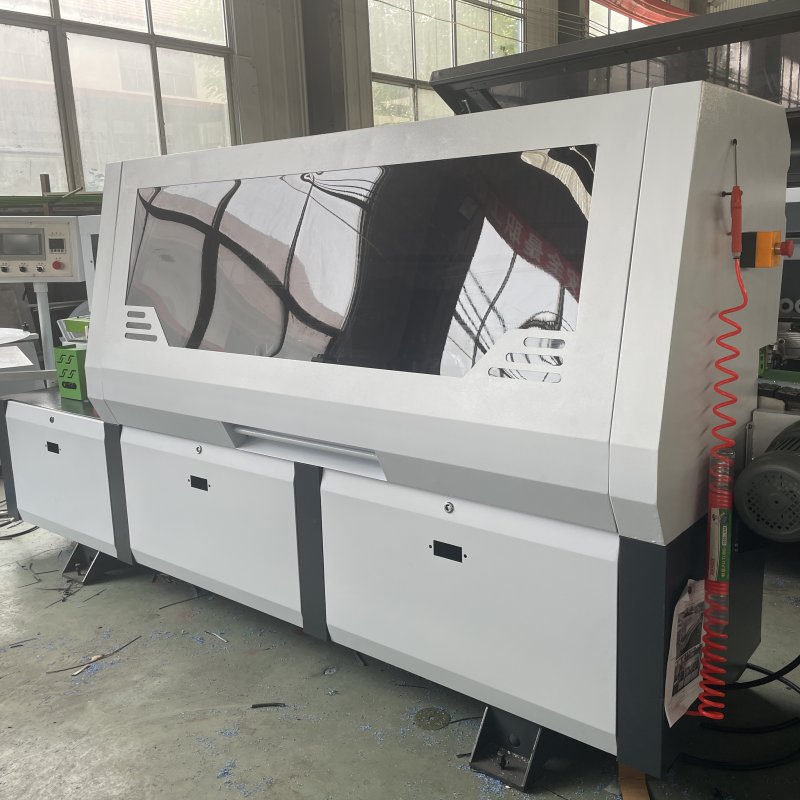

LW-368A Automatic high-end edge banding machine 5 functions

LW-368-A The functions of automatic single-trim edge banding machine: Lower glue pot, Endcutting, Fine trimming, Scraping and Polishing;

Compact five-function edge banding machine, suitable for small factories.

share:

Inquire now
+
Inquiry
Product Details

Machine type

LW-368-A


Glue box heating power

1.5kw

Dimension

3700*900*1550mm


Glue box transmission power

0.37kw

Weight

0.8T


Plate preheating power

0.25kw

Total power

6.22kw


Conveyer motor power

1.5kw

Voltage

380V  50Hz.


Endcutting motor power

0.37kw*212000r/min

Air pressure

0.6-0.8MPa


Fine trimming motor power

0.75kw*218000r/min

Sheet Length

80mm


Polishing motor power

0.18kw*2

Sheet Width

40mm



Sheet Thickness

12-55mm


Edge Band Thickness

0.4-3mm


Feed Rate

16m/min
