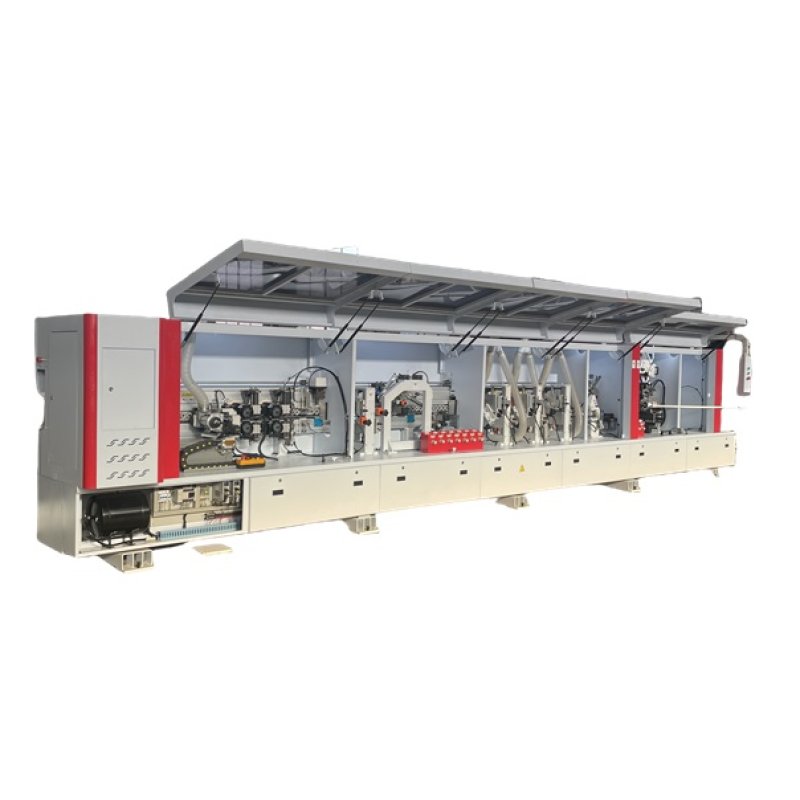

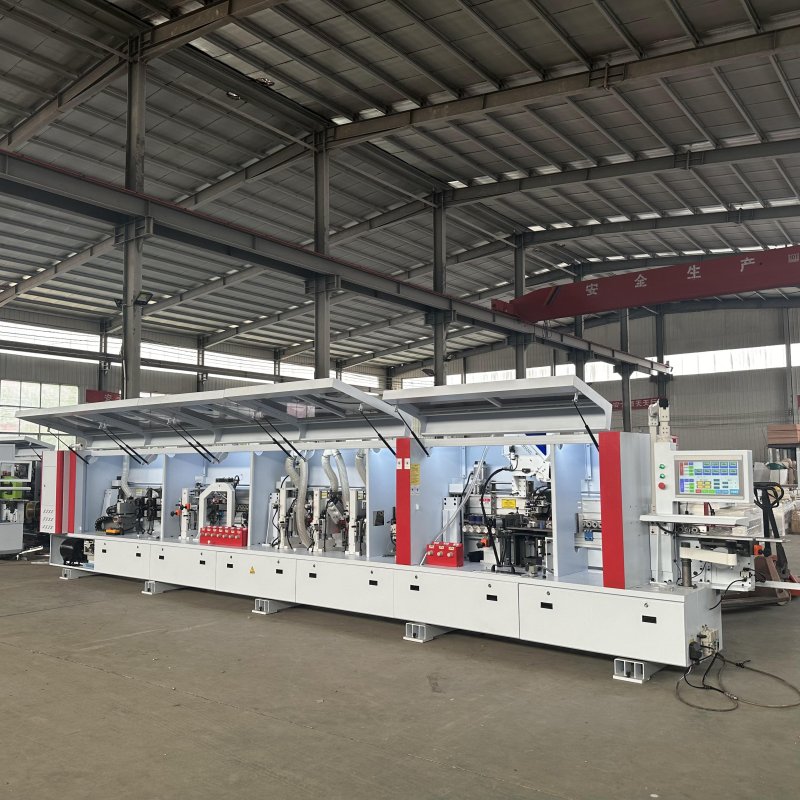

LW-588 edge banding machine with side hole drilling

LW-588 edge banding machine with side hole drilling

share:

Inquire now
+
Inquiry
Product Details

LW-588high speed automatic edge banding machine with side hole drilling function.

model

LW-588


glue pot heating power

1.6kw+1.6kw

out size

8000*1000*1650mm


Gel box transmission power

0.75kw

weight

2.76t


Plate preheating power

0.5kw

total power

17.98kw


Conveyor Motor power

3.7kw

voltalge

380V  50Hz.


End cutting Motor power

0.37kw*212000r/min

pressure

0.7-0.9MPa


flat trimming Motor power

0.75kw*218000r/min

Workpiece length

80mm


sloping trimming Motor power

0.75kw*218000r/min

Workpiece width

150mm


buffing Motor power

0.18kw*4

Workpiece thickness

55mm


Corner Rounding Motor power

0.3kw*218000r/min

Edge banding thickness

0.4-3mm


Pre-milling Motor power

2.2kw*212000r/min

Edge sealing speed

20-22-24m/min
